Component Configuration
Main Board
LED Relay energized
USB Program update
Program update switch
LED Power indicator
LED Communication
LED Active Alarm LED Unit Status
Jumper JP501 RS485

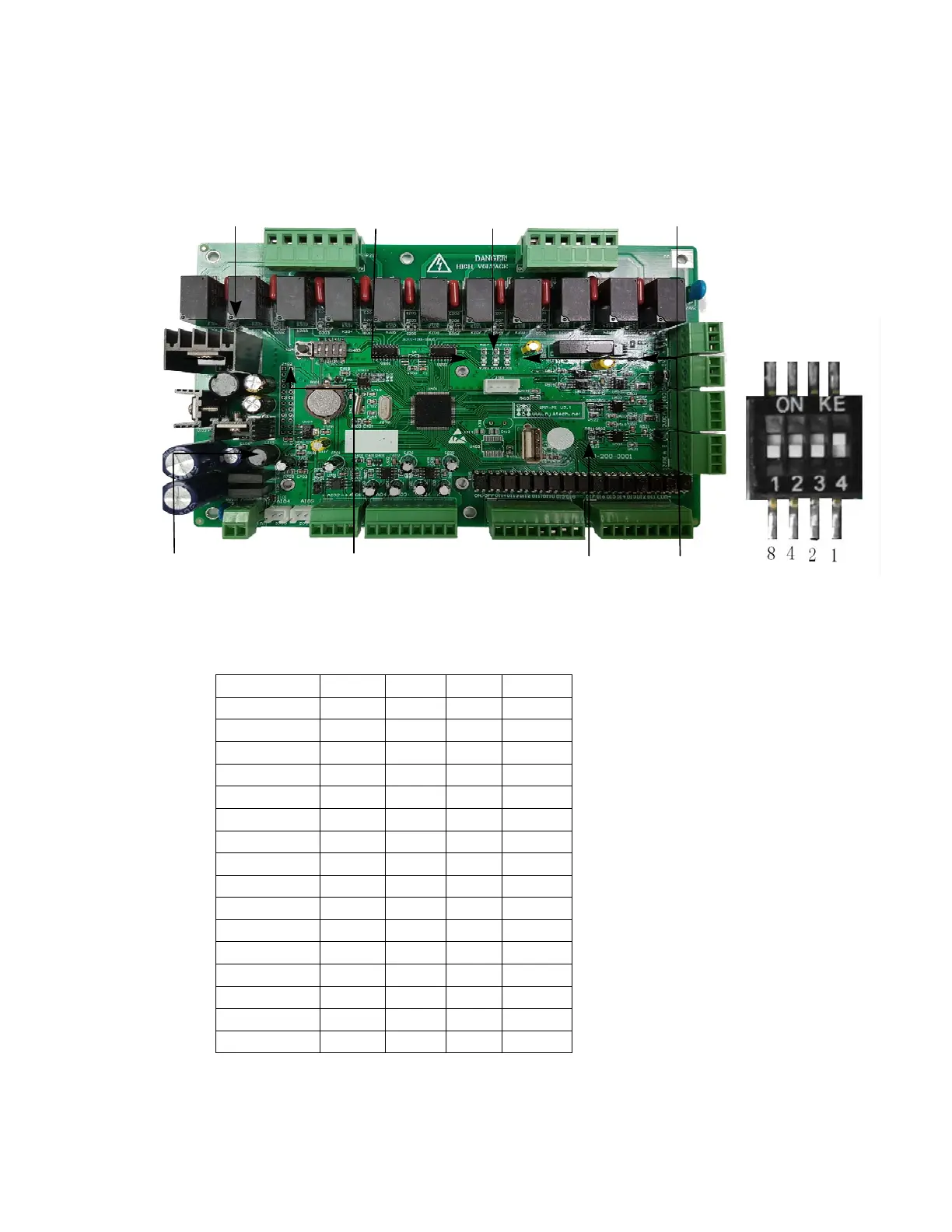

Fig.1 Main Board
This is for CAN ID only used for co-work.
CANBUS ID 1 2 3 4
1 0 0 0 0
2 0 0 0 1
3 0 0 1 0
4 0 0 1 1
5 0 1 0 0
6 0 1 0 1
7 0 1 1 0
8 0 1 1 1
9 1 0 0 0
10 1 0 0 1
11 1 0 1 0
12 1 0 1 1
13 1 1 0 0
14 1 1 0 1
15 1 1 1 0
16 1 1 1 1
Four bit code can be set to address ID is 1~16, a total of 16 different ID units.
