Advanced M52 Microprocessor User's Guide
ADVANCED M52UMCT2019 COLOR
38
Selected board and function

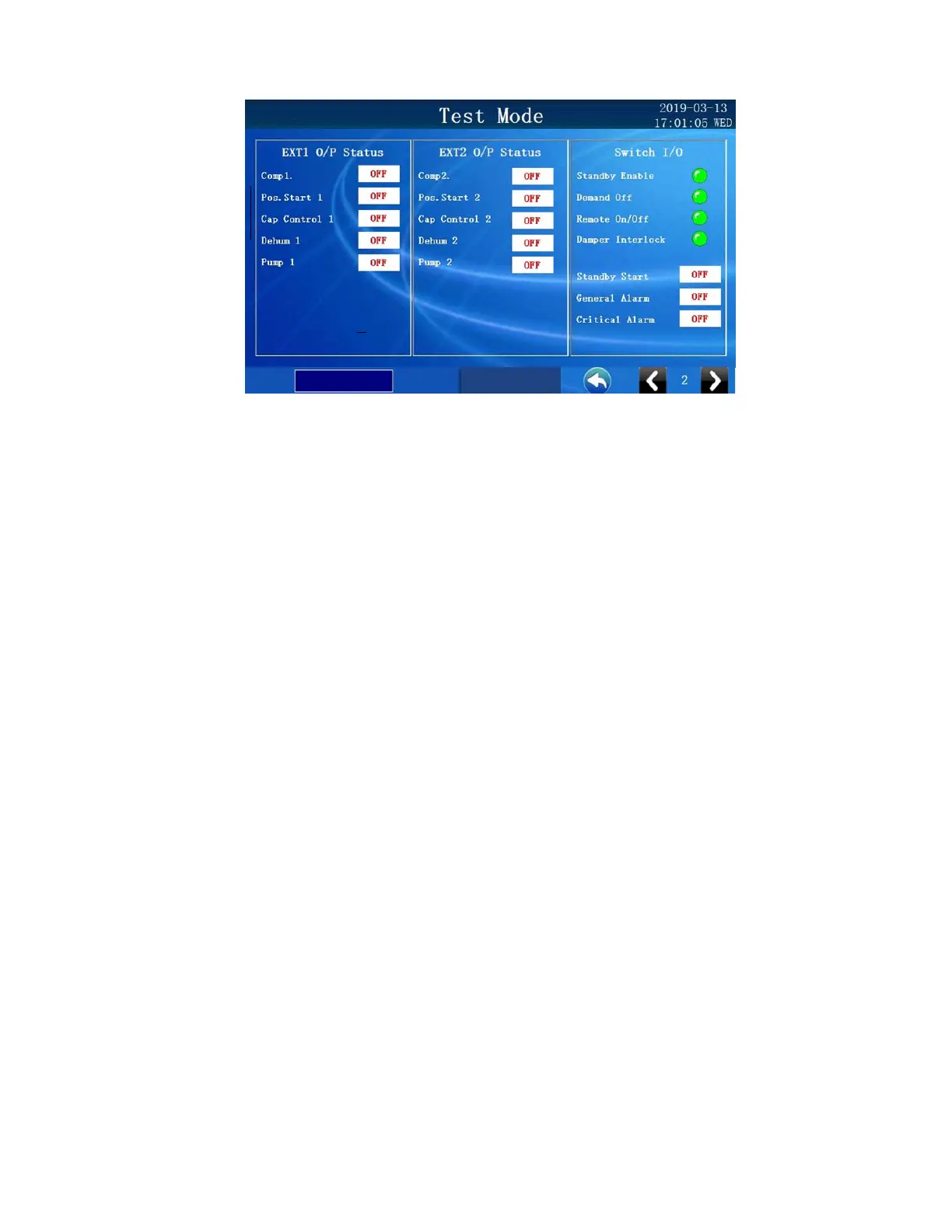

Under the Microprocessor board diagnostic page, you can:
- Review the status of the switched inputs on the Microprocessor board.
- Review the status of the switched outputs on the Microprocessor board, and override
control of the outputs by touching the white bock of the item you wish to change
selector.
- Review the status of the analogue inputs and outputs on the Microprocessor boards, and
override control of the outputs by placing control in “Manual” by touching the item in
the white box and the status will switch.
To Next Page
