CLIVET ELFOControl2 - HEAT PUMP; CHANGE OF SET POINT, FROM FIXED TO COMPENSATED; Compensated supply water set point; MODIFICATION OF 4 POINTS

Page 12
HEAT PUMP
3 - Compensated supply water set point:
• set the compensation curve that corrects the water set point value,
depending on the outdoor air temperature value.
CHANGE OF SET POINT, FROM FIXED TO
COMPENSATED

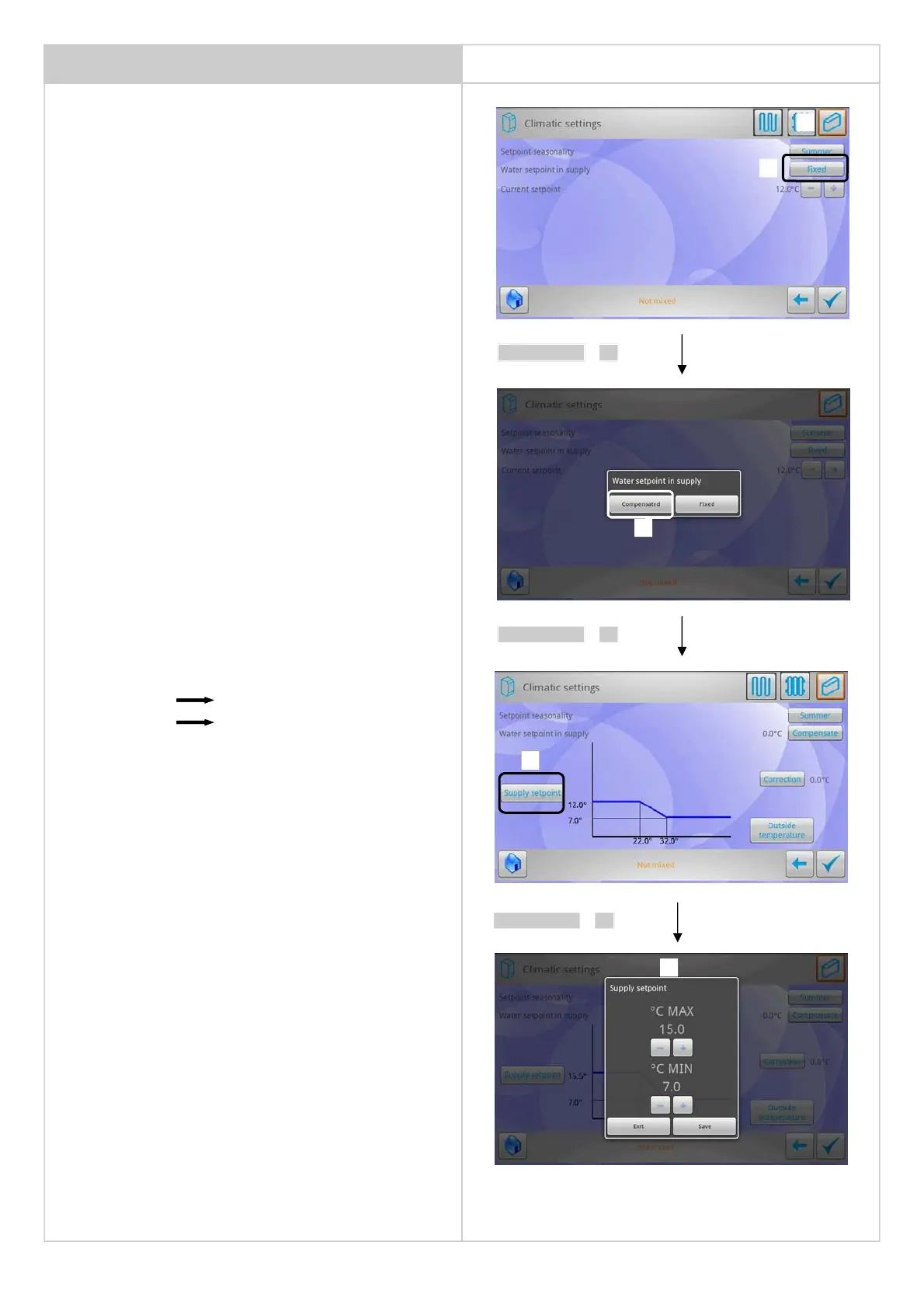

1 - Select the single circuit to customise the set point
2 - Select "fix"
2
3
select 2
select 3
Example
Outdoor air >= 32°C
supply water set point = 7°C
Outdoor air <= 22°C
supply water set point = 12°C
The curve of the compensated set point can be modified in two ways:
• modify 4 points:
the curve is modified, in detail,
2 supply set point sections
2 outdoor temperature sections
• rapid modification:
raises or lowers the entire curve (CORRECTION)
MODIFICATION OF 4 POINTS
MODIFICATION OF SUPPLY SET POINT
4 - Select
5 - Set the required values:
Max 15°C
Min. 7°C
5
4
select 4
