SYSTEM COMPONENT STATUS

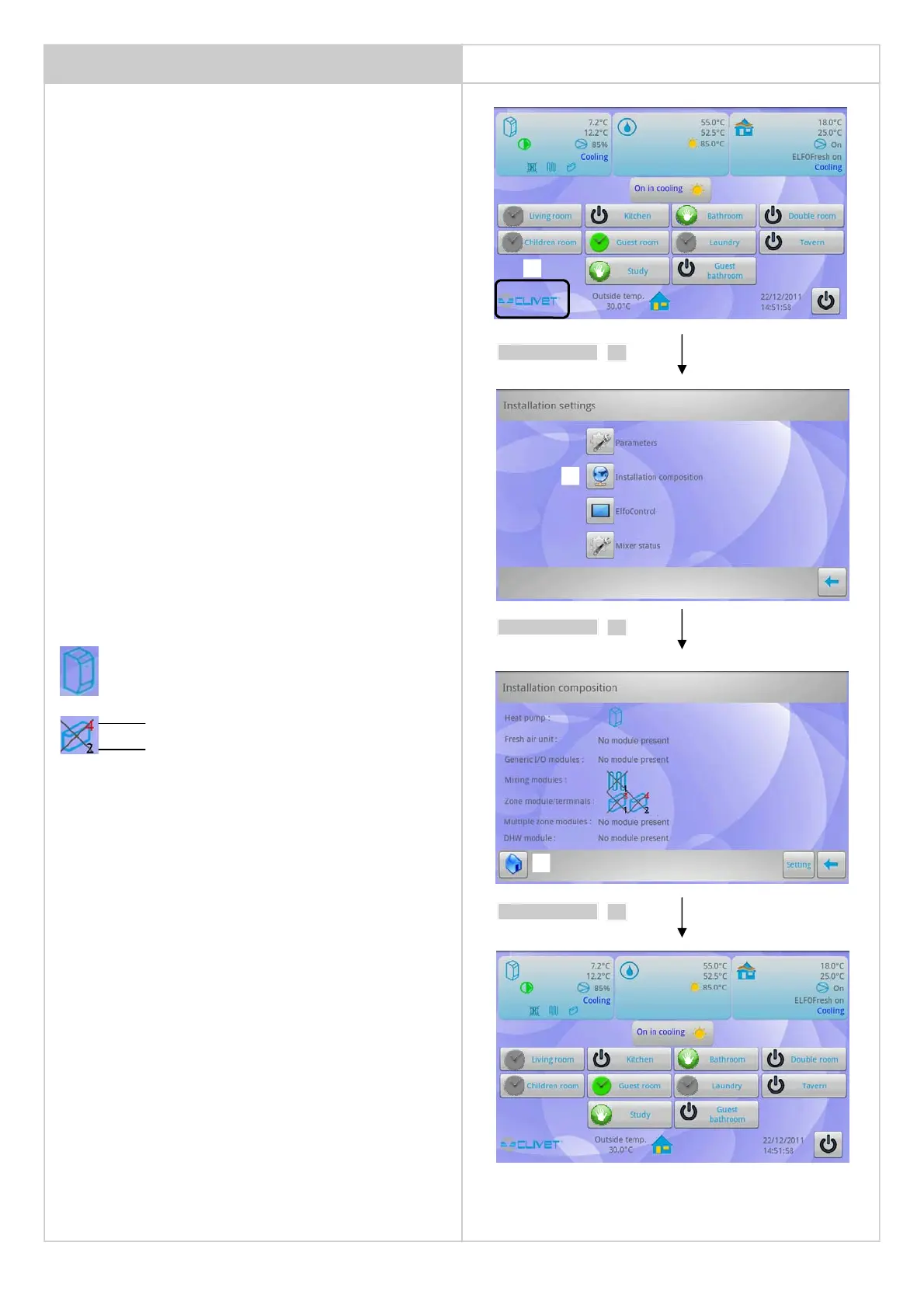

VERIFICATION OF THE COMPONENT COMMUNICATION
Once the system is restarted and the new configuration loaded, verify
the serial communication.
For a correct verification, wait 5/10 minutes from the first restart, this
period can vary depending on the composition of the system.
select
2
select
3
Communication OK
1
select
1
2
A - Belonging to area: 4
B - Terminal number: 2
The unit does not communicate with ELFOControl
2
, an alarm is notified
"communication with interrupted device".
If ELFOControl
2
does not communicate with Ethernet/485 converter,
an alarm "communication interrupted with all the devices" is notified.
A
B
Communication OFF
3
