CLIVET ELFOControl2 - SYSTEM COMPONENT STATUS; Zone Element and Mixer Status

Page 70
SYSTEM COMPONENT STATUS
select
2
select
3
1
select
1
2
3
H
I
j
A
B
C
D
E
F
G
select
4
4
2
1
STATUS OF THE MIXERS
verification of the operation status of the installed mixing circulators.
Drag area “2” upwards.

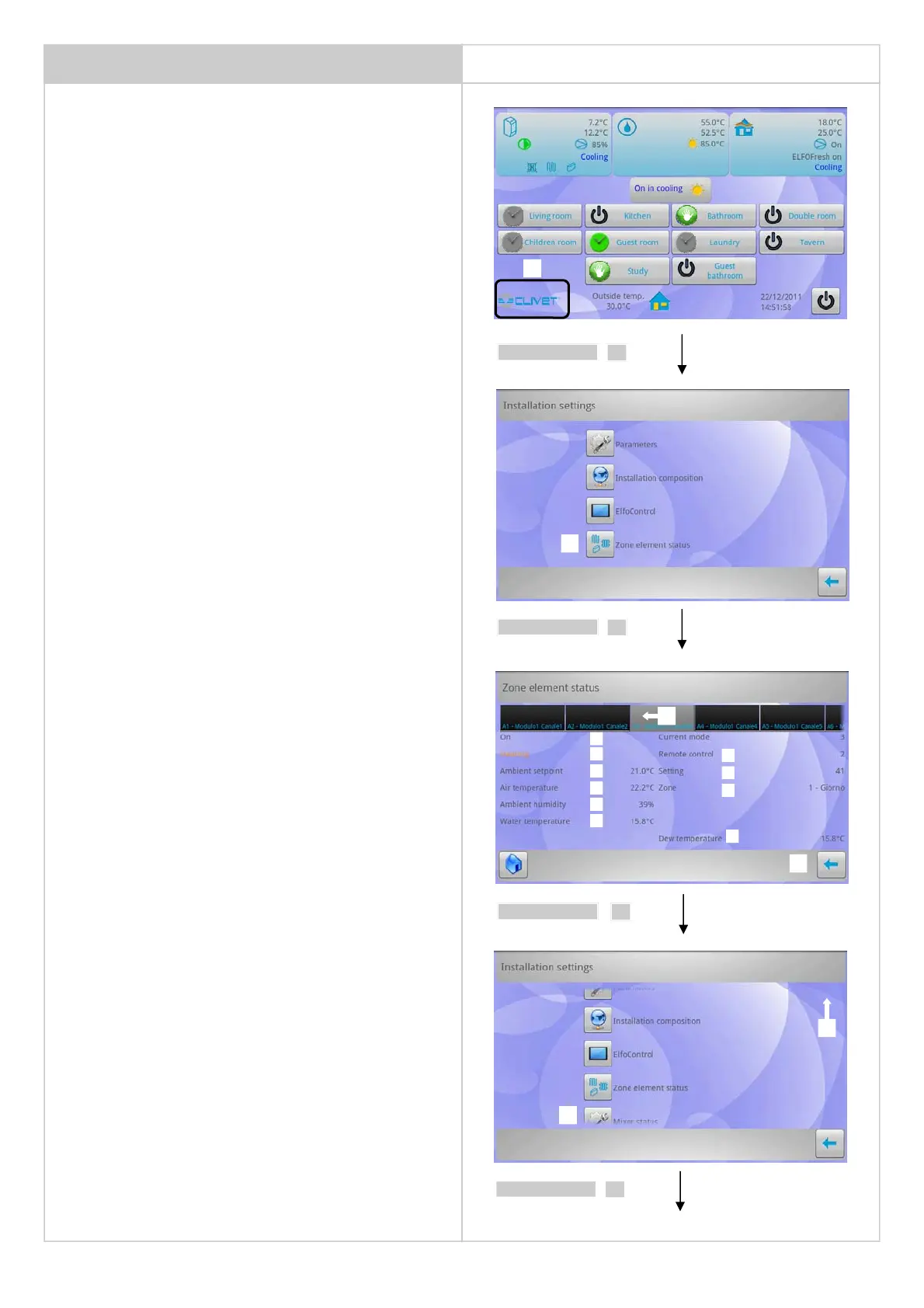

ZONE ELEMENTS STATUS
Check of the installed radiant / fancoil / zone modules operation status.
For reference only:
A. Status on / off
B. Heating/cooling
C. Ambient setpoint °C
D. Air temperature °C
E. Ambient humidity %
F. Water temperature °C
G. Remote control
H. Configuration
I. Zone
J Dew temperature °C
To see all the components, drag area “1” to the left.
