Page 29
ELFOCONTROL
2
Led Function
A Bus RS485
OFF = none communication
- Irregular flashing: communication RS485 side in progress, depending on the speed it is possible to understand
if is present or not the replay from the network nodes:
- flashing immediately followed by another flashing: a node has replied.
- flashing, pause, and another flashing: request by the converter but no reply from (one or more) nodes.
B Ethernet
- Slow flashing: Indicates that there is no Ethernet side connection (about 4 seconds between the LED lighting
on and the next).
- Fix led on / Fix LED off : Ethernet side connection, no communication in progress.
- Irregular flashing: Ethernet side connection, communication Ethernet side in progress.
C
Power presence: Led ON device OK
Convertitore Ethernet/485

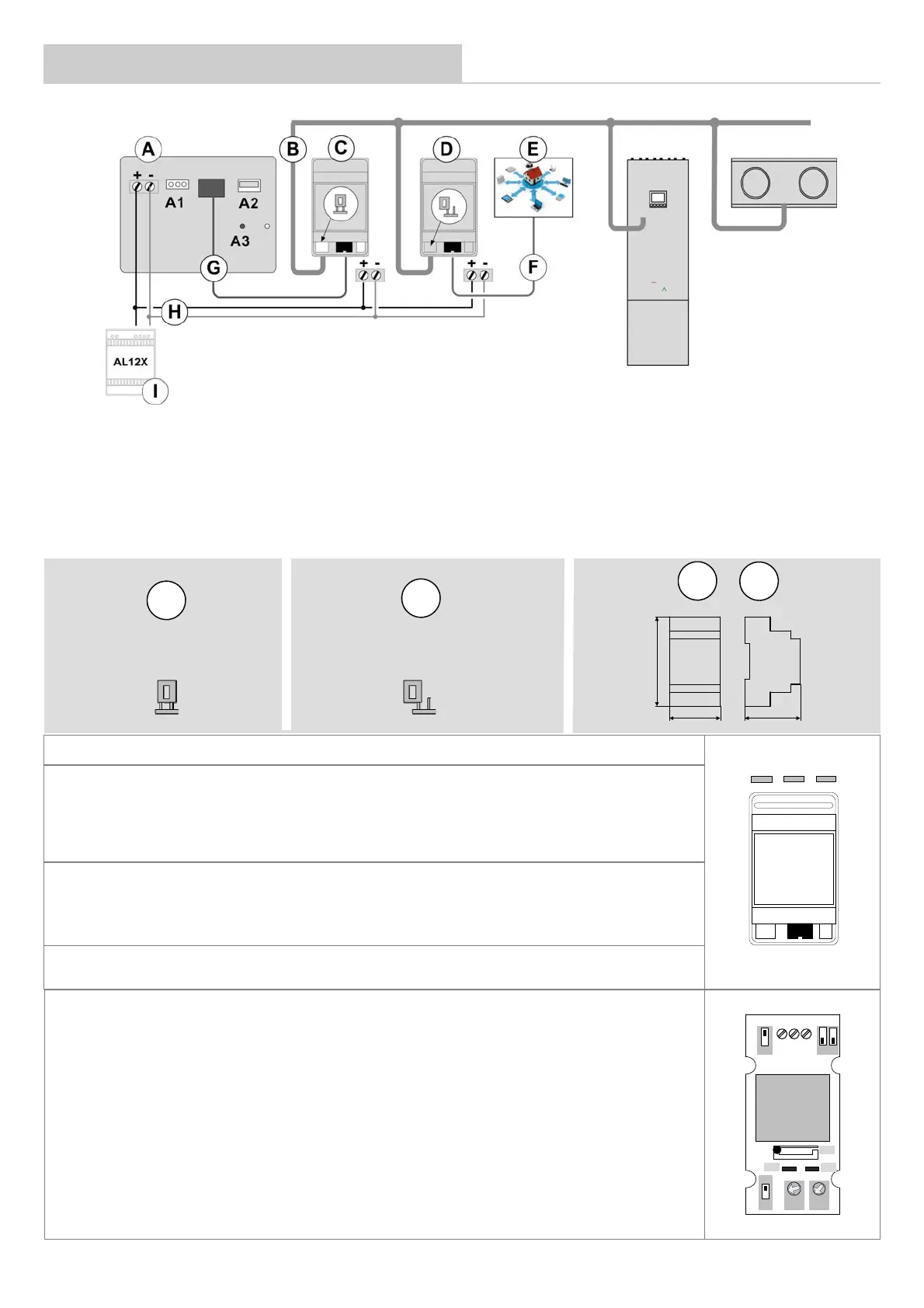

A ELFOControl
2
B Bus RS 485 (Customer, option CBSX 50 mt. spool)
C converter Ethernet/485 (supplied with ELFOControl
2)
D converter 485 - TCP/IP - 12...24 Vdc o 12 Vac
E domotic system (Customer)
F ETHERNET modbus TCP/IP (Customer)
G Ethernet UTP cat.5 cable 5 m (supplied with ELFOControl
2)
H power supply (max 90 mt)
I feeder 12Vdc (supplied with ELFOControl
2)
A1 not used
A2 USB port
A3 system restart
A
B
C
53
92
63
Termination YES
A3
C
A3
C
Termination No
MODULE RS485
LV = GREEN LED : OK
LR = RED LED QUICK FLASHING: wrong address, faulty module
Polarisation
Only one card must be polarised inside network 485 S2 = ON = polarised YES
Termination
The last component of the network must be terminated S1 = ON = termination YES
3
J
3S
4S
ON
ON
S1
S2
ON
RS485
LR
LV
J1
G
N
D
-
+
5S
Ethernet/485
converter
