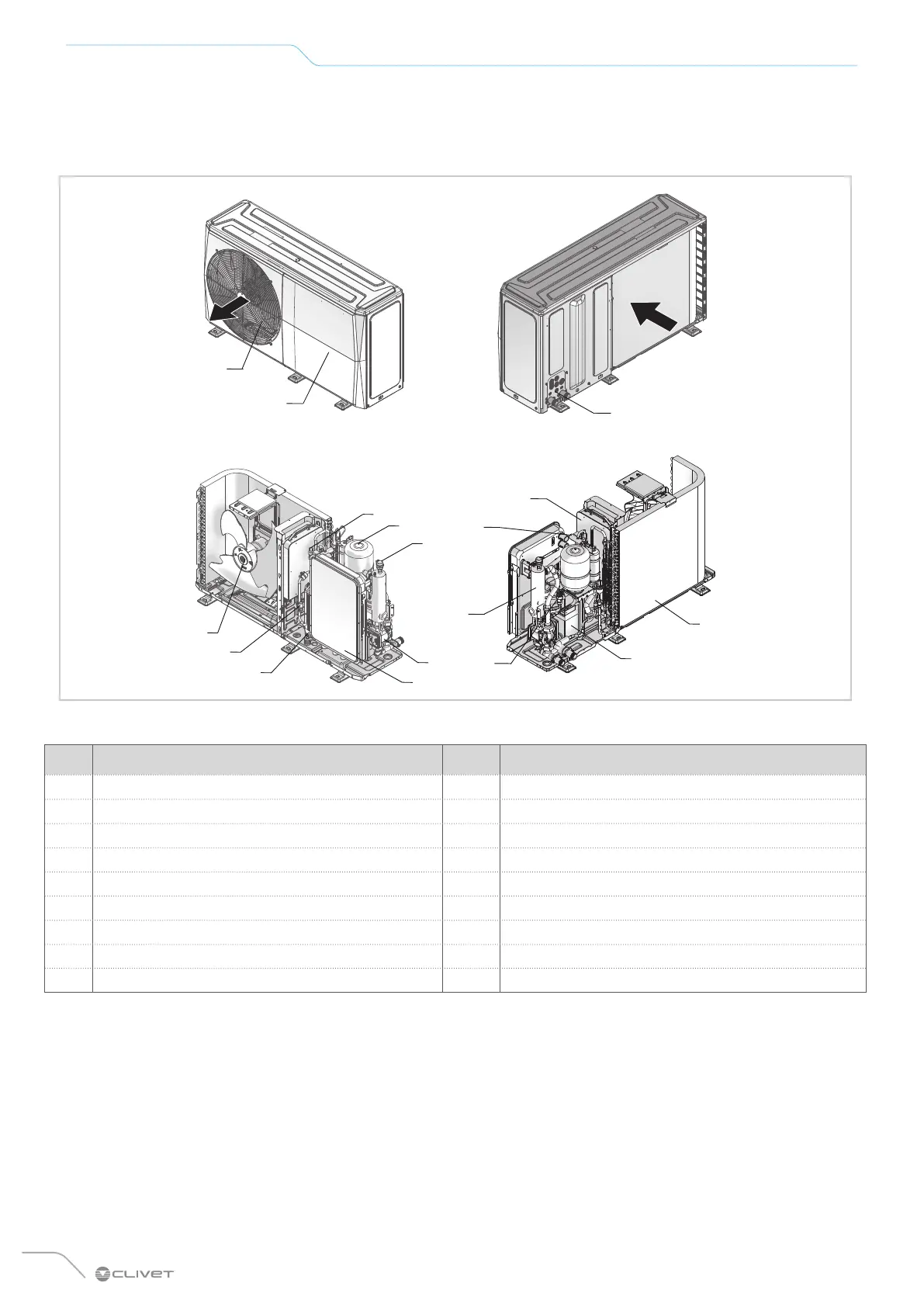

Presentation of the product
4.5 Main components
Sizes 2.1-3.1
1
2
3
5
6
7
8
10
12
9
13
14
15
16
17
No. Component No. Component
1
Fan motor
10
Compressor inverter
2
High pressure switch
11
Source exchanger: Finned coil
3
Inverter compressor
12
Water side heat exchanger
4
Electrical panel
13
Water pressure relief valve
5
Water circulator
14
Additional/backup electric heater (optional)
6
Air relief valve
15
Fan grille
7
Expansion tank
16
Access panel to internal parts
8
High pressure sensor
17
Hydraulic connections, electrical inlets
9
4-way valve
The images are provided for illustrative purposes only.
