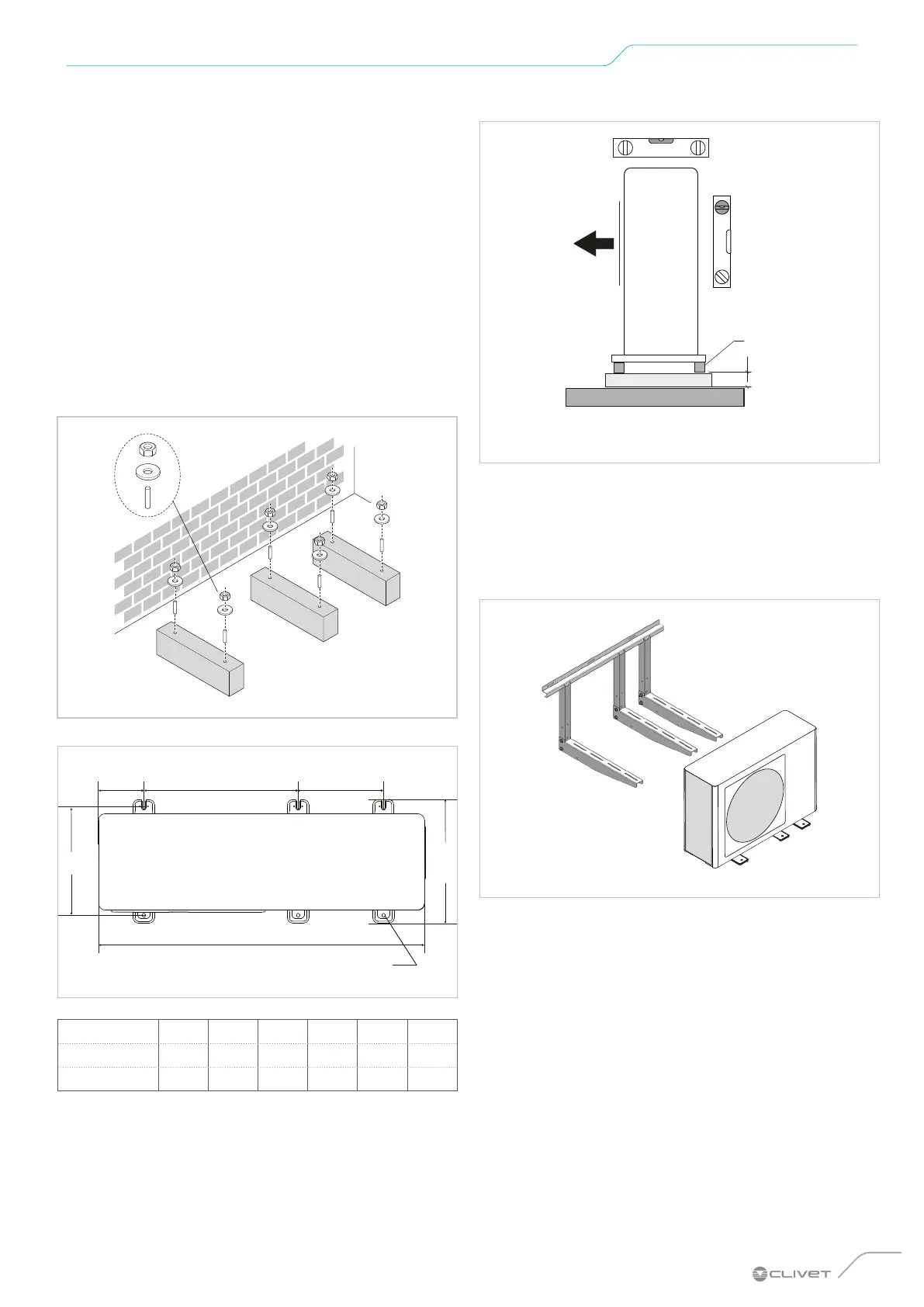

6.4 Positioning
Anti-vibration mounts (accessories supplied separately)
are available to dampen vibrations depending on the type
of installation.
Fare riferimento al foglio istruzioni dell'accessorio
6.4.1 Floor installation
To position the unit
► prepare the concrete base
► use expansion plugs
► secure the unit to the base of support
► check the levelling
1
C
B
1
Fixing points
Size A B C D E F
2.1-4.1
1299 426 375 121 644 379
5.1-8.1
1385 523 456 192 656 363
≥100
1
1 Anti-vibration mounts (accessories supplied separately)
6.4.2 Wall-mounted installation
There are two kits available:
• kit containing wall fixing brackets
• kit containing anti-vibration mounts
