Electrical connections
When connecting to the power supply terminal, use the circular wiring
terminal with the insulating sleeve.
Use a power cable that meets the specifications and securely connect it.
To prevent the cable from being pulled by an external force, ensure that
it is properly secured.
If it is not possible to use the circular wiring terminal with the insulating
sleeve, make sure it cannot be used.
Do not connect two power supply cables with dierent diameters to the
same power supply terminal. The wires could overheat due to loose
wiring.

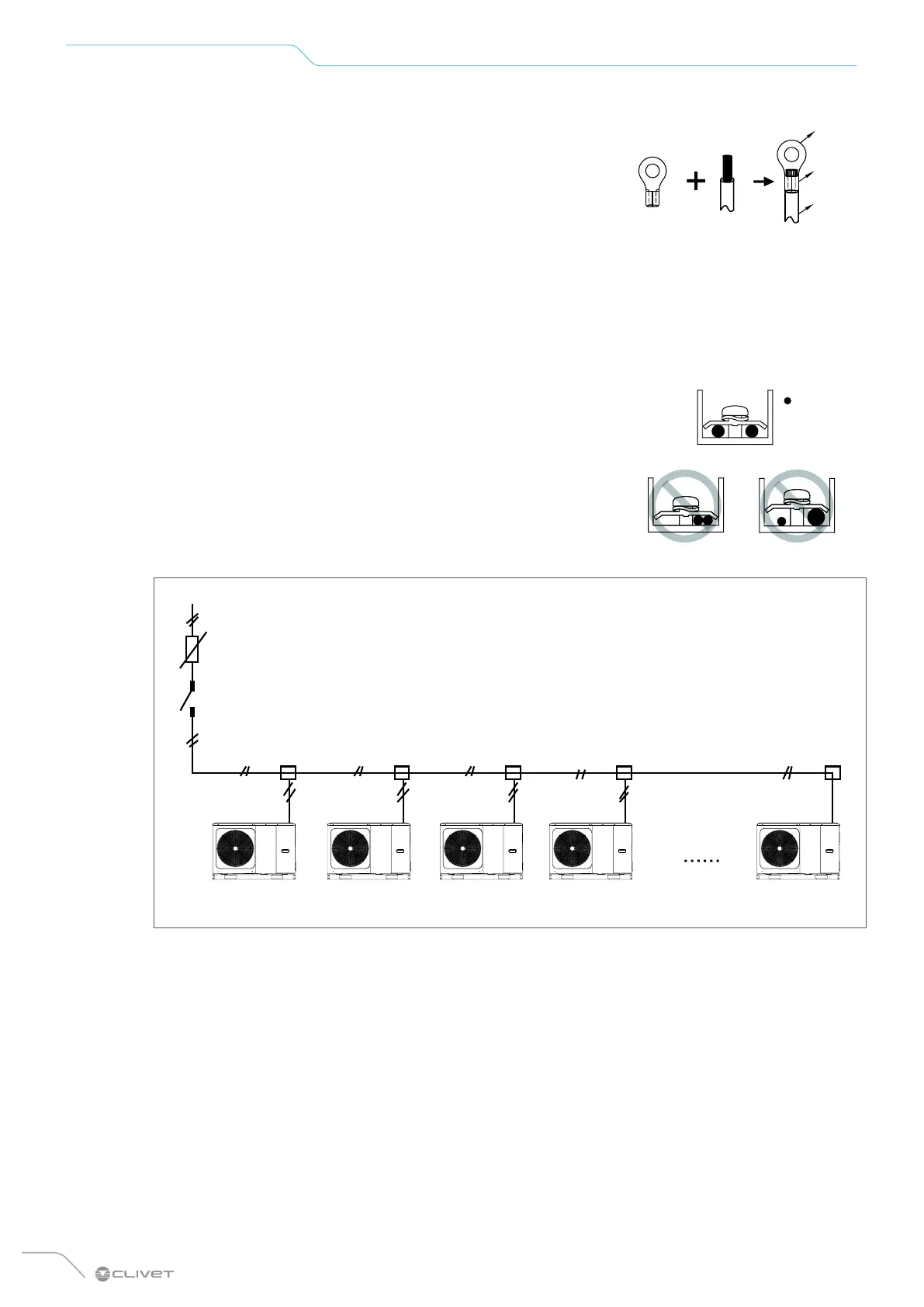

Fig. 49
Circular
wiring
terminal
Insulation
pipe
Power
cable
Copper cable
Correct power supply connections
Power supply
Switch
Manual switch
Wire distribution box
To Next Page
