Installation
W
CAUTION

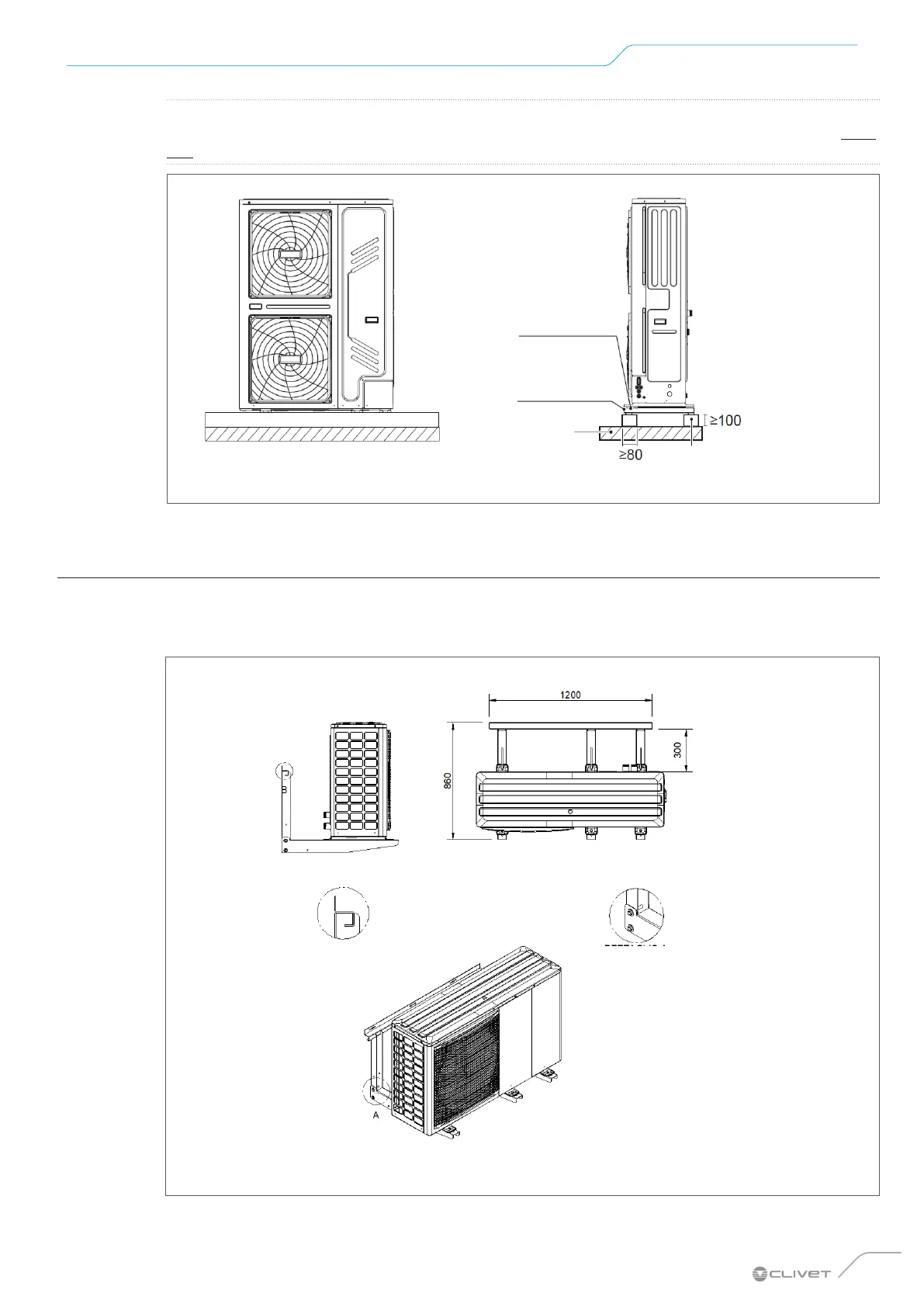

It is important to secure the unit with foundation bolts in accordance with the foundation drawing in ”Fig.
22”.
(unit:mm)
Ø10mm expansion
plug
Antivibration
mounts
Floor or roof
Support base
in concrete h ≥ 100mm
Fig. 22
5.5 Wall assembly
Two kits are available to secure the unit to the wall:
bracket kit; fixings in detail A are included, wall fixings are provided by the customer
antivibration mount kit.
(unit:mm)
Fig. 23
DETAIL B
DETAIL A
INTERLOCKING ASSEMBLY BRACKET FIXINGS SUPPLIED
