CLIVET WiSAN-YME 1 S 4.1 User Manual

72
Electrical connections

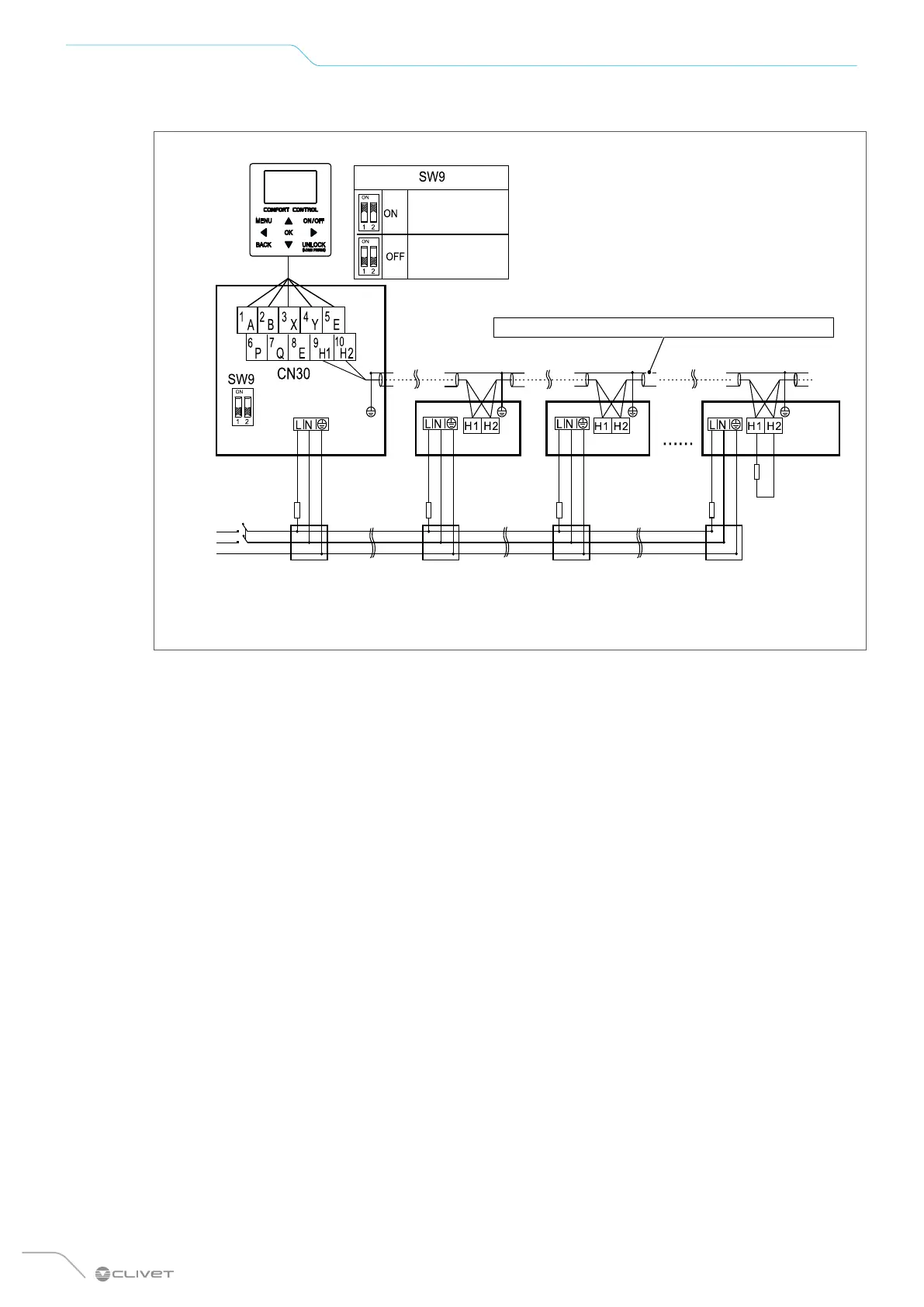

Wiring diagram of the electrical control system for the cascade system (1N ~)
Fig. 60
Master Unit
Slave Unit
Master Unit
On/O
switch
FuseFuse Fuse Fuse
Power supply
To inside
Distribution panel Distribution panel Distribution panel Distribution panel
Slave Unit 1 Slave Unit 2
Only the last
IDU requires
construction heater
to be added to H1
and H2
External heater
Slave Unit x
Please use shielded wire, and the shielding layer must be earthed
