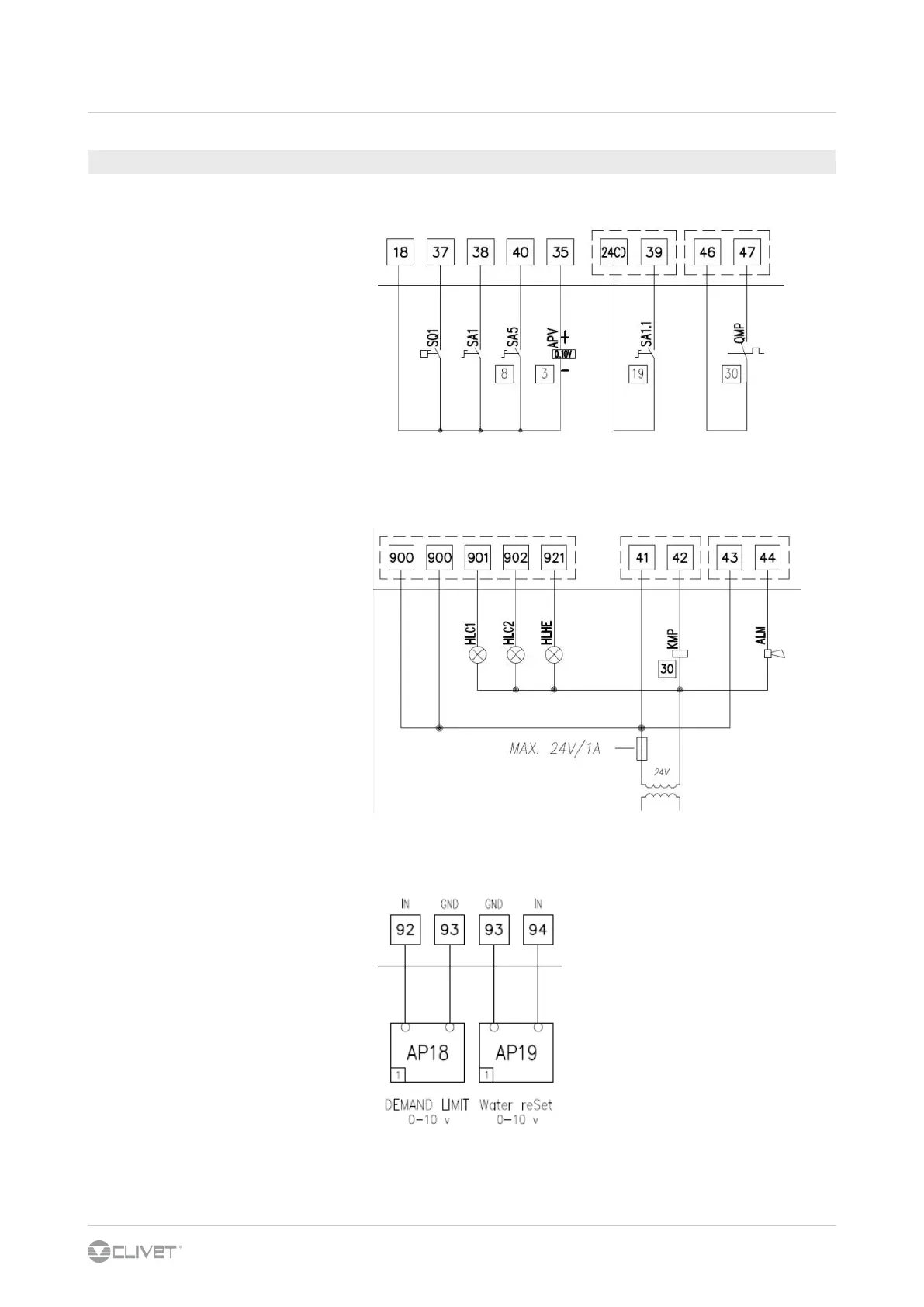

5 - ELECTRICAL CONNECTIONS

5.7 CUSTOMER CONNECTIONS

SQ1 flow switch

SA1 remote on-off selector

SA5 not used

APV 0….10V analogical output

SA1.1 second setpoint enabling switch

QMP recirculation pump

HLC1-2 compressor status signal lamp

HLHE not used

KMP pump contactor

ALM cumulative fault signal

AP18 demand limit

AP19 water reset

Wsat-Xee2
