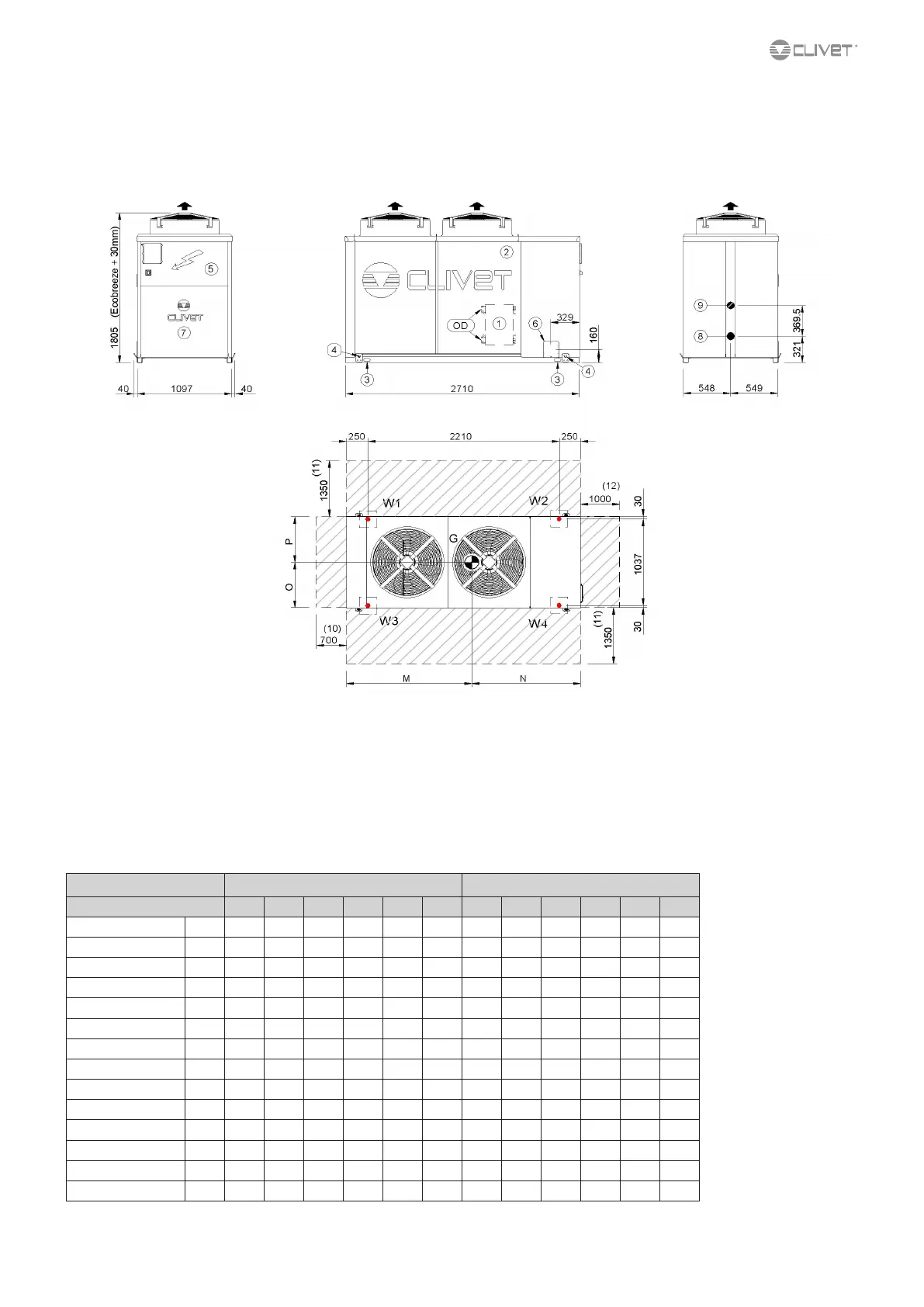

Dimensional drawings: Premium version
WSAT-XEE 352-402-432-452-502-552
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after positioning the unit)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-PRM EN-PRM
Size 352 402 432 452 502 552 352 402 432 452 502 552
M mm 1637 1658 1724 1699 1704 1714 1637 1658 1724 1699 1704 1714
N mm 1073 1052 986 1011 1006 996 1073 1052 986 1011 1006 996
O mm 584 587 596 594 596 596 584 587 596 594 596 596
P mm 513 510 501 503 501 501 513 510 501 503 501 501
OD mm 76 76 76 76 76 76 76 76 76 76 76 76
Length mm 2710 2710 2710 2710 2710 2710 2710 2710 2710 2710 2710 2710
Depth mm 1097 1097 1097 1097 1097 1097 1097 1097 1097 1097 1097 1097
Height mm 1805 1805 1805 1805 1805 1805 1805 1805 1805 1805 1805 1805
W1 Supporting Point kg 138 138 141 152 158
159 138 138 141 152 158 159
W2 Supporting Point kg 277 291 344 350 367 377 277 291 344 350 367 377
W3 Supporting Point kg 152 153 155 166 172 173 152 153 155 166 172 173
W4 Supporting Point kg 211 219 250 256 267 274 211 219 250 256 267 274
Shipping weight kg 773 796 885 917 955 975 773 796 885 917 955 975
Operating weight kg 778 802 892 924 963 984 778 802 892 924 963 984
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
