5 - ELECTRICAL CONNECTIONS

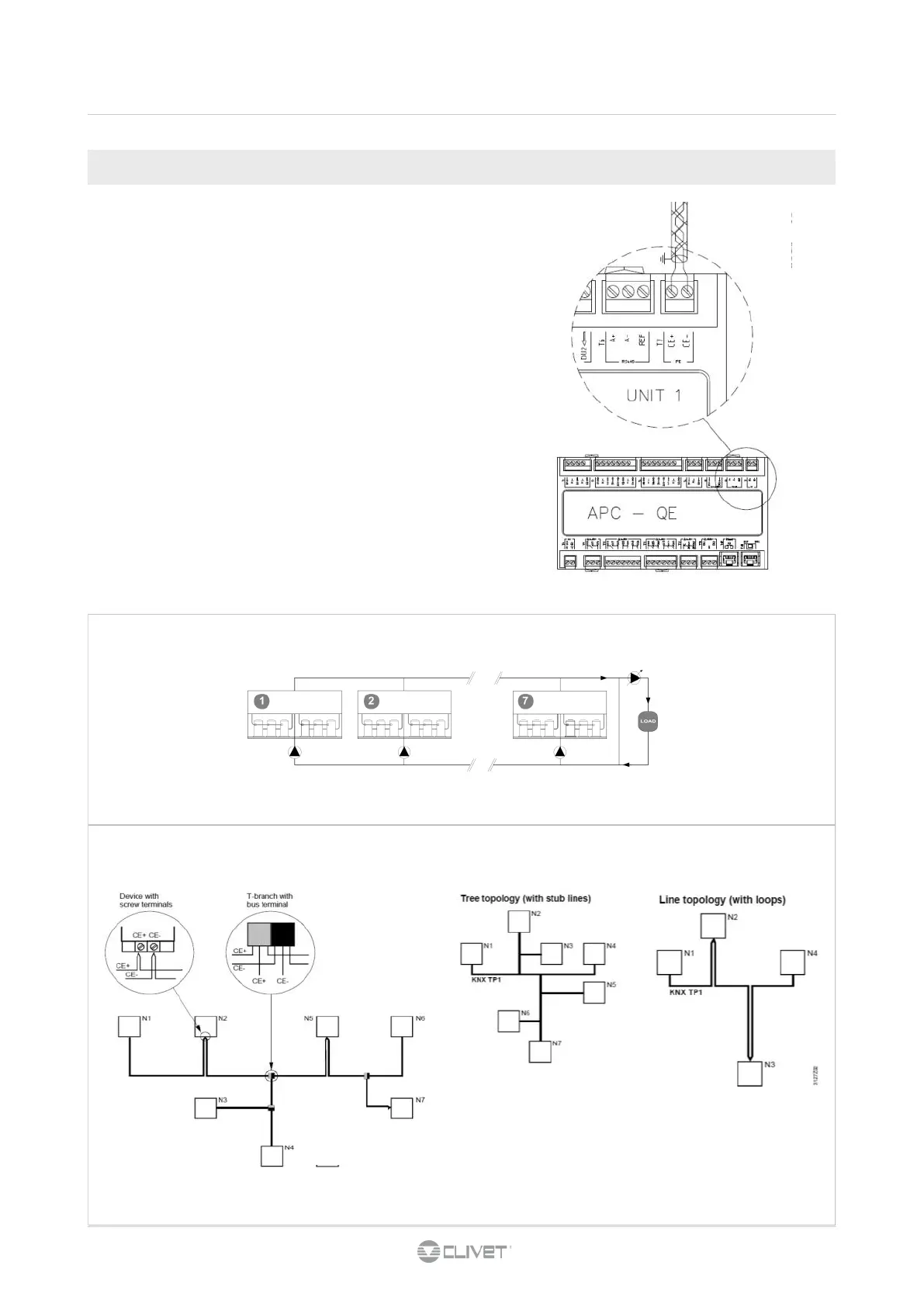

5.11 Ecoshare
Max 7 units
Maximum length of the bus line: 1000 m.
maximum distance between 2 units: 700 m.
Type of cable: shielded twisted pair cable Ø 0.8 mm
use an EIB/KNX cable
Possible connections:
Tree, star, in/out bus, mixed
It is not possible to use a ring connection
No end-of-line resistor or terminator required
There must be suitable arresters to protect the serial
lines from the effects of atmospheric discharges
The data line must be kept separate from the power
conductors or powered at different voltage values and
away from possible sources of electrical interference
