CLIVET WSAT-XEE Series - 7 - CONTROL; DISPLAY & OPERATIONS

27
7 - CONTROL

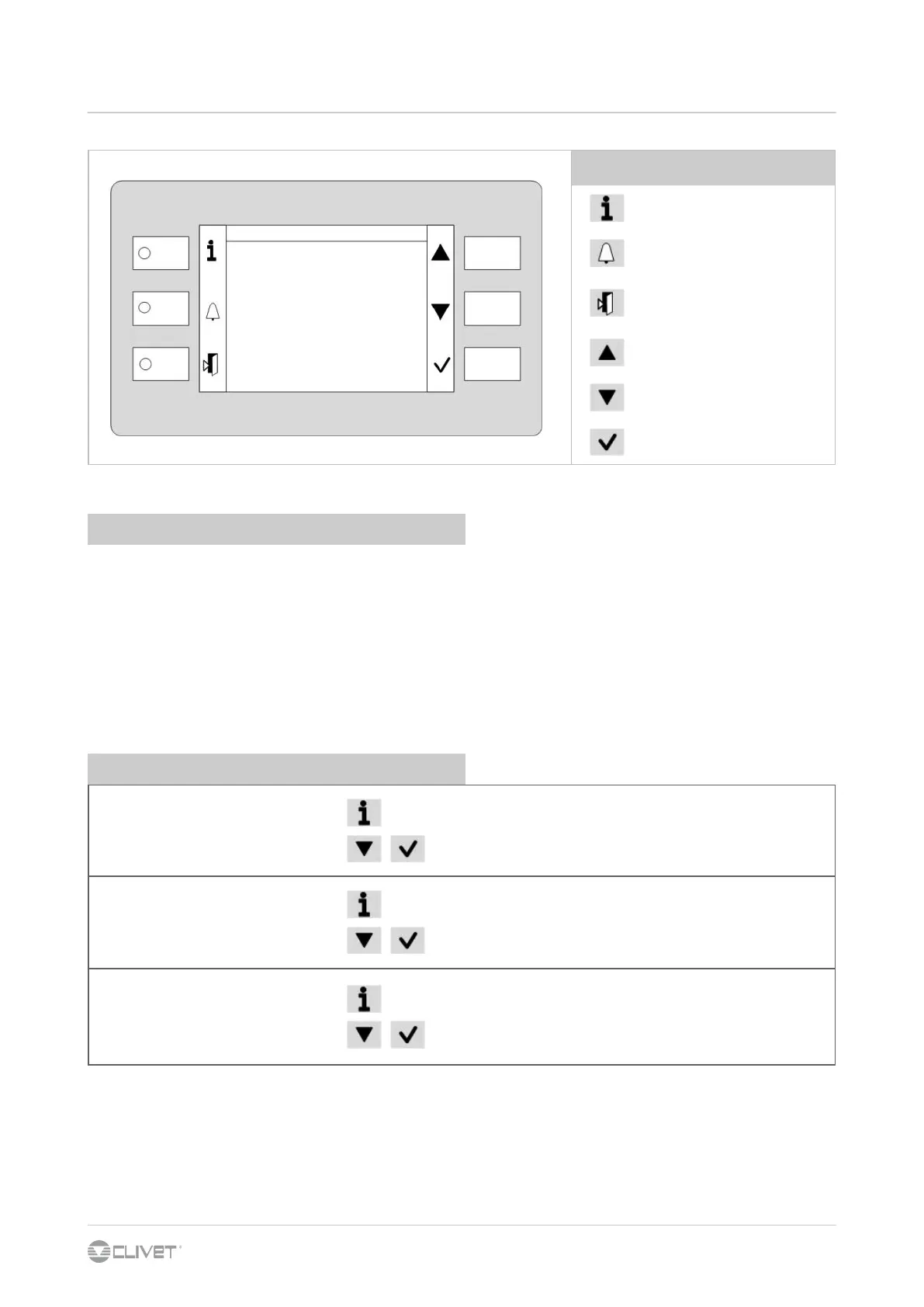

Function keys
Main menu
Alarm display
Exit
Previous level
Keyboard settings
Up
Increases value
Down
Decreases value
Confirm
Password
1/7
10.02.2012 10:15:30
SetPointAttuale 8.5°C
T.InH2OUtilizzo 10.5°C
T.OutH2OUtilizzo 12.5°C
StatoAttuale ON
ModoAttuale Cool
2 1 0 50 %
ActualSetPoint temperature setting
T.InH2OUtilitySide water inlet temperature utility side
T.OutH2OUtilitySide water outlet temperature utility side
ActualState On / off / eco / pmp On
ActualMode Cool : water cooling
Heat : water heating - NOT USED
2 installed compressors
3 1 - 0 Compressors ON
example : circuit 1 = 1 compr. On
circuit 2 = 0 compr. On
50% required power
7.2 COMMON OPERATIONS
ON, OFF, ECO
main menu
→ cmd local status
→ scegliere OFF - ECO ON - PUMP ON
change MODE
main menu
→ cmd local mode
→ select COOL - HEAT (NOT USED)
change SETPOINT
main menu
→ unit parameters
→ setpoint
7.1 DISPLAY MEANING
