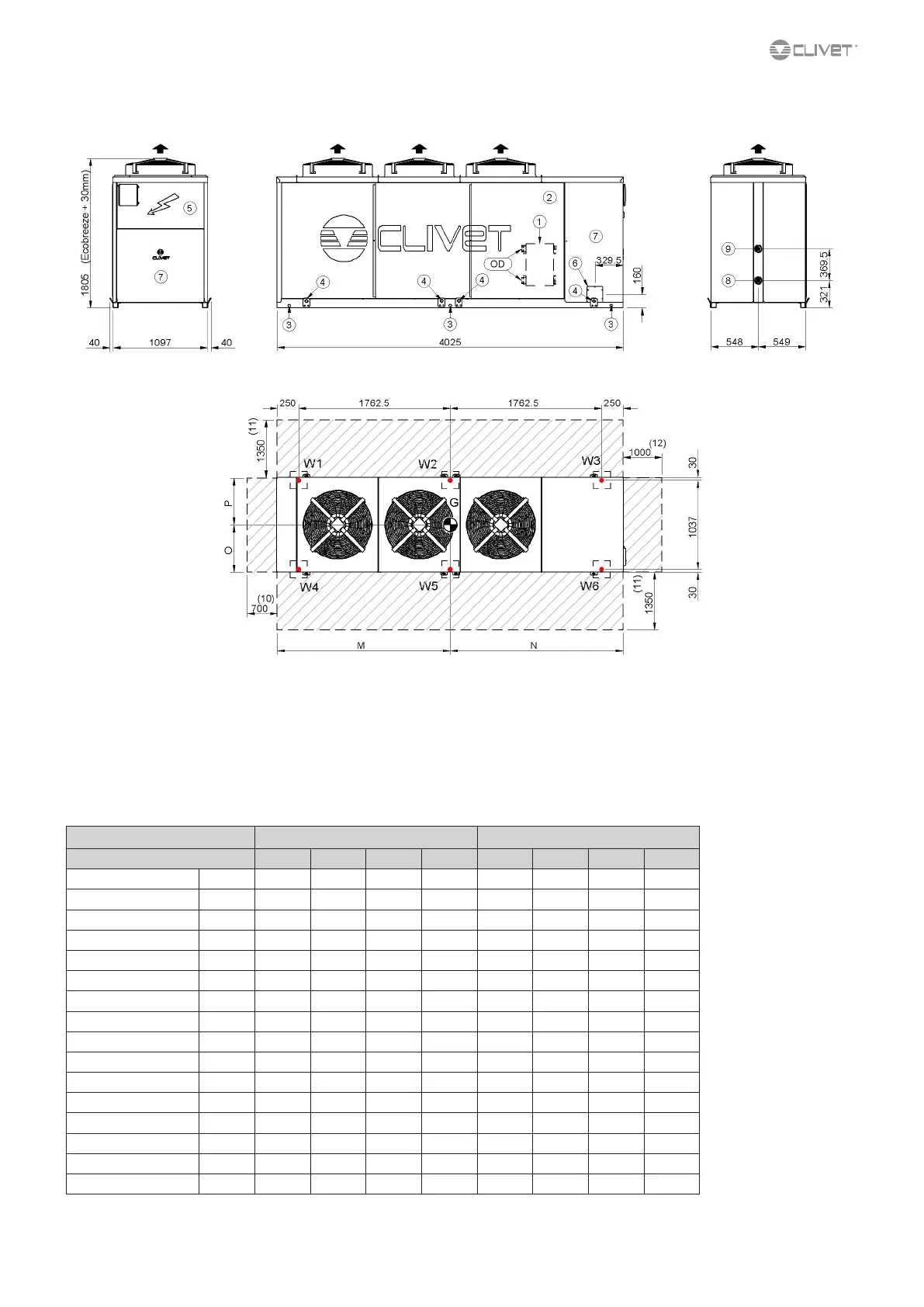

WSAT-XEE 452-502-552-602
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after positioning the unit)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-EXC EN-EXC
Size 452 502 552 602 452 502 552 602
M mm 2553 2576 2574 2590 2553 2576 2574 2590
N mm 1472 1449 1451 1435 1472 1449 1451 1435
O mm 564 565 565 566 564 565 565 566
P mm 533 532 532 531 533 532 532 531
OD mm 76 76 76 76 76 76 76 76
Length mm 4025 4025 4025 4025 4025 4025 4025 4025
Depth mm 1097 1097 1097 1097 1097 1097 1097 1097
Height mm 1805 1805 1805 1805 1805 1805 1805 1805
W1 Supporting Point kg 80 80 82 84 80 80 82 84
W2 Supporting Point kg 254 257 261 267 254 257 261 267
W3 Supporting Point kg 287 301 306 323 287 301 306 323
W4 Supporting Point kg 85 85 87 89 85 85 87 89
W5 Supporting Point kg 253
255 259 265 253 255 259 265
W6 Supporting Point kg 247 258 262 275 247 258 262 275
Shipping weight kg 1198 1224 1246 1290 1198 1224 1246 1290
Operating weight kg 1207 1234 1256 1302 1207 1234 1256 1302
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
