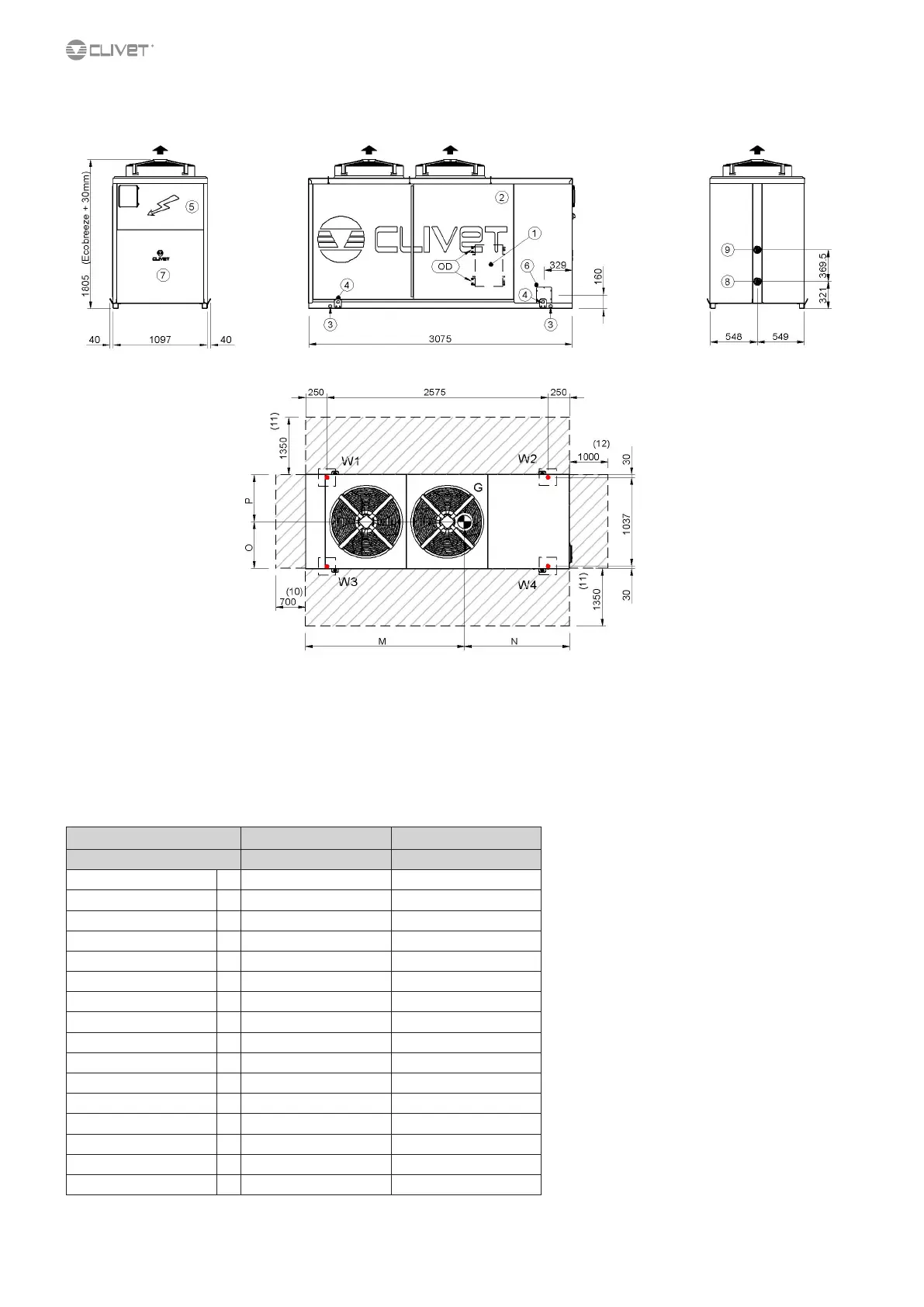

WSAT-XEE 602
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after positioning the unit)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-PRM EN-PRM
Size 602 602
M mm 2052 2052
N mm 1023 1023
O mm 595 595
P mm 502 502
OD mm 76 76
Length mm 3075 3075
Depth mm 1097 1097
Height mm 1805 1805
W1 Supporting Point kg 157 157
W2 Supporting Point kg 434 434
W3 Supporting Point kg 169 169
W4 Supporting Point kg 326 326
W5 Supporting Point kg 0.0 0.0
W6 Supporting Point kg 0.0 0.0
Shipping weight kg 1077 1077
Operating weight kg 1087 1087
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
