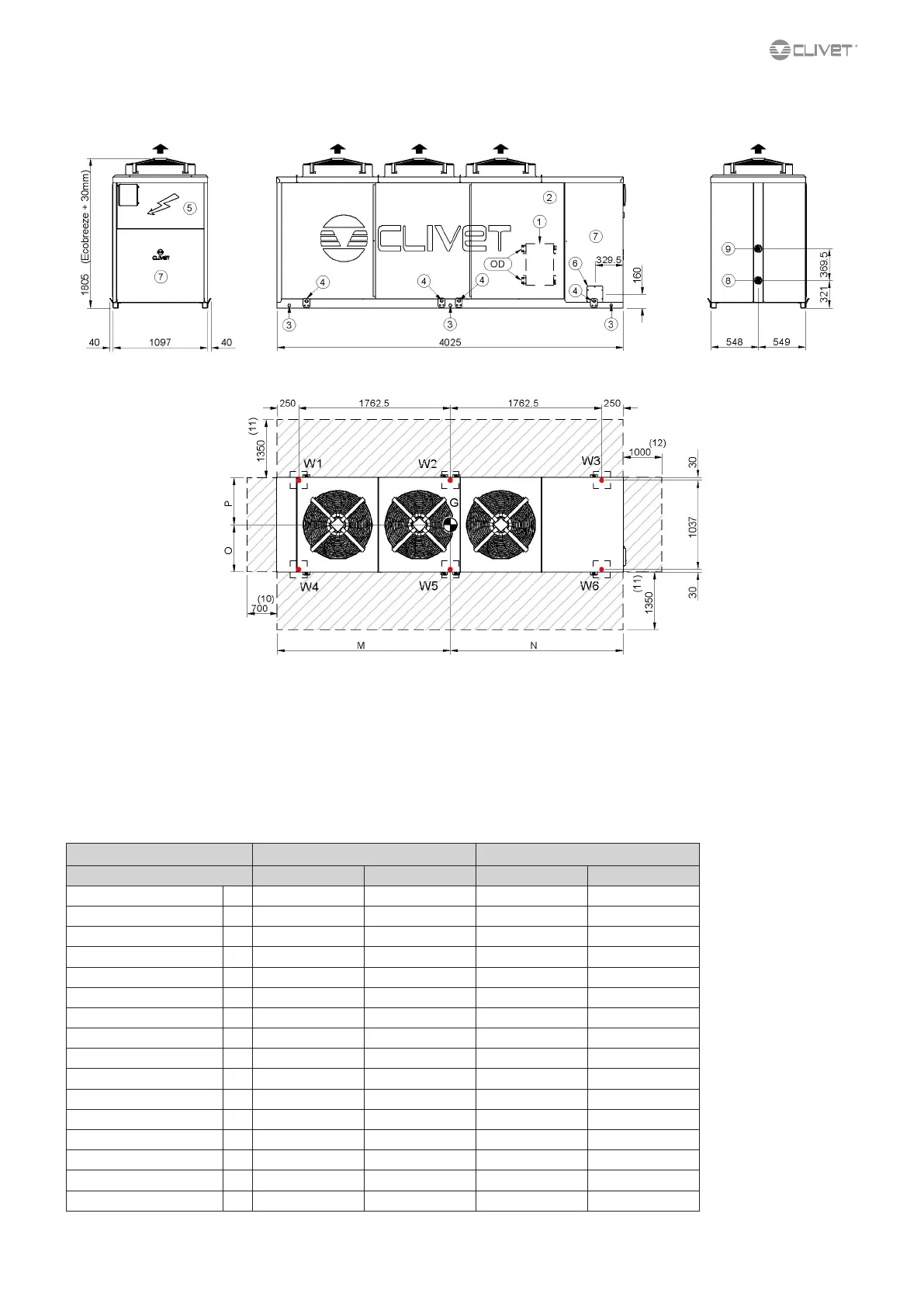

WSAT-XEE 702-802
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after positioning the unit)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-PRM EN-PRM
Size 702 802 702 802
M mm 2626 2643 2626 2643
N mm 1399 1382 1399 1382
O mm 567 567 567 567
P mm 530 530 530 530
OD mm 76 76 76 76
Length mm 4025 4025 4025 4025
Depth mm 1097 1097 1097 1097
Height mm 1805 1805 1805 1805
W1 Supporting Point kg 79 79 79 79
W2 Supporting Point kg 260 264 260 264
W3 Supporting Point kg 332 344 332 344
W4 Supporting Point kg 84 84 84 84
W5 Supporting Point kg 258 262 258 262
W6 Supporting Point kg 282 292 282 292
Shipping weight kg 1283 1310 1283 1310
Operating weight kg 1295 1324 1295 1324
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
