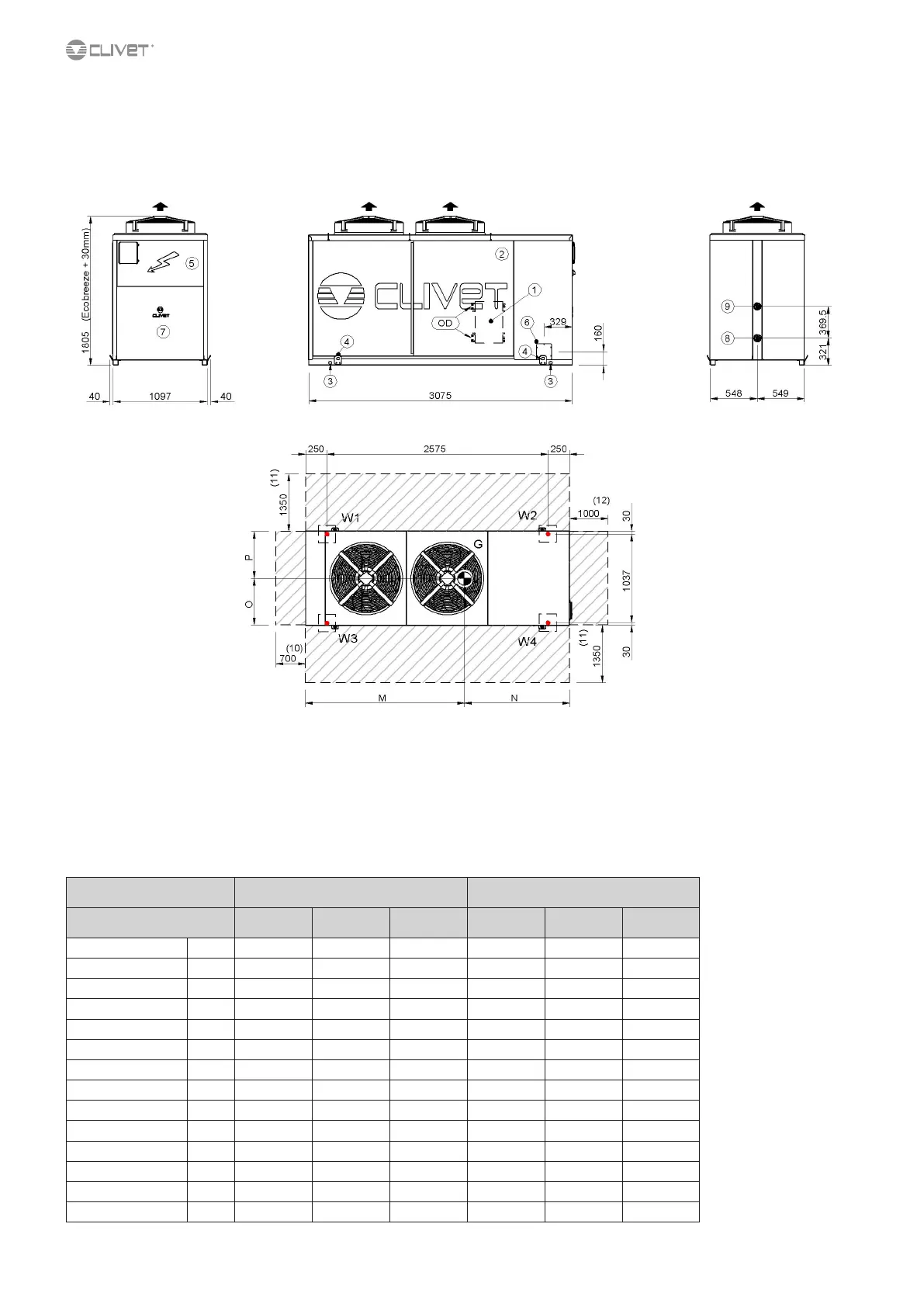

Dimensional drawings: Excellence version
WSAT-XEE 352-402-432
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-EXC EN-EXC
Size 352 402 432 352 402 432
M mm 1933 1946 2011 1933 1946 2011
N mm 1142 1129 1064 1142 1129 1064
O mm 579 581 590 579 581 590
P mm 518 516 507 518 516 507
OD mm 76 76 76 76 76 76
Length mm 3075 3075 3075 3075 3075 3075
Depth mm 1097 1097 1097 1097 1097 1097
Height mm 1805 1805 1805 1805 1805 1805
W1 Supporting Point kg 149 153 156 149 153 156
W2 Supporting Point kg 325 342 396 325 342 396
W3 Supporting Point kg 161 165 168 161 165 168
W4 Supporting Point kg 261 272 304 261 272 304
Shipping weight kg 889 925 1015 889 925 1015
Operating weight kg 896 933 1024 896 933 1024
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
