Cloud 46-80 - Block Diagram

46-80 Installation and User Guide V1.0
11
Block Diagram
ZONE 1
LINE 1
LINE 2
LINE 6
LINE 6
DETECT
MUSIC
EQ
VCA
LOCAL CTRL
REMOTE MUSIC CONTROL
PORT
RS232
PORT
OPTIONAL REMOTE CONTROL (RSL-6)
MUSIC
MUTE
MUSIC MUTE
FACILITY
PORT
LOW PASS
FILTER
ZONE
AUX
OUT
MUSIC
EQ
VCA
LOCAL CTRL
REMOTE MUSIC CONTROL
PORT
MUSIC
MUTE
LOW PASS
FILTER
ZONE
AUX
OUT
GATE
PAGE
ACCESS
LINE 6 PRI
ALL ZONES
MIC 2MIC 1
PRIORITY
GATE
PAGE
ACCESS
MIC 2MIC 1
PRIORITY
LINE 6 PRI
ZONE 1
RS232
RS232
RS232
ZONE 2
ZONE 3
ZONE 4
80W
LIMITER
SIGNAL
DETECT
TIMEOUT
ENABLE
70/100V LINE
(OPTION)
OUTPUT
ZONE 1 AMPLIFIER
ZONE 2 AMPLIFIER
ZONE 3 AMPLIFIER
ZONE 4 AMPLIFIER
INTERNAL ZONE
ROUTING JUMPERS
MIC
EQ
100Hz
GATE
MIC 2
MIC
EQ
100Hz
MIC 1
/PAGE
DIGITAL
PAGE MIC
MIC 1
MIC 2
LINE 3
LINE 4
LINE 5
LINE 6

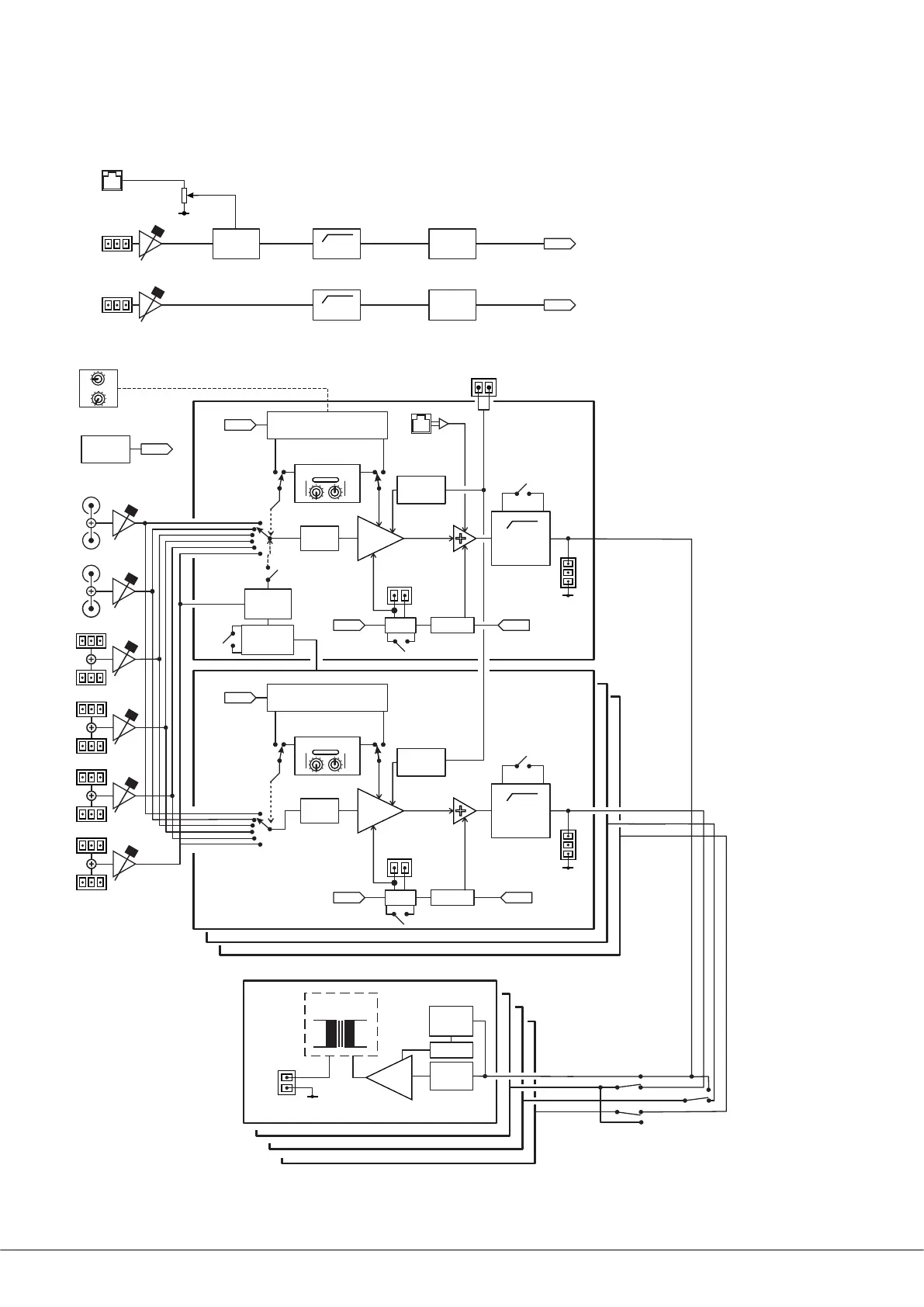

The simplied block diagram above illustrates the basic signal architecture of the 46-80.
