and smartphones to stream audio wirelessly to the module,
and thus into the audio system of the area where the module
is installed. The 46-80’s priority circuitry is automatically
triggered when streamed audio is detected, reducing the
music level in the zone. The BT-1 connects to the 46-80’s
FACILITY PORT, and thus will generally be installed within
Zone 1.

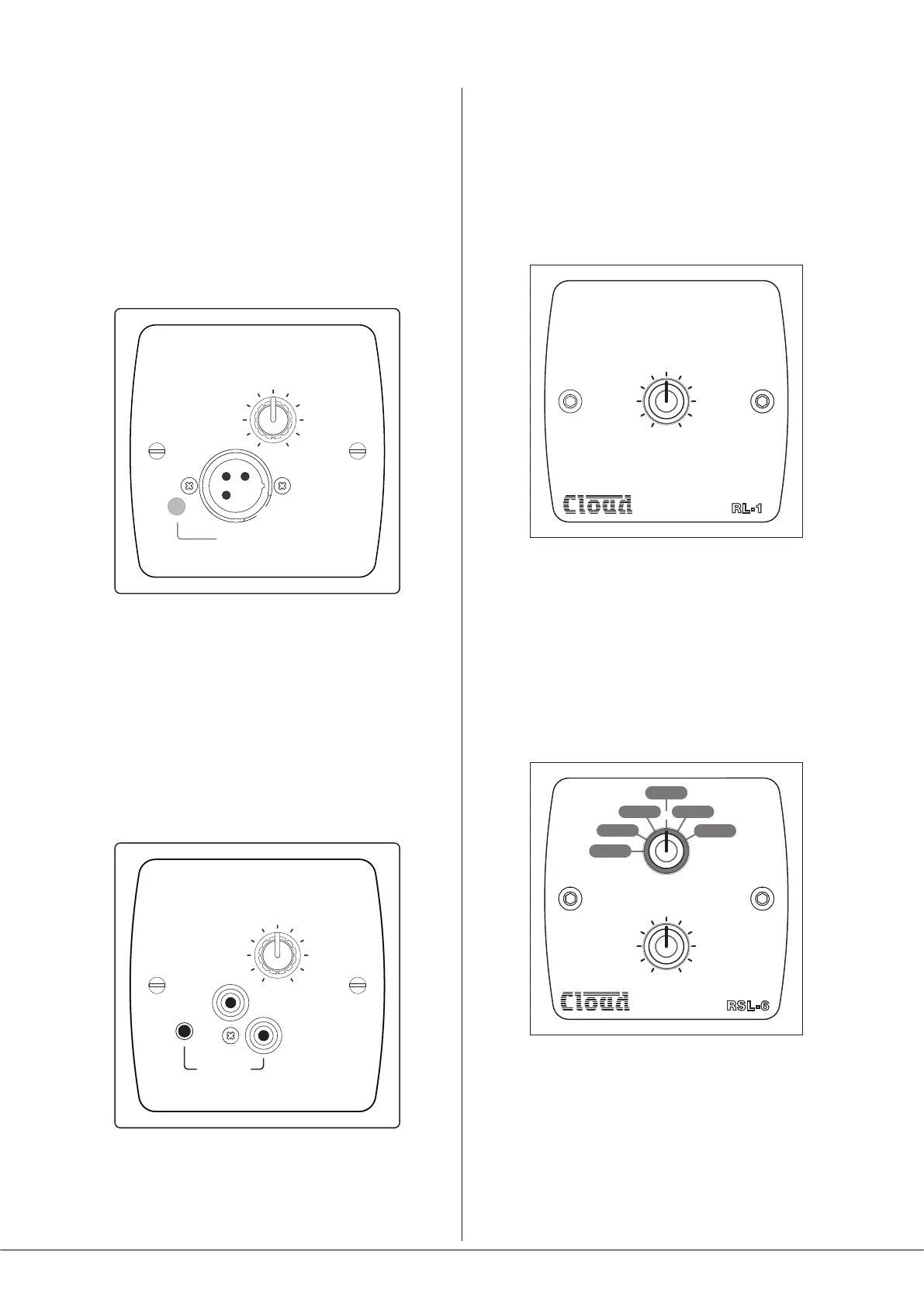

M-1 Series Remote Mic Input module
M-1
MIC LEVEL
0
1
2
3
4
5
7
8
9
10
MIC PRIORITY
6
The M-1 is a remote active input module which allows a
microphone to be connected within a zone and then routed
to the zone’s audio system. The module includes a mic level
control and a switchable mic-over-music priority function.
The M-1 connects to the 46-80’s FACILITY PORT, and thus
will generally be installed within Zone 1.
L-1 Series Remote Line Input module
L-1
MUSIC LEVEL
0
1
2
3
4
5
6
7
8
9
10
LINE INPUT
The L-1 is an active remote input module which allows a
stereo line level audio source to be connected within a zone
and then routed to the zone’s audio system. Both phono
sockets (RCA jacks) and a 3.5 mm 3-pole jack socket are
tted, together with a music level control. The L-1 connects
to the 46-80’s FACILITY PORT, and thus will generally be
installed within Zone 1.
RL-1 Series Remote Music Level Controls
4
5
6
1
2
3
7
9
10
0
8
MUSIC LEVEL
RL-1
The RL-1 Series is a range of small plates with a single control
for locally adjusting the music level in a zone. They connect
to one of the 46-80’s REMOTE MUSIC CONTROL ports.
RSL-6 Series Remote Music Level/Source
Controls
RSL 6-
1
2
3
4
5
6
MUSIC LEVEL
SOURCE SELECT
4
5
6
1
2
3
7
9
10
0
8
The RSL Series is a range of plates allowing local (per-zone)
music source selection as well as music level control. They
are the same size as the RL-1s, and connect in a similar way.
The RSL-6, which provides 6-way source selection, is the
appropriate version for use with the 46-80.
