Cloud 46-80 - Rear Panel Description

46-80 Installation and User Guide V1.0
13

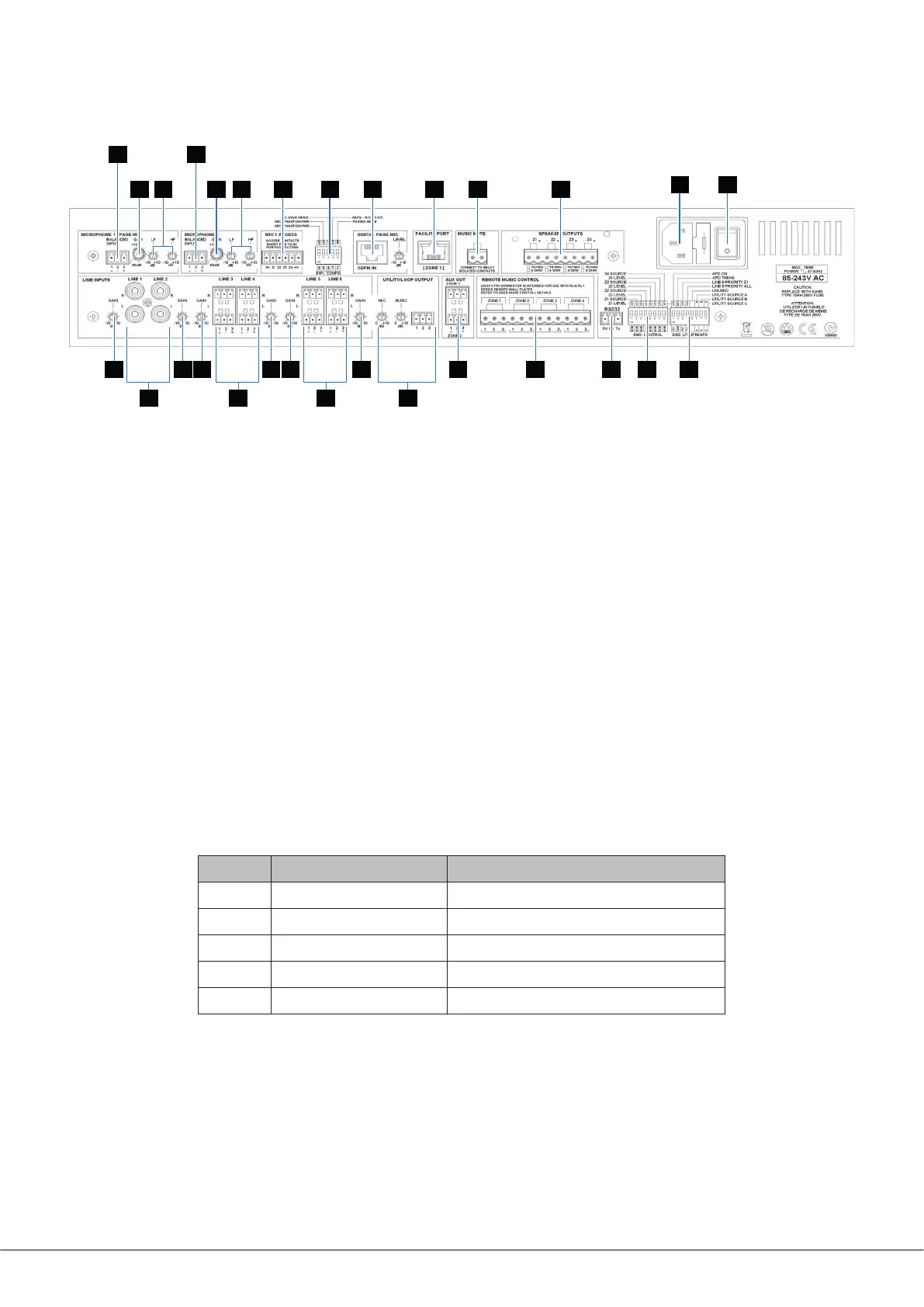

Rear panel description
6 6 8 910 13 19 16
20 21
3 3 3 3 3 3 11 1814 12 15
7 7
54
1 2 2 17
1. LINE 1 and LINE 2 – unbalanced line inputs for connection of music sources. Two pairs of RCA (phono) sockets; inputs are
stereo and summed internally to mono.
2. LINE 3 to LINE 6 – balanced line inputs for connection of music sources. Four 3-pin, 3.5 mm-pitch screw-terminal
connectors; inputs are stereo and summed internally to mono.
3. GAIN – preset trim control for each line input, providing +/-10 dB of gain adjustment for input level matching.
4. MICROPHONE 1/PAGE MIC – balanced microphone input on 3-pin 3.5 mm-pitch screw-terminal connector. This input
may be used in conjunction with the MIC 1 ACCESS connector [8] for paging.
5. MICROPHONE 2 – balanced input for a second microphone; 3-pin 3.5 mm-pitch screw-terminal connector.
6. GAIN – preset mic gain trim controls for each mic input, gain range 10 to 48 dB.
7. MIC EQ – two preset EQ controls for each mic input:
• LF: +/-10 dB @ 100 Hz
• HF: +/-10 dB @ 5 kHz
8. MIC 1 ACCESS – 6-pin, 3.5 mm-pitch screw-terminal connector for paging zone selection by contact closure.
9. DIGITAL PAGE MIC - RJ45 Cloud Digital Paging interface; PM Series* microphones (excluding the PM1) may be connected
here, using Cat 5 cable.
10. SW1: CONFIG – 5-pole DIP switch for setting various unit congurations:
SWITCH FUNCTION PURPOSE
1
MIC 1 PHANTOM PWR
Enables 15 V phantom power for Mic 1
2
MIC 2 PHANTOM PWR
Enables 15 V phantom power for Mic 2
3
MIC OVER MUSIC
Enables mic-over-music priority
4
MUTE – N/O OR N/C
Congures MUSIC MUTE input
5
PAGING MODE
Congures Mic 1 Input for paging
11. REMOTE MUSIC CONTROL – 3-pin 5 mm-pitch screw terminal connector for each zone, for connection of RL-1/RSL-6
remote control plates.
12. SW2: CONTROL – 8-pole DIP switch determining whether front panel music source and/or level controls will remain
active when remote control plates are connected (per-zone).
13. FACILITY PORT [ZONE 1] – RJ45 socket, for connection of optional remote input/control modules; may also be used as
an auxiliary input.
* The earlier Cloud CDPM range of Paging Microphones is also compatible with this interface.
