• lever 9 for lowering front or rear stabi-
lizers during loading/unloading opera-
tions;
• travel speed selector 10: “turtle” mode =
slow speed, “hare mode” = medium speed
(*optional), “double hare” mode = high
speed (*optional);
• lever 11 for automatic stabilization/de-
stabilization;
• lever 12 for "Home function” / basket
levelling (dead man device).
Carry out the basket levelling operation
only when the aerial part of the MEWP is in
transport configuration.
It is strictly forbidden to carry out the bas-
ket levelling operation when the machine
is developed.
- on the right side:
• electropump activation button.

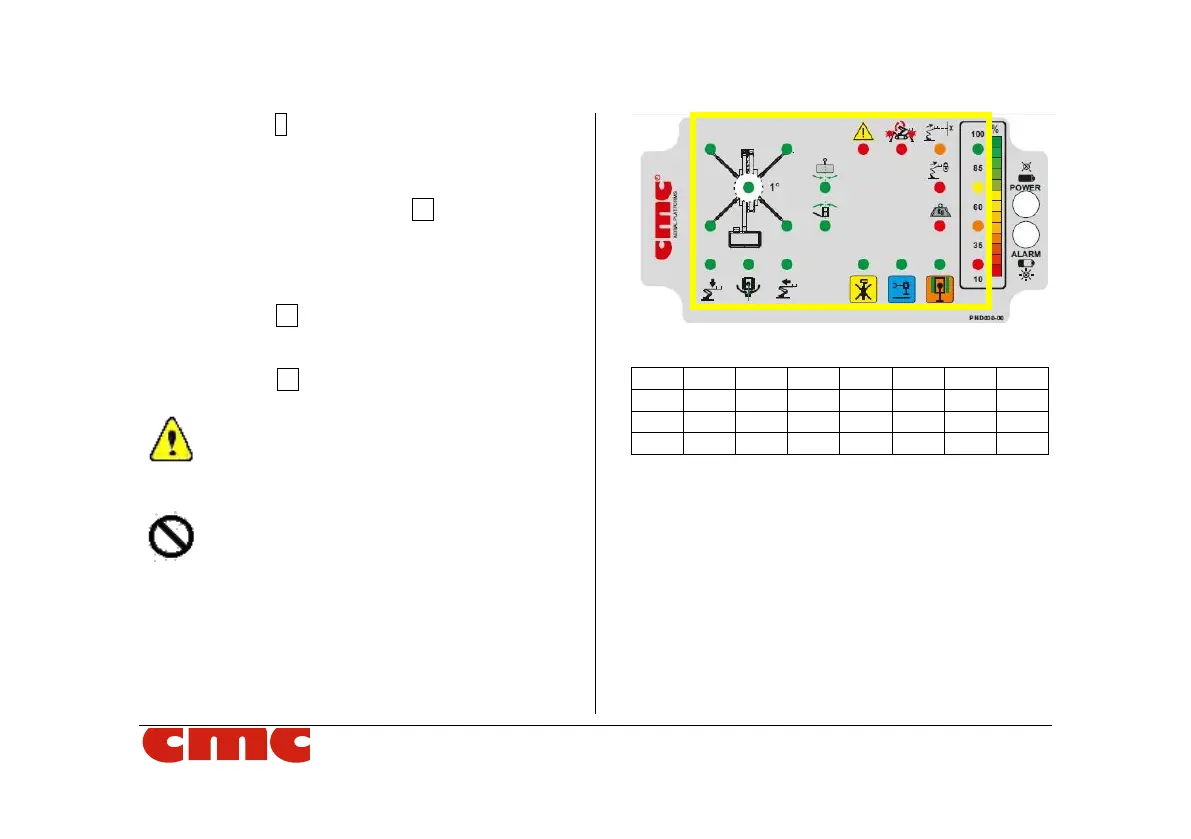

Picture 9: led panel with indicator lights.
Table 1: assignment number for leds matrix.
1. LED – LEFT FRONT STABILIZER TO
THE GROUND
2.
3. LED – RIGHT FRONT STABILIZER TO
THE GROUND
4.
5. LED – DANGER/GENERIC FAULT
6. WARNING LIGHT – ANTI-CRASH
SYSTEM
