MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 41 of 127
5. use the joysticks J1 and J6 (Picture 17) to
drive the tracks;
6. position the speed selector SS (Picture 17) on
"turtle" symbol; move it to “hare” symbol (*op-
tional) to increase the speed of the tracks or
to “double hare” (*optional) to reach the max-
imum speed;
7. keep a safe distance from the machine of at
least 3 m during travelling.

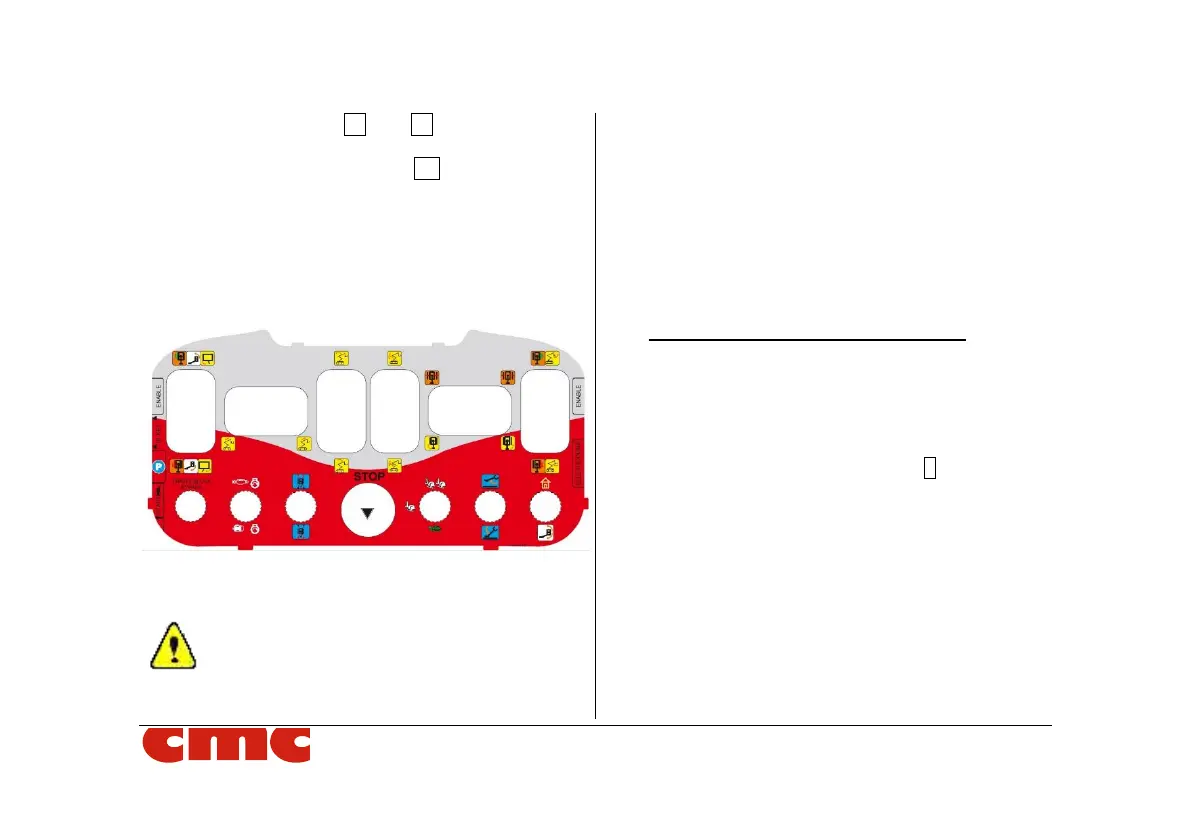

Picture 17: travel commands on
radio control station.
WARNING! The S23 machine can travel
on a maximum inclination of 17° (31%), us-
ing only the radio control.
During travels, when reaching a 14° slope, an inter-
mittent acoustic warning will activate; it becomes a
fixed acoustic signal at 17°, in order to indicate the
PROHIBITION TO KEEP ON INCREASING
INCLINATION FURTHER.
If the operator continues, reaching max allowed
level (17°), the machine will inevitably go into to-
tal block.
Procedure for bypass of travel block:
It is possible to bypass this block ONLY THROUGH
OPERATIONS UNDER THE FULL
RESPONSIBILITY OF THE USER, that can proceed
as below:
1. move upward the lever 7 (Picture 8b),
placed on the left downside of the radio
control;
2. travel the machine using joysticks J1 and
J6 (Picture 8b).
