30

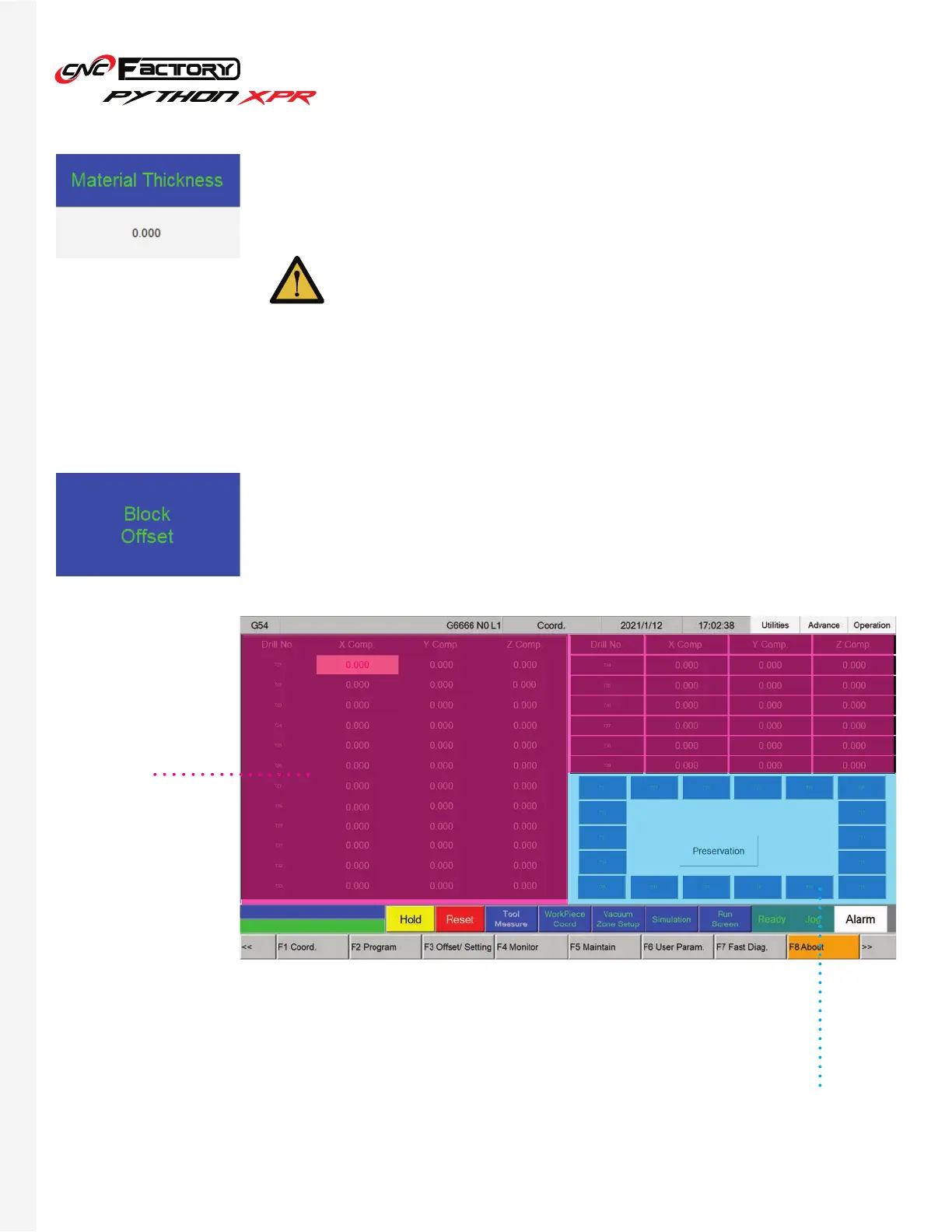

Material Thickness
Block Offset [requires upgrade]
Click to specify the thickness of your material. The dust hood will hover just above
the thickness that you specify.
Opens the block offset options. This is an advanced feature for technicians. See the
Step-by-Step chapter at the end of this manual for Adjusting Drill Block Offsets.
• If the value indicated is
below
the actual material thickness, there
will be a gap between the dust hood and the material where dust and
debris may escape.
• If the value indicated is
above
the actual material thickness, it will
squish the dust hood brush.
For both scenarios, the depth of the cut will also be inaccurate.
(Buttons are active only on Jog mode. Clicking on the buttons sends a
signal to release air to the solenoid that pops the tool out)
Tool block info
Shows the reference
values from the spindle
to each drill block port
• T21 to T29: for the drill block
• T31 to T39: for air solenoid tools or marking blocks
• Preservation Button - saves edited values (requires password)
