Outline drawings
98-175666-A Chapter A: Technical specifications A-8
A.4.2 ADU SAILOR 600 XTR

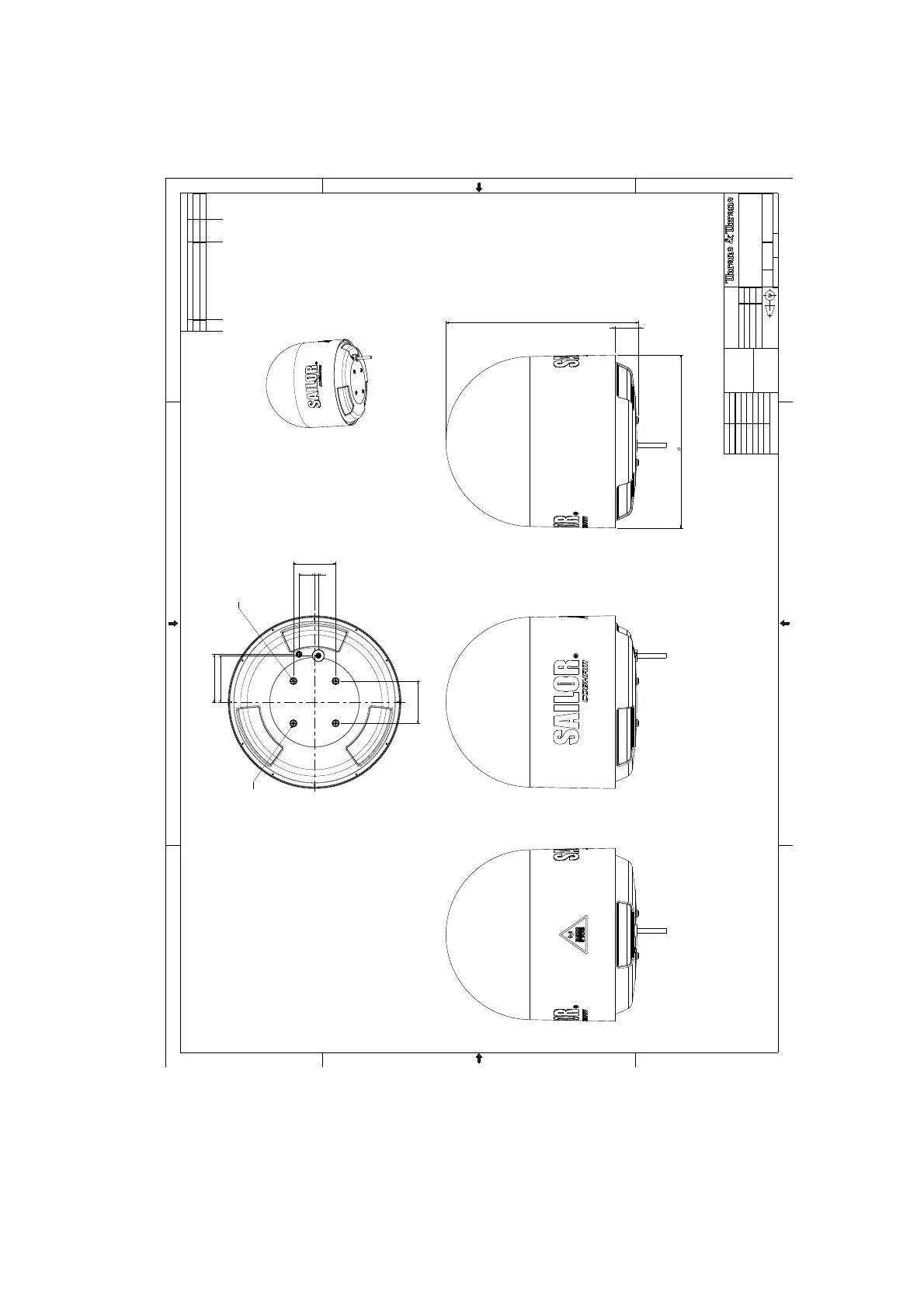

Figure A-2: Outline drawing: ADU (60 cm)
LTR DESCRIPTION DATE APPROVAL
REVISIONS
ANGLES
LIN. DIM.
MATERIAL
DR.
CH.
AP.
AP.
FIRST
ANGLE
PROJECTION
Title:
Size:
Codeident no.: Drawing no.:
Sheet: 1 of 1
Telecommunications Engineering Copenhagen Denmark
A1
NEXT ASSY USED ON
APPLICATION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIME-
TRES AND TOLERANCES ARE IN
ACCORDANCE WITH DS/ISO
2768-1 F
1
2
3
4
1
2
3
4
D
C
B
A
D
C
B
A
99-121451 Rev.A
110
200
18 74
200
220
226
818
910
A-01 Original 20170822 TOB
B-01 Corrected height to 910 20171009 TOB
20170822
20170822
20170822
OUTLINE DRAWING
SAILOR 60GX/600Ka/600Ku
TT94-156941
Scale: 1:5
TOB
CMP
TOB
THREAD for GROUNDING
M10 (depth: 22mm)
SCALE 1:10
