COBHAM SAILOR 6000 User Manual

Chapter 2: Installation
2-3
Installation
98-131571-B

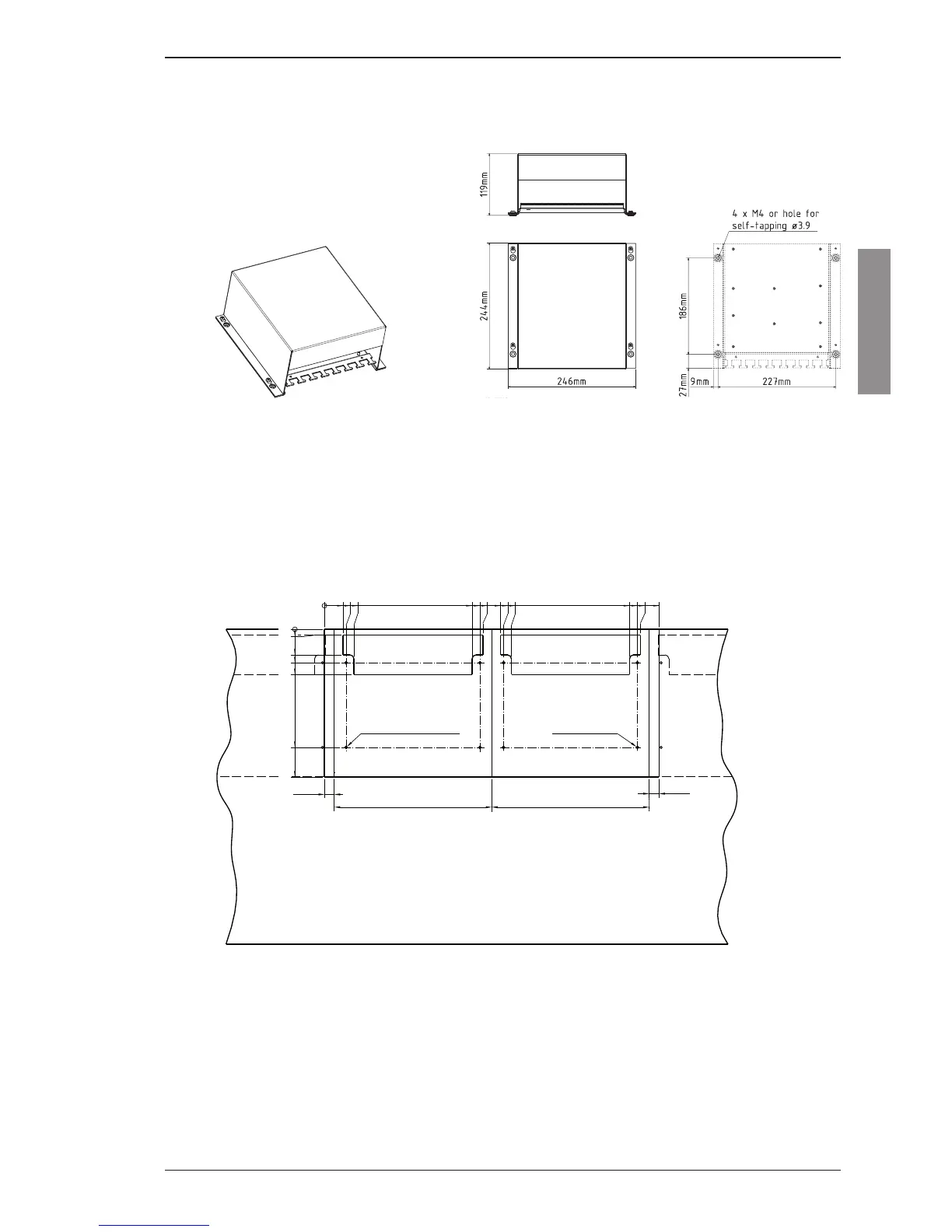

Type 6330
SAILOR 6330 Console connection box
2.2 Drilling and cutting template
The console can be placed and mounted, in several different ways, to ensure optimal integration into the user
environment.
2.2.1 Tabletop mounting for 2 x 400mm section
99-132394
Cut for cable entry
400
25
4 mounting holes (ø6)
400
4 mounting holes (ø6)
Cut for cable entry
for 400mm section.
25
NB! The table must be sufficiently supported
to carry the console.
****
Drilling template
0 47.5 55 75 375 395 402.5 447.5 455 475 775 795 802.5 850
0
15
65
85
115
300
375
Drilling and cutting template
