COBHAM SAILOR 6000 User Manual

Chapter 2: Installation
2-5
Installation
98-131571-B

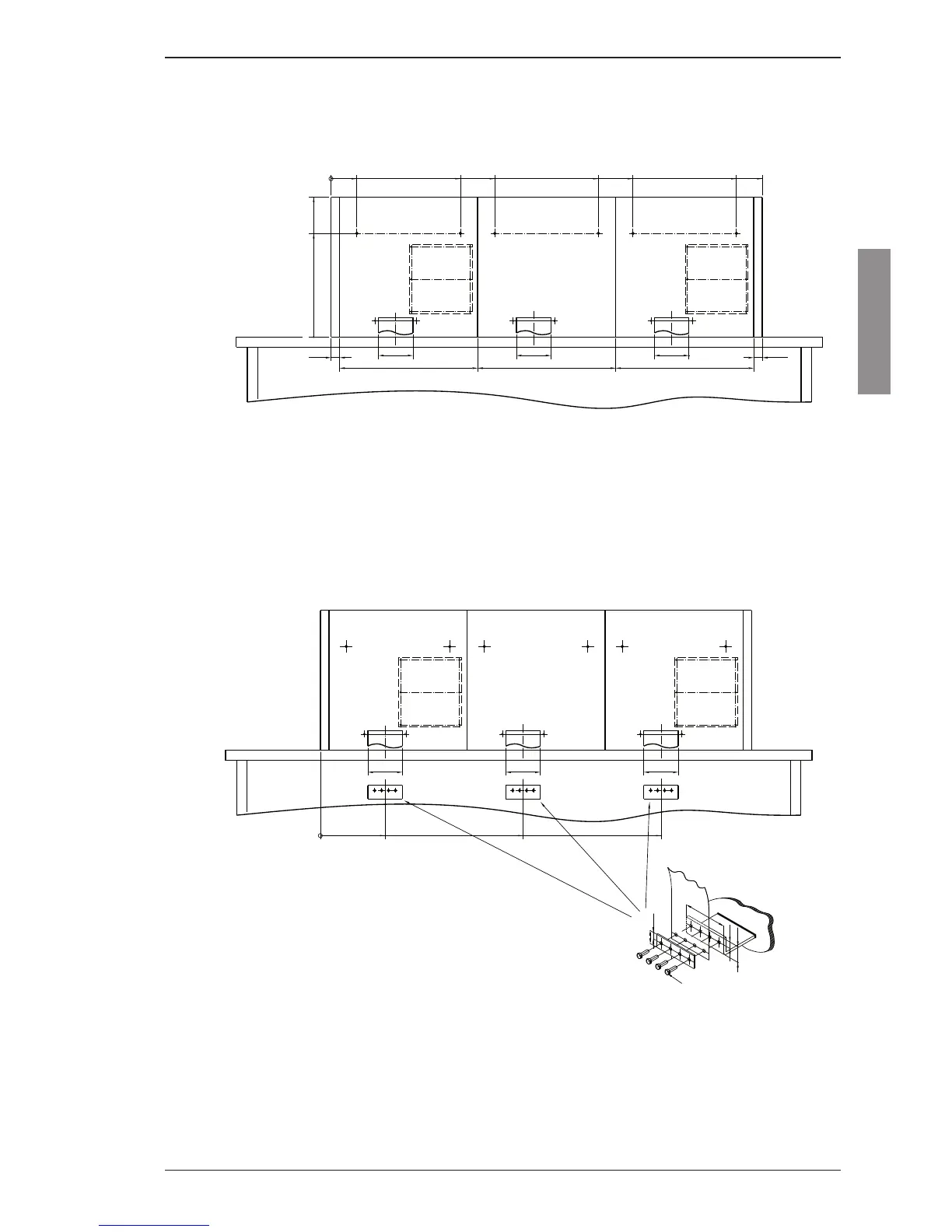

Drilling and cutting template
2.2.4 Bulkhead mounting for 3 x 400mm section
Earth stubs entry.
Earth stubs entry.
99-132409
100 100
0
405
300
**
*
*
**
**
for 400mm section.
Drilling template
Earth stubs entry.
100
**
25
25
400400400
1250 1175 875 775 475 375 75 0
* Toavoidvibrationnoise,theconsoleshouldbefastenedwithscrewsontothebulkhead.
** Space from last left- and righthand section to wall.
(22.5 + spacing = 25mm)
2.2.5 Earth stubs mounting
Earth stubs entry.
Earth stubs entry.
99-132541
100 100
Earth stubs entry.
100
100mm
40mm
15mm
30mm
copper
4 pcs. M6 bolts
Earth stubs made of steel and
welded to the steel bulkhead.
15mm
100mmx0.5mm
0
187.5
587.5 987.5
