Chapter 2: Installation
2-12
98-131571-B
Factorycongurationoftheconsole

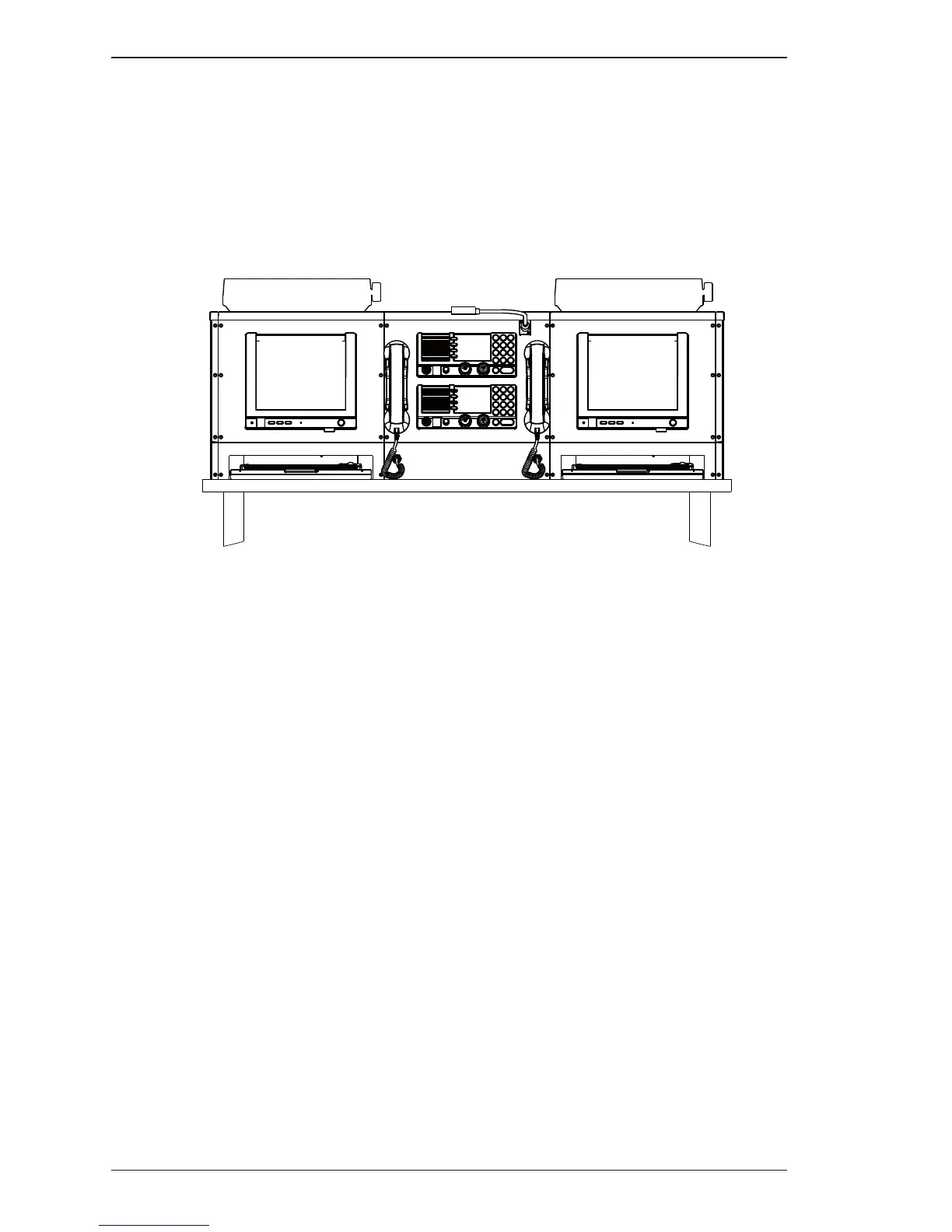

With one 6006 mini-C and the full MF/HF Radiotelex installed (Fig. 3) the MF/HF Control unit is installed as the
uppermostunitbeingpartofSystem#1orprimaryGMDSSequipmentwithassociatedRadiotelexMessage
terminal/keyboardandprinterinstalledinthelefthandsideoftheconsole.
The#1VHFisinstalledbelowtheMF/HFControlUnitaspartofthe#1SystemorprimaryGMDSSequipment.
The6006mini-CisinstalledintherighthandsideoftheconsolebeingpartofSystem#2orduplicationGMDSS
equipment.ThetwoMessageTerminals(Fig.3)areconguredwiththeRadiotelexapplicationsoftwareprogram
and the Capsat application software program respectively.
1245mm
405mm
500mm
380mm
99-132163
Telex
MF/HF
VHF
Mini-C
Fig. 3
Radiotelex printer Printer
