Chapter 1: Introduction
4 System components
System configuration
The following figure shows the units of a GNSS or DGNSS system.
System components
SAILOR 6588 DGNSS Receiver
The DGNSS Receiver is the main unit in a DGNSS or GNSS position system.
The DGNSS Receiver is always on, provided there is DC power. It has a
connector for the GNSS or DGNSS antenna, a ground connection, spring-
loaded terminals for DC power (12–24 VDC) and a dual LAN connector. The
DGNSS Receiver has spring-loaded terminals for connection to various
inputs and outputs.

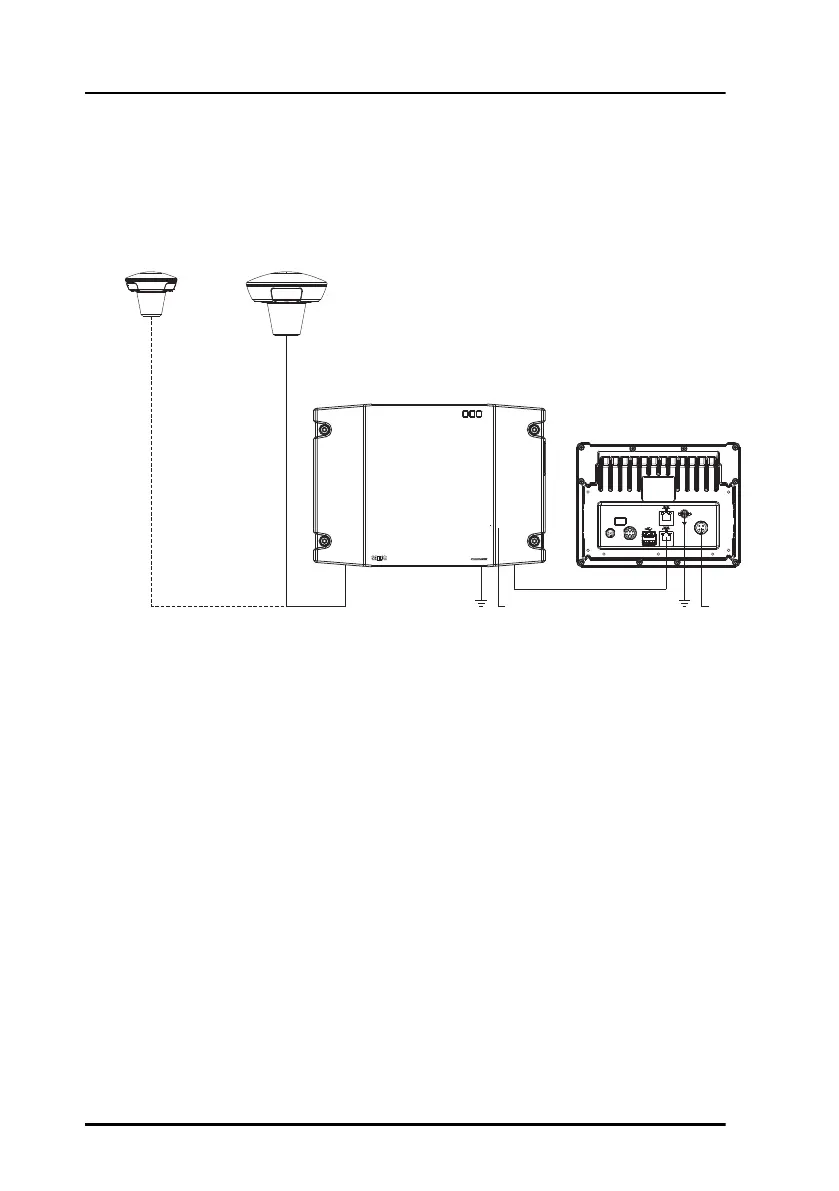

Figure 1: System configuration
SAILOR 6286
DGNSS Antenna - Active
GNSS Antenna - Active
SAILOR 6285
SAILOR 6004 Control Panel
ACC
AUX
TEST
PWR
12-24 VDC12-24 VDC
SAILOR 6588 DGNSS Receiver
DGNSS Receiver
6588
CORR
RAIM
Power
