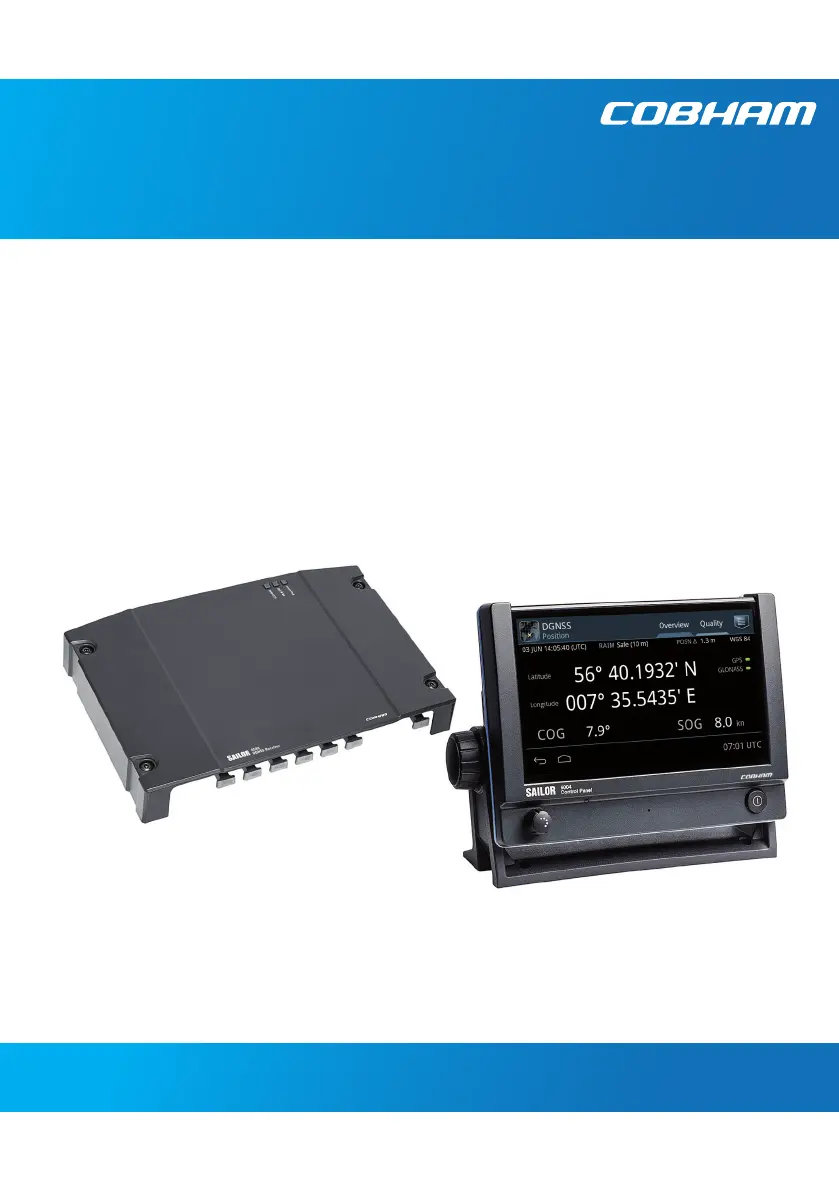

COBHAM SAILOR 6560 User Manual (English)

Questions and Answers:

J
Jessica OliverAug 2, 2025
What to do if there is no update of position data on my COBHAM SAILOR 6560?
- K
  kristin87Aug 2, 2025
  To resolve the absence of position data updates on your COBHAM Receiver, verify the power supplies, cabling, and Ethernet connection linking the GNSS/DGNSS Receiver and the Control Panel. Then, restart both units: for the GNSS/DGNSS Receiver, disconnect and reconnect the power; for the Control Panel, use the on/off button. Also, ensure that no one is logged into the Service Interface.
R
Roy BlackAug 7, 2025
Why is the position wrong on my COBHAM SAILOR 6560?
- D
  Dale ThomasAug 8, 2025
  If your COBHAM Receiver's position is wrong, verify that the correct datum is selected in the settings menu under General > Datum.
M
Mr. Michael JordanAug 12, 2025
What to do if there is no beacon correction on my COBHAM SAILOR 6560 Receiver?
- A
  angelarodriguezAug 12, 2025
  To fix the 'No beacon correction' issue on your COBHAM Receiver, first, check if Differential Beacon Correction/External RTCM Correction (DGNSS/GNSS) is enabled in Settings > Radio Beacons. Also, inspect the antenna cable connection and confirm that the beacon selection mode is correct, for example, using Automatic Mode.
G
Gina ThompsonAug 17, 2025
How to fix 'No position fix with GPS and/or GLONASS' on COBHAM Receiver?
- Z
  Zachary WallerAug 17, 2025
  To resolve the 'No position fix' issue on your COBHAM Receiver, check the antenna cable connection to the antenna and ensure the antenna has a clear line of sight to the satellites.
J
Jamie HendersonAug 21, 2025
How to troubleshoot a COBHAM SAILOR 6560 Receiver that fails to turn on?
- L
  Lonnie TaylorAug 21, 2025
  To address the issue of the DGNSS Receiver by COBHAM failing to turn on, ensure the white wire in the power cable is connected to the black wire (-DC) if the power cable is directly connected to the GNSS/DGNSS Receiver. Verify the 12-24 VDC on the power cable using a voltmeter and check the fuse.
Z
zfergusonAug 27, 2025
What to do if there is no SBAS correction on my COBHAM Receiver?
- J
  Jennifer ReynoldsAug 27, 2025
  To resolve the issue of no SBAS correction on your COBHAM Receiver, check if SBAS Correction Systems is enabled in the settings.

COBHAM SAILOR 6560 Specifications

General

Channels	72
Sensitivity	-160 dBm
Tracking Sensitivity	-160 dBm
Velocity Accuracy	0.1 m/s
Input Voltage	10-32 V DC
Output Interface	NMEA 0183
Position Accuracy	2.5 m
Time Accuracy	1 μs
Power Supply	10-32 V DC
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Interfaces	RS-232

Summary

Safety and General Information

Safety Summary

General safety precautions during operation, service, and repair.

Warranty, Installation, and Service

Details on warranty limitations, installation, and service requirements.

Compass Safe Distance

Specifies the minimum safe distance from magnetic compasses.

Preface and Manual Information

Preface and Approvals

Introduction to the manual and product approvals.

About the Manual and Intended Readers

Explains the manual's scope and target audience.

Chapter 1 Introduction

Introduction to GNSS and DGNSS

Explains the fundamental concepts of GNSS and DGNSS technologies.

The GNSS or DGNSS System

Details system variants, features, and capabilities.

System Variants

Lists the different available system configurations.

System Configuration Overview

Illustrates the physical connection of system units.

SAILOR 6588 DGNSS Receiver

Description of the main GNSS/DGNSS receiver unit.

SAILOR 6285 GNSS Antenna - Active

Description of the SAILOR 6285 GNSS Antenna.

SAILOR 6286 DGNSS Antenna - Active

Description of the SAILOR 6286 DGNSS Antenna.

SAILOR 6004 Control Panel

Description of the SAILOR 6004 Control Panel user interface.

Chapter 2 Operation

Getting Started

Guides the user through initial setup and basic operation.

Control Panel Display Adjustment

Explains how to adjust the display brightness.

Startup Screen and Navigation

Explains the startup screen, bottom bar, and navigation icons.

GNSS/DGNSS Menu Screen

Details the main menu options for system functions.

Position Monitoring

Position Screen Overview

Provides an overview of current position and status information.

Top Information Line Details

Explains the elements displayed in the top information line.

COG/SOG and Quality Tabs

Describes Course Over Ground, Speed Over Ground, and quality data tabs.

Satellite, Beacon, and Message Lists

Details how to view lists of GNSS/SBAS satellites and beacons.

Anchor Watch

Anchor Watch Feature

Explains the feature for monitoring vessel position while anchored.

Trip Counters

Trip Counter Functionality

Explains how to view and reset trip and total distance counters.

System Settings

Changing System Settings

Guides on how to modify system settings.

General Settings

Covers configuration options for GNSS systems, datum, and smoothing.

Radio Beacon Settings

Explains configuration for differential corrections and beacon selection.

Alert Settings and Password Protection

Describes how to configure alerts and the password protection mechanism.

Alert and Notification Management

Introduction to Alerts and Notifications

Explains how alerts are reported, prioritized, and acknowledged.

Icons for Alerts and Notifications

Lists and describes the visual indicators for alerts and notifications.

Alert History and Acknowledgement

Details how to view past alerts and how to acknowledge active alerts.

List of Alerts

Provides a detailed list of possible alerts, their consequences, reasons, and remedies.

Multiple Receiver Systems

Multiple Receivers Configuration

Explains setup and operation of systems with multiple GNSS/DGNSS receivers.

Alerts in Multi-Receiver Systems

Details how alerts appear and are identified in multi-receiver setups.

Chapter 3 Service & Maintenance

Routine Maintenance and Support

Covers basic maintenance checks and how to contact support for assistance.

Software Version Information

Guides on how to check the software version of the units.

Service Interface Access

Explains how to access the service interface for software updates.

Service Interface Login

Details the login process for the service interface.

System LED Indicators

Describes the meaning of the Power, RAIM, and CORR LEDs on the receiver.

Troubleshooting Guide

Troubleshooting Common Issues

Provides guidance to diagnose and resolve typical system problems.

Service, Repair, and Part Numbers

Outlines procedures for product failure, repair, and lists applicable part numbers.

Included Accessories

Lists the accessories included with the GNSS/DGNSS system.

Removing the Unit Cover

Step-by-step instructions for removing the receiver's cover.

Fuse Replacement and Shipping Procedures

Details how to replace the fuse and repack the unit for shipment.

Appendix A Technical Specifications

SAILOR 6588 GNSS/DGNSS Receiver Specs

Technical details of the main GNSS/DGNSS receiver unit.

SAILOR GNSS Antenna Specifications

Technical details for the SAILOR 6285 GNSS Antenna.

SAILOR DGNSS Antenna Specifications

Technical details for the SAILOR 6286 DGNSS Antenna.

SAILOR 6004 Control Panel Specs

Technical details of the SAILOR 6004 Control Panel.

Supported NMEA Sentences

Lists the NMEA data sentences supported by the system.

Glossary

Index
