Operation
Position
The Position screen gives an overview of the current position and other
relevant status information. This screen has the tabs Overview and
Quality. Lists of GNSS satellites, SBAS satellites, beacons and beacon
messages can be accessed through the icon in the upper right corner. When
no position is calculated or the connection to the GNSS/DGNSS Receiver is
lost, the position information in this screen is frozen and the text color is
changed to yellow.
The following paragraphs describe the Overview tab.
Top information line
The UTC time in the position screen is the time of the displayed position.
When the position is lost this time does not change.
The RAIM status gives an indication of the quality of the calculated
position. A result of the RAIM calculation is the estimated position

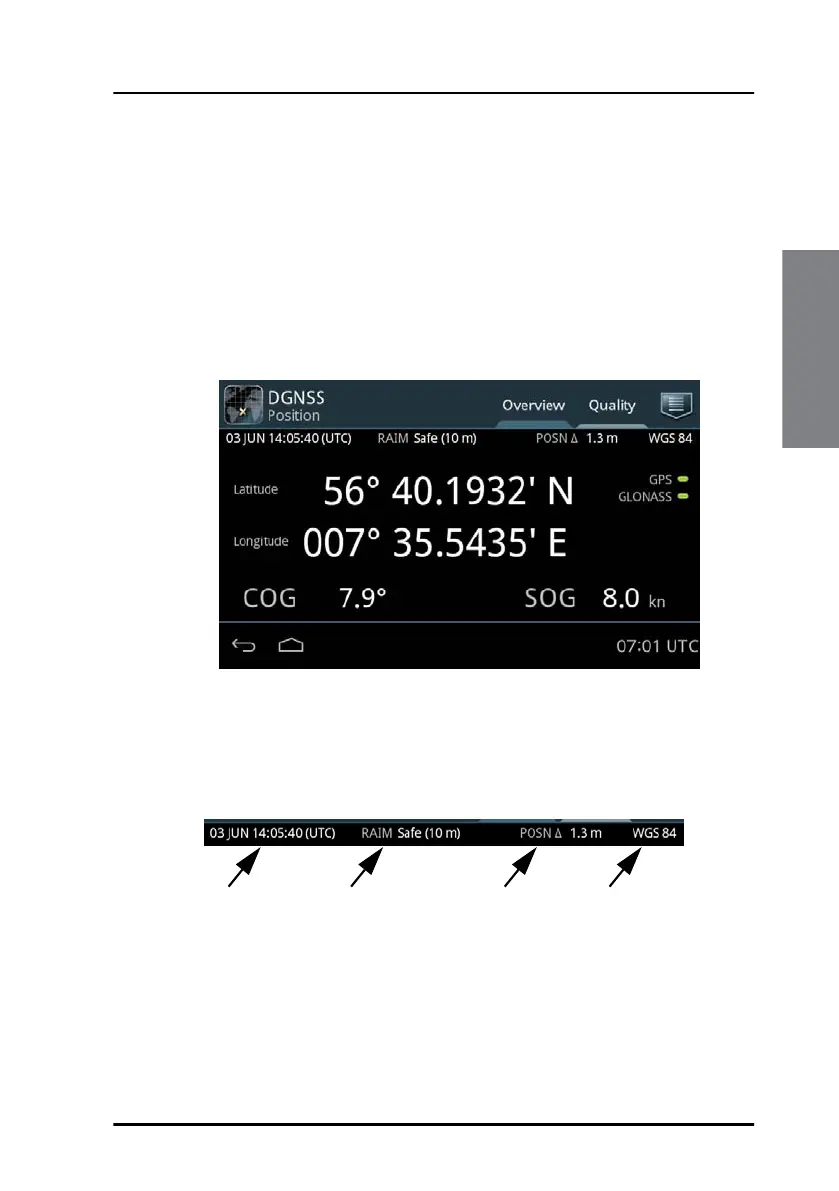

Figure 10: Position screen (example)
Figure 11: Top information line
UTC time RAIM (Limit) Position delta Datum
To Next Page
