Chapter 2: Operation
16 Position
Lists of GNSS and SBAS satellites, beacons and beacon messages
Tap to display lists and details of the following:
• GNSS satellites (GPS or GLONASS)
• SBAS satellites
• Beacons
1
• Beacon messages
1
In the list of SBAS satellites you can tap a satellite and display further
details.
DGNSS only: In Beacons you can do the following:
• Tap Current to see the currently selected beacon.
• Tap Nearest to see a list of the nearest 10 beacons and select one.
• Tap All to see a list of all beacons known to the DGNSS Receiver.
The beacons shown in the tab All are from the internal database. The
database is updated from almanac data sent from the beacon stations
around the world. The database can contain 2000 stations.
The signal strength is good if it is higher than 30 dBV. The signal-to-noise
ratio is good if it is higher than 8 dB.
1. DGNSS only.

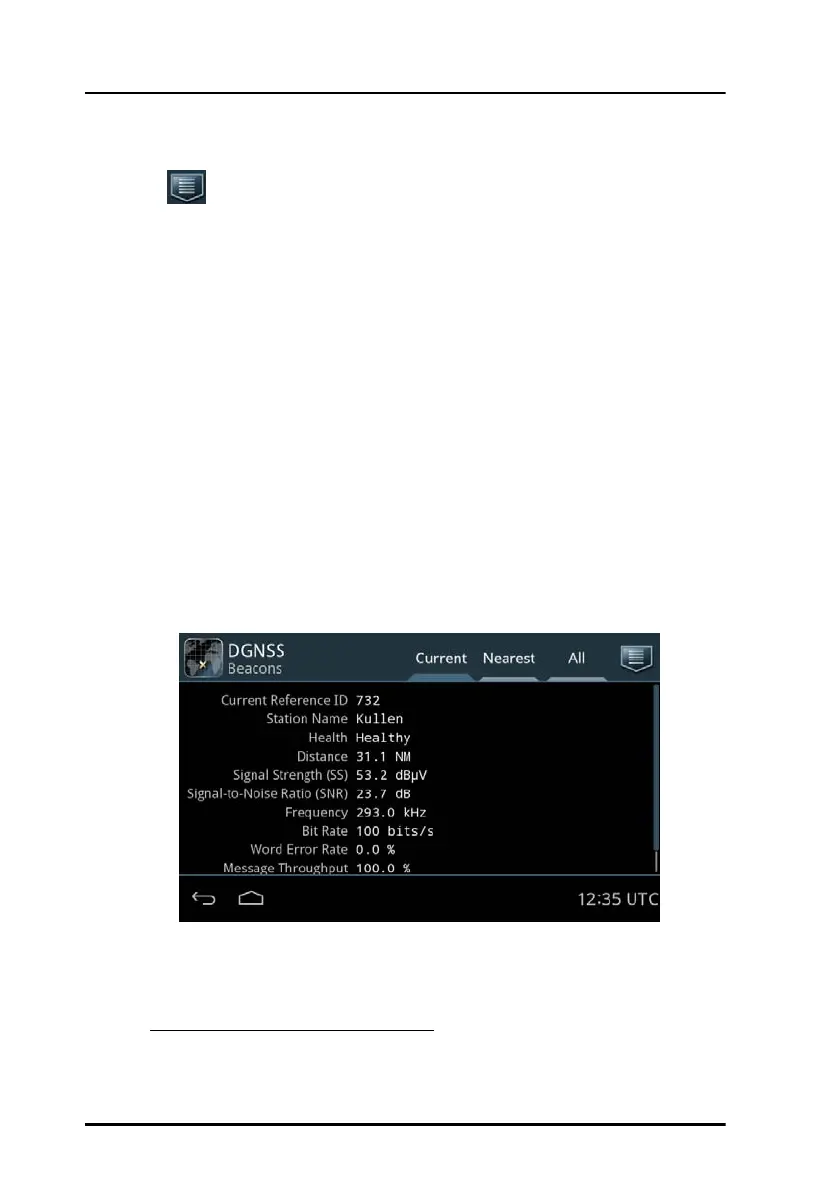

Figure 17: DGNSS Beacons - Current beacon
