32 Alert and notification management
Icons for alerts and notification

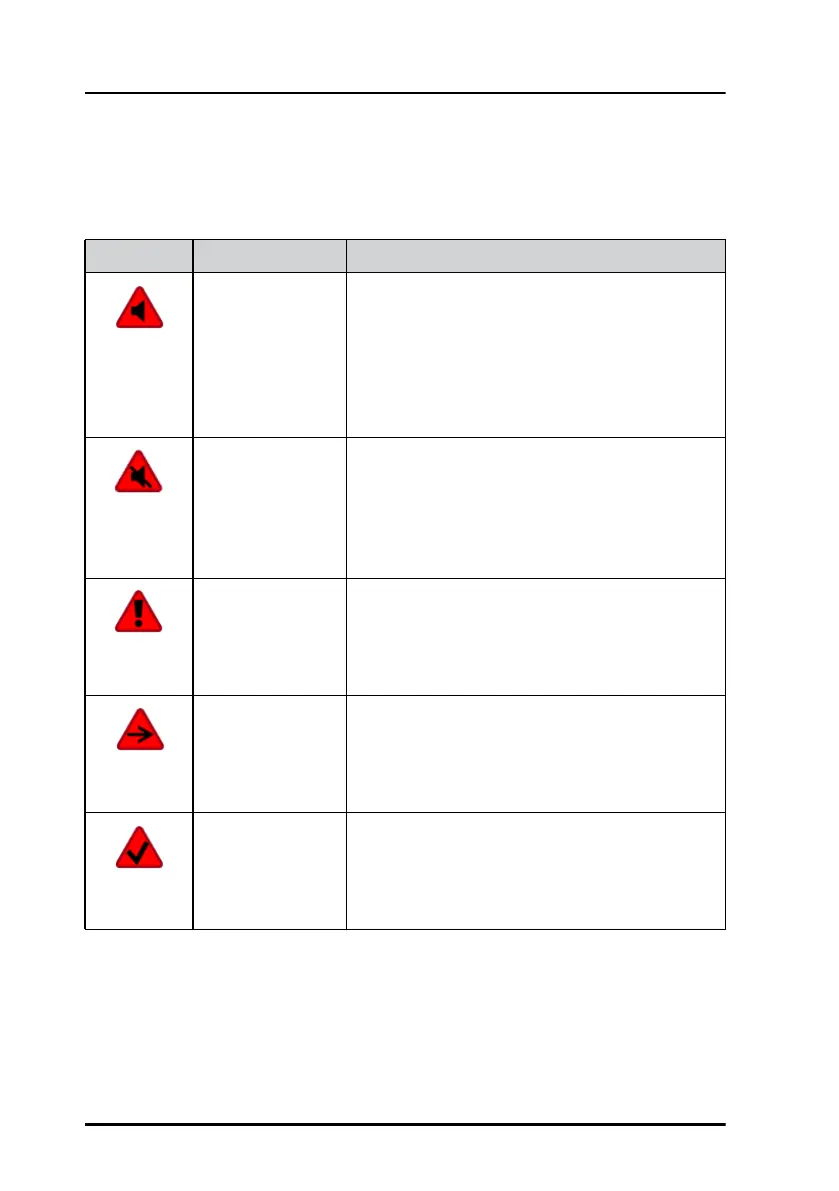

The following table shows the icons for alerts and notification with a
description.
Icon Name Icon description
Active -
unacknowledged
alarm
A flashing red triangle. A symbol of a
loudspeaker in the middle of the triangle. This
alert is accompanied by an audible alarm signal
(3 beeps).
This icon is displayed when there is an active
unacknowledged alarm.
Active – silenced
alarm
A flashing red triangle. A symbol of a
loudspeaker with a prominent diagonal line
through it.
This icon is displayed when there is an active
silenced alarm.
Active –
acknowledged
alarm
A red triangle. An exclamation mark in the
middle of the triangle.
This icon is displayed as long as the alarm
condition is present.
Active -
responsibility
transferred alarm
A red triangle. An arrow pointing towards the
right in the middle of the triangle.
This icon is displayed as long as the alarm
condition is present.
Rectified –
unacknowledged
alarm
A flashing red triangle. A tick mark in the middle
of the triangle.
This icon is displayed when the alarm condition
has been rectified but not yet acknowledged.
Table 8: Icons for alerts and notification
