98-175666-D Chapter 3: Setup of the antenna 3-38
4. Type the user name admin (default) and the password iDirect (default).
5. In the menu Commissioning click One Touch Commissioning.
6. Click Start. One Touch Commissioning takes place. When commissioning is
completed the antenna will search for the I5 satellite with the highest elevation.
7. The antenna will find the satellite and the modem will perform the necessary steps
to enter the network (software upgrades, if available).
8. The web interface of the iDirect core module will indicate the modem in the
network and the modem status is shown in the display in the menu MODEM of the
SAILOR XTR GX-R2 web interface.
9. When commissioning is completed, test all subscribed services.
10. Exit the iDirect web interface.
3.3.4 Modem access (port forwarding)
You can access the modem (e.g. modem web interface) through the BDU using port
forwarding. To establish a connection to the modem via the BDU, do as follows:
1. In the BDU web interface, select Service > Modem.
2. Select one of the following methods to access the modem.
• HTTP tunnel to modem (port 8080)
• HTTPS tunnel to modem (port 8443)
• SSH tunnel to modem (port 8022)
• Optional tunnel target IP address (blank to disable)
3. If not automatically set, you must enter the modem IP address here. It cannot be
left blank.
4. Check that the modem IP address is on the same subnet as the set in the modem
profile.
5. Click Apply.
Example: To access the web interface of your modem using HTTPS, select HTTPS
tunnel to modem (port 8443) and click Apply.
Then, in the address bar of your browser, enter:
https://<BDU IP address or hostname>:8443
You should now see the web interface of the modem.

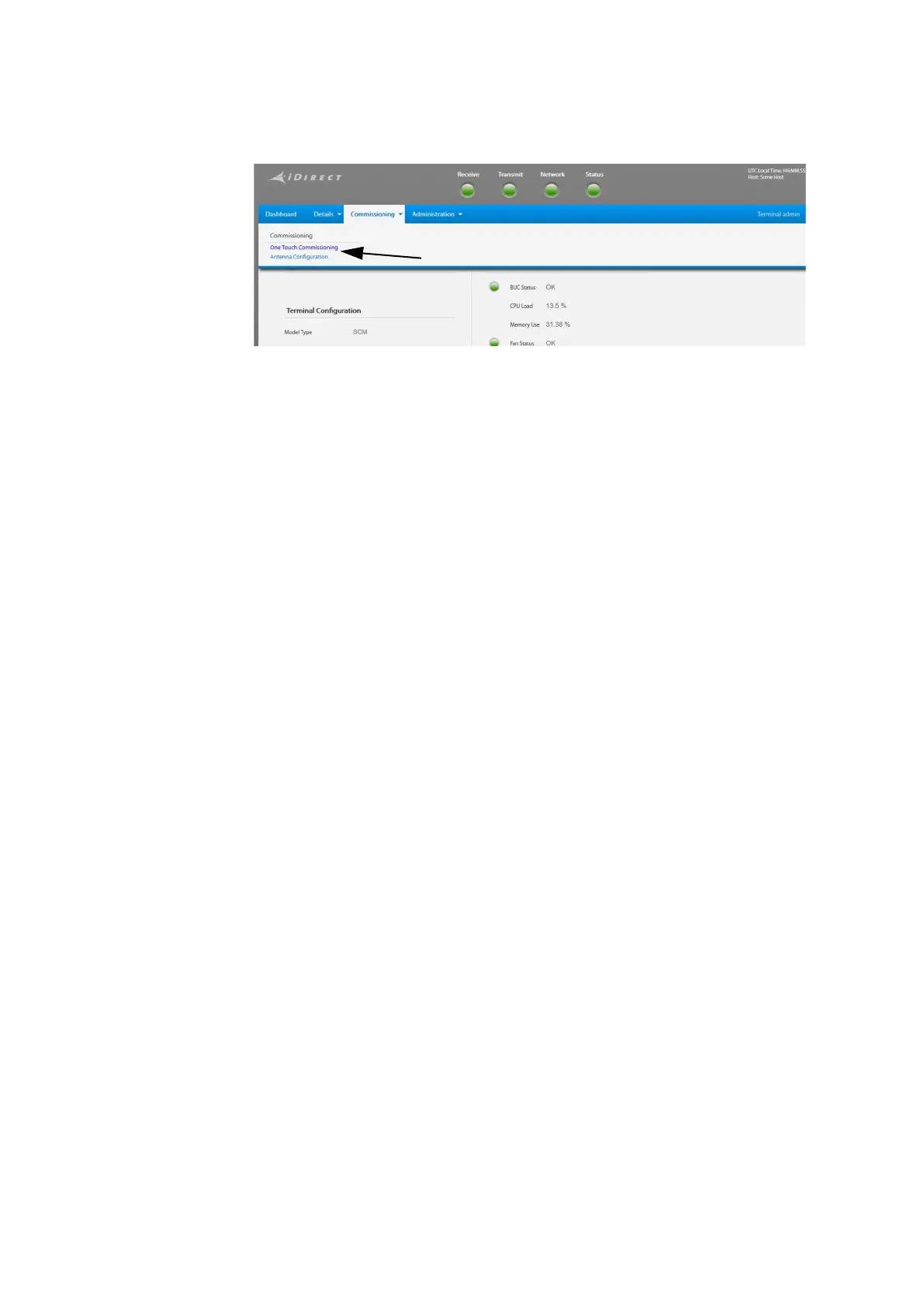

Figure 3-26: Unified web interface of the Core Module
