98-175666-D Chapter 3: Setup of the antenna 3-40
3.3.6 Fixed TX gain principle
The SAILOR XTR GX-R2 uses a TX IF gain concept. After calibration it provides a fixed
average gain from the TX-port of the BDU to the input of the BUC. Advantages of the
fixed TX IF gain principle are:
• Average TX IF gain independent of antenna cable length
1
• Compatibility with the TX Power control feature
When installing the SAILOR XTR GX-R2 you make a cable calibration. At that point every
installation adjusts to the same average TX IF gain regardless of the ADU cable length.
Additionally the SAILOR XTR GX-R2 system also compensates for variations of the
cable characteristics or loss over frequency.
3.3.7 Events
This page shows a detailed list of active events and notifications including the time of
the first occurrence, ID and severity of the event message, and a short text describing
the error. Events can be of the type WARNING or ERROR. The event time is UTC time.
Active events are cleared from the event list when the error is cleared. They are moved
to the section Cleared events last 24 hours and are displayed for 24 hours. All entries
in this section are cleared automatically after 24 hours and after restart of the system.
When an event is registered, the web interface shows an event icon (bell) in the top bar
as long as the event is active. The number of new events since last viewing is also
shown. To view the event list with active events, click the event icon from the icon bar
at the top of the web interface, or select Service > Events.
1. You find the maximum allowed cable loss at Prerequisites on page 2-18.

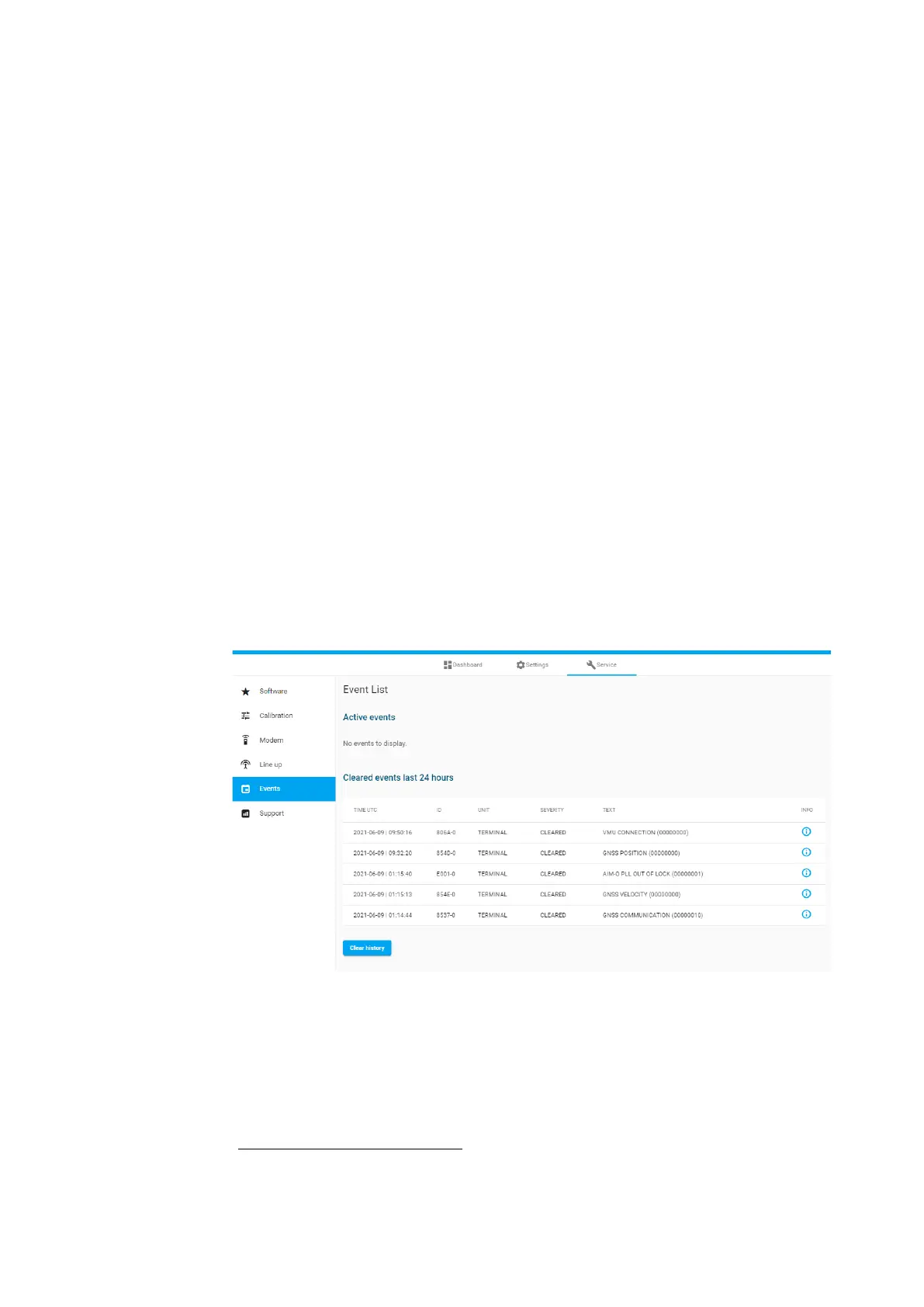

Figure 3-28: Service - Event list (example)
