COBHAM Satcom SAILOR XTR GX-R2 User Manual

SAILOR XTR GX-R2 system
98-175666-D Chapter 1: Introduction 1-2

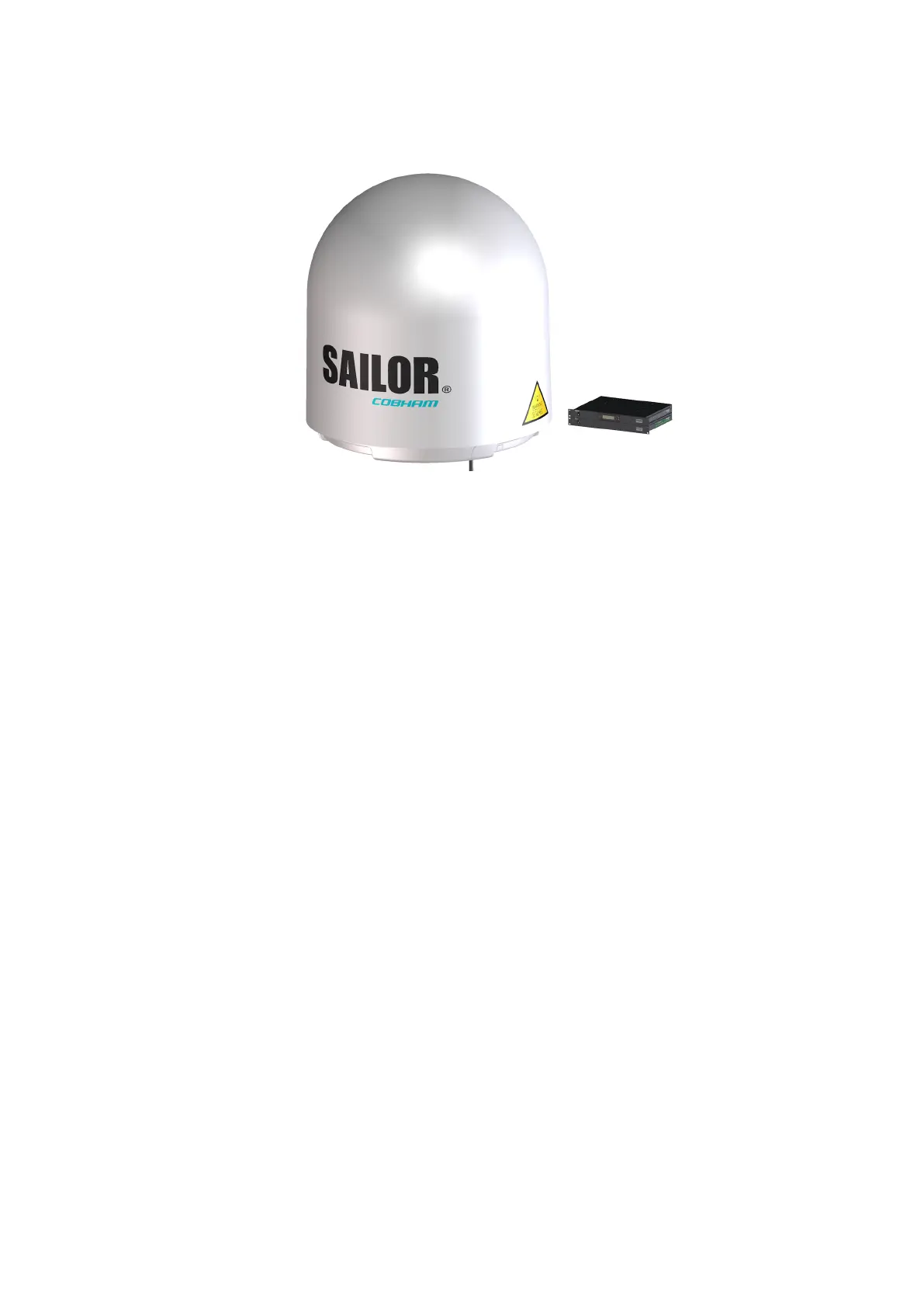

The following figure shows the SAILOR XTR GX-R2 system.
System features
 Single 50 Ohm coax cable for the ADU
 One Touch Commissioning
 GX-R2 support, wideband and dual polarisation.
 Standard 4.5W or High Power 9W BUC.
 Gyro-free operation
 Ka-to-Ku-band conversion
 Dual antenna operation to minimize blocking issues
 SNMP traps, IoT and syslog support for real-time monitoring
 REST API
 Remote service access via FleetBroadband, Iridium, LTE or other IP connection
 Remote or local simultaneous software update of ADU and BDU via PC and Internet
browser
 Built-in test equipment (BITE) for troubleshooting purpose
 BDU with 5 x LAN, NMEA 0183, RS-232 and RS-422, TX Mute
 GMU with 4 LAN, RS-232 and RS-422 connector.
 No scheduled maintenance.
 Few spare parts, easy to service
 Support for Cobham ConnectIT
 Prepared for third-party IP devices in ADU
The system is set up using the built-in Installation wizard.
Figure 1-2: ADU, BDU and GMU
Above Deck
Unit (ADU)
Below Deck Unit (BDU)
GX Modem Unit (GMU)
