Configuration of the dual antenna solution
B.3.2 To configure the Master BDU
The configuration of the master BDU depends on which ports are used and how your
network has been configured.
Configure the Master BDU VSAT profile exactly the same way as a single SAILOR XTR
GX-R2 system. Recommended settings are shown in the following figure.
After the Master BDU has been configured, do as follows:
1. Click SETTINGS > Dual antenna.
2. Select Set this antenna as master in dual configuration and click Apply.
3. Dual antenna mode, select Automatic Dual Mode.
4. If needed, click Switch to the other antenna in the dual antenna system.

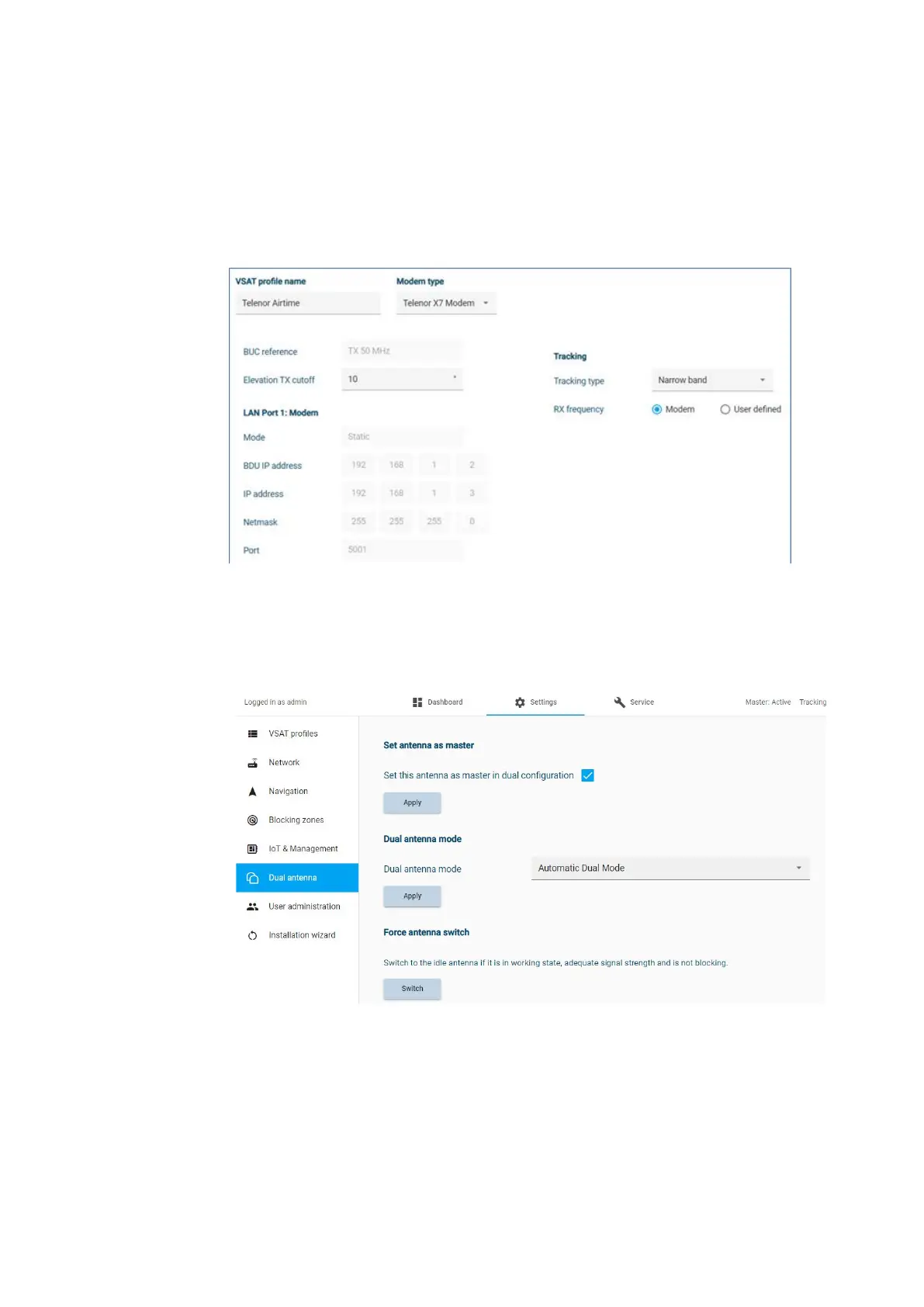

Figure B-5: Master BDU, VSAT profile settings
Figure B-6: Enabling dual-antenna mode in the Master BDU
