COBHAM Satcom SAILOR XTR GX-R2 User Manual

Site considerations
98-175666-D Chapter 2: Installation 2-6
Blocking zones – azimuth and elevation
The installation may require to set up blocking zones for the ADU, i.e. areas where the
ADU will not transmit and areas where transmit power is potentially dangerous for
persons frequently being in these zones. 8 blocking zones can be set up. Each blocking
zone is set up with azimuth start and stop, and elevation angle. The blocking zones are
set up in the built-in web interface of the BDU.

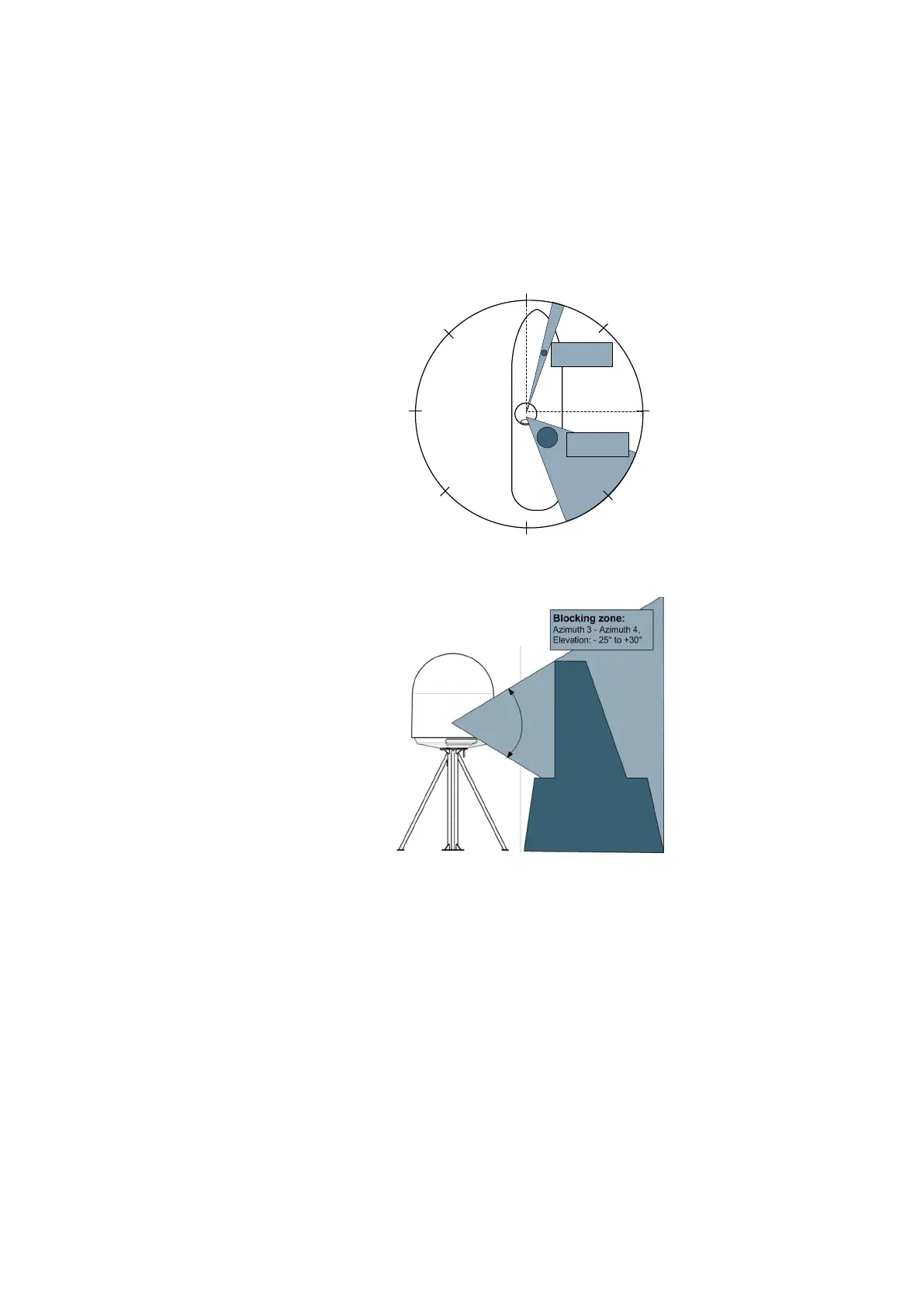

Figure 2-3: 2 Blocking zones with no-transmit zones, azimuth (example)
Figure 2-4: Blocking zone with no-transmit zones, elevation angle (example)
Antenna
360°
000°
45°
90°
180°
135°225°
270°
315°
Obstruc
-tion
Azimuth 1
Azimuth 2
Azimuth 3
Azimuth 4
Blocking zone:
Azimuth 1 - Azimuth 2,
Elevation: -25° to 50°
Blocking zone:
Azimuth 3 - Azimuth 4,
Elevation: - 25° to +30°
