COBHAM Satcom SAILOR XTR GX-R2 User Manual

Site considerations
98-175666-D Chapter 2: Installation 2-13

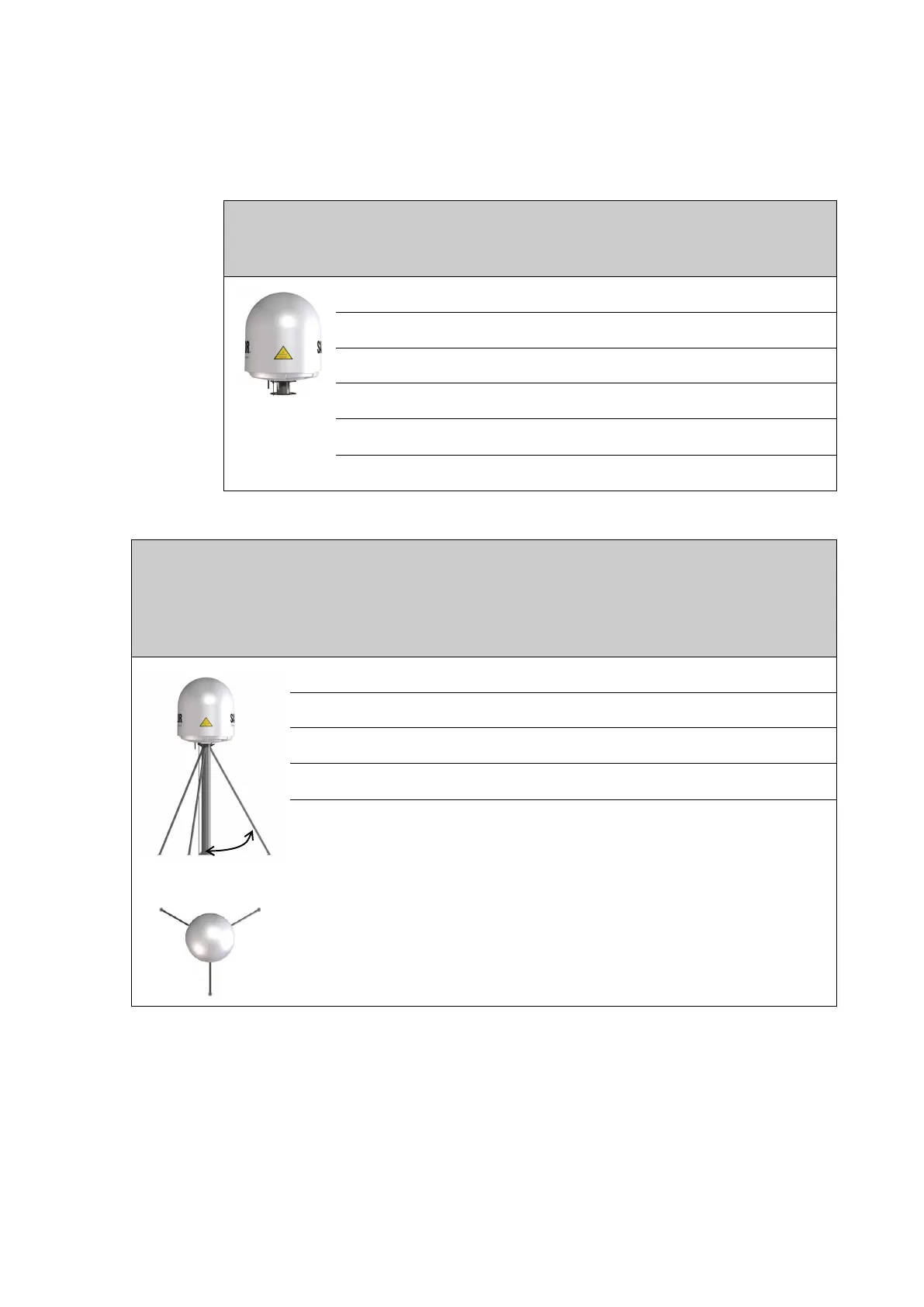

consider the environment and characteristics of the ship before deciding on the mast
dimensions.
Mast without
braces
Max. free mast
length (steel), (m)
Outer
Diameter (mm)
Wall
Thickness
(mm)
Weight
(kg/m)
0.4 90 5 10.8
0.6 116 5 13.9
0.8 142 5 17.0
1 168 5 20.2
1.2 194 5 23.3
1.4 220 5 26.4
Table 2-6: Mast dimensions without braces (S600 antenna)
Mast with 3 braces
Max. free
mast length
(steel), (m)
Outer
Diameter
(mm)
Wall
Thickness
(mm)
Outer
Diameter
for brace
(mm)
Thickness
for brace
(mm)
Brace
connection
point from
top of mast
(m)
1.5 80 5 30 5.0 0.2
2.0 115 5 50 5.0 0.4
2.5 150 5 65 5.0 0.6
3.0 185 5 80 5.0 0.8
3.5 220 5 100 5.0 1.0
Table 2-7: Mast dimensions with 3 braces (S600 antenna)
30-40°
