Maintenance and fault finding
94
Block Up Converter Systems 6700/6900 series User Guide

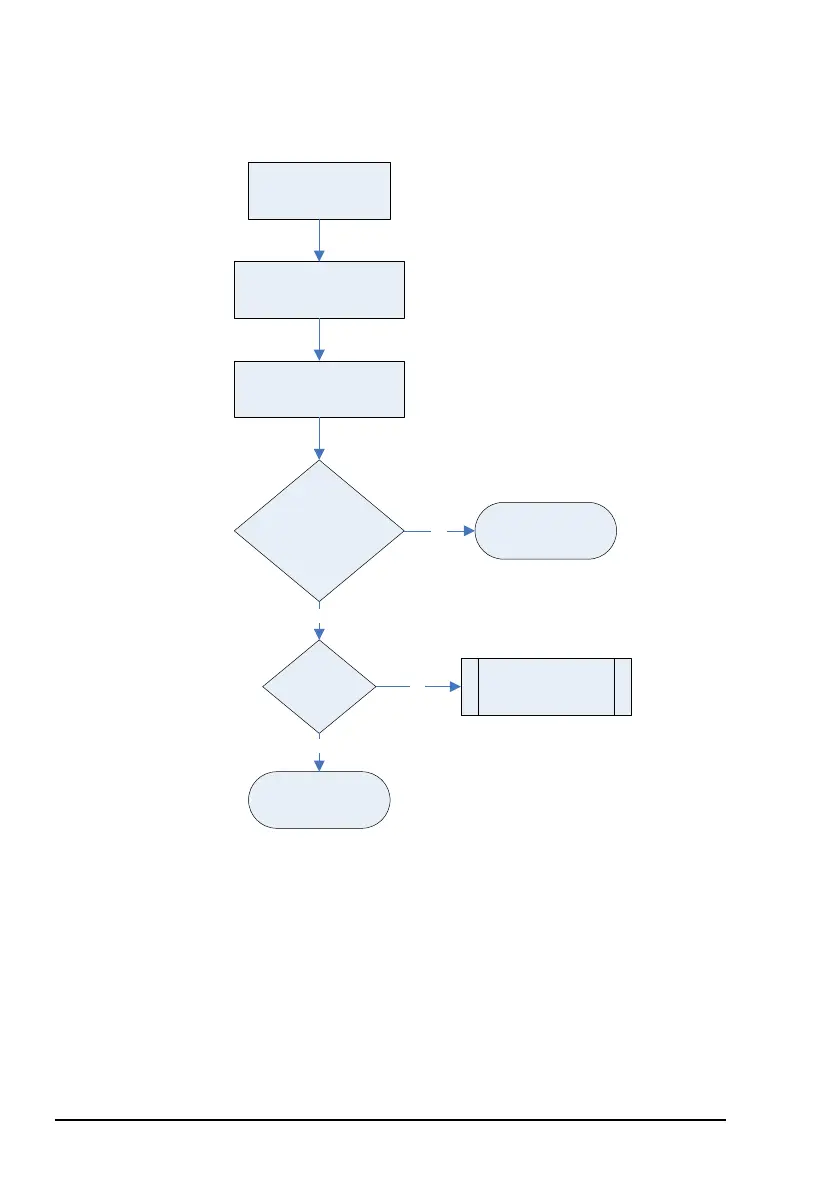

Figure
23:
BUC fan fault diagnosis char
t
1
BUC fan fault
diagnosis chart 1
Reset BUC using
RST
and
RLF
commands.
Is fan fault
still present?
Check fan fault using
VFS
command.
Are fan(s)
running?
See BUC fan fault
diagnosis chart 2.
Fan operation
normal.
BUC faulty.
Refer to Codan.
No
Yes
No
Yes
103
105
