Codan 6700 Series User Manual

Overview
Block Up Converter Systems 6700/6900 series User Guide 9

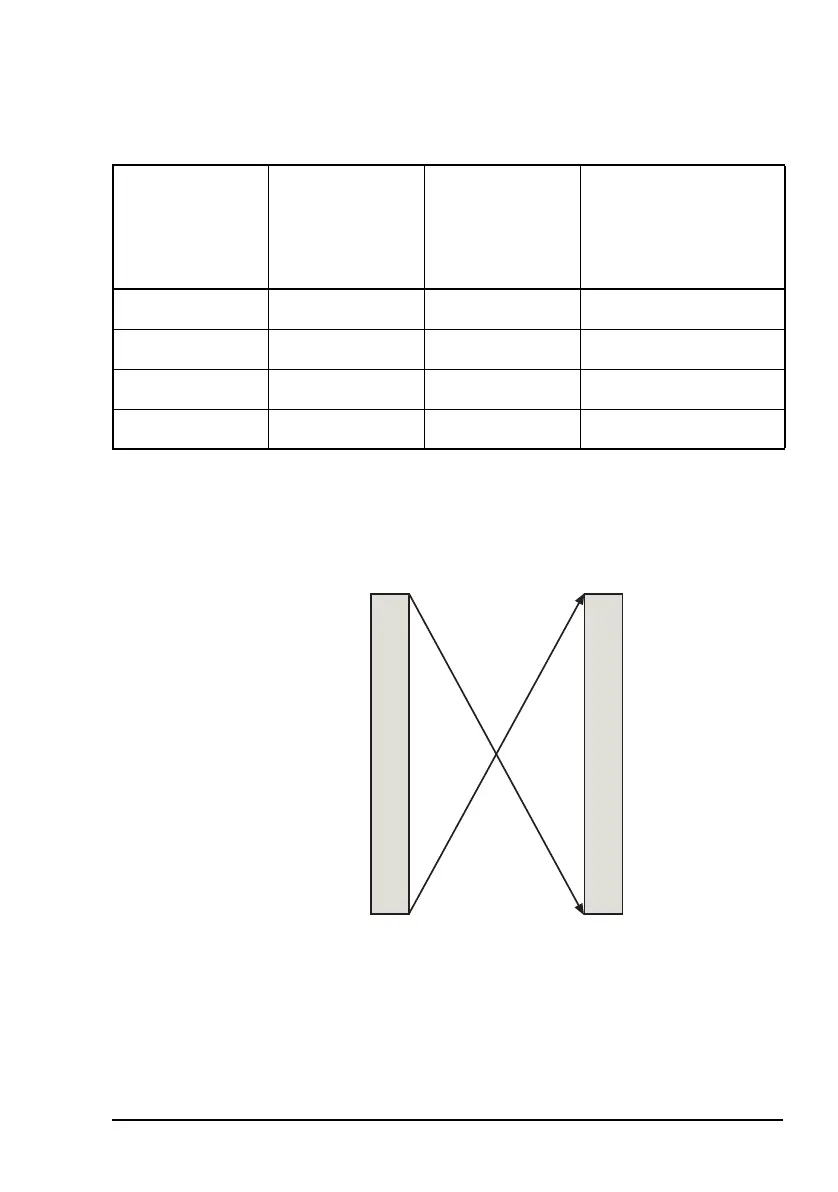

Figure 3: C-Band frequency conversion plan at an LO
frequency of 7300 MHz
Table 3: Frequency ranges for C-Band BUCs
(Extended)
LO frequency
(MHz)
f
LO
Tuning range of
L-Band
(MHz)
f
IF
Output
frequency
(MHz)
f
RF
See...
7300 950–1450 5850–6350 Figure 3 on page 9
7375 950–1525 5850–6425 Figure 4 on page 10
7600 950–1750 5850–6650 Figure 5 on page 10
7675 950–1750 5925–6725 Figure 6 on page 11
950 MHz
IF input RF output
450 MHz1 350 MHz6
850 MHz5
