Horizon Imager User’s Manual 2-7
6HWWLQJ8SWKH,PDJHU

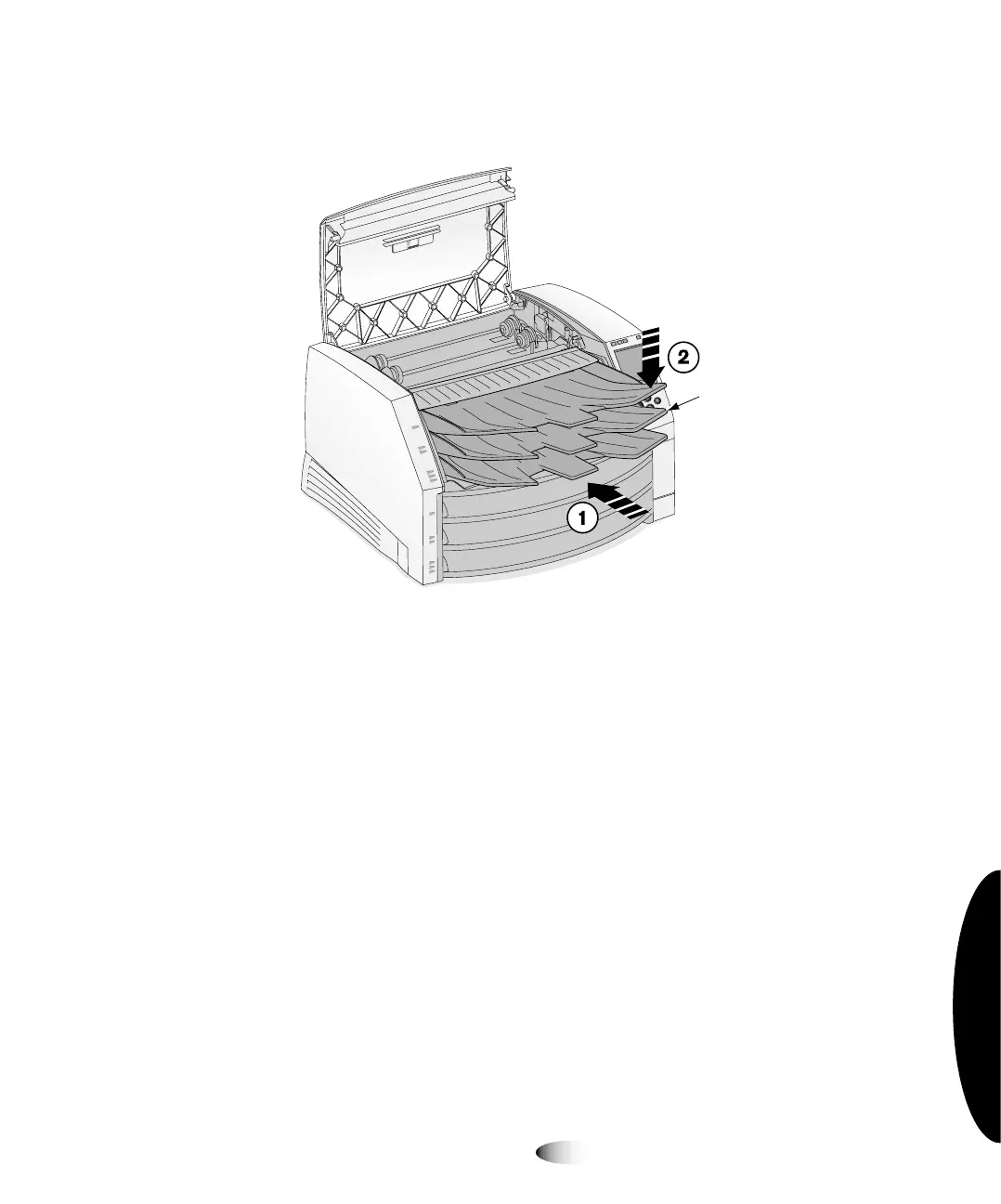

13. Place the receive trays into t he imager, as shown in the following
figure.
14. Close the top cover.
You are now ready to connect the Ethernet cable to the imager.
Refer to the next topic.
Receive
trays
