Note: Make sure to set focus for the reader before fitting the lens cover.

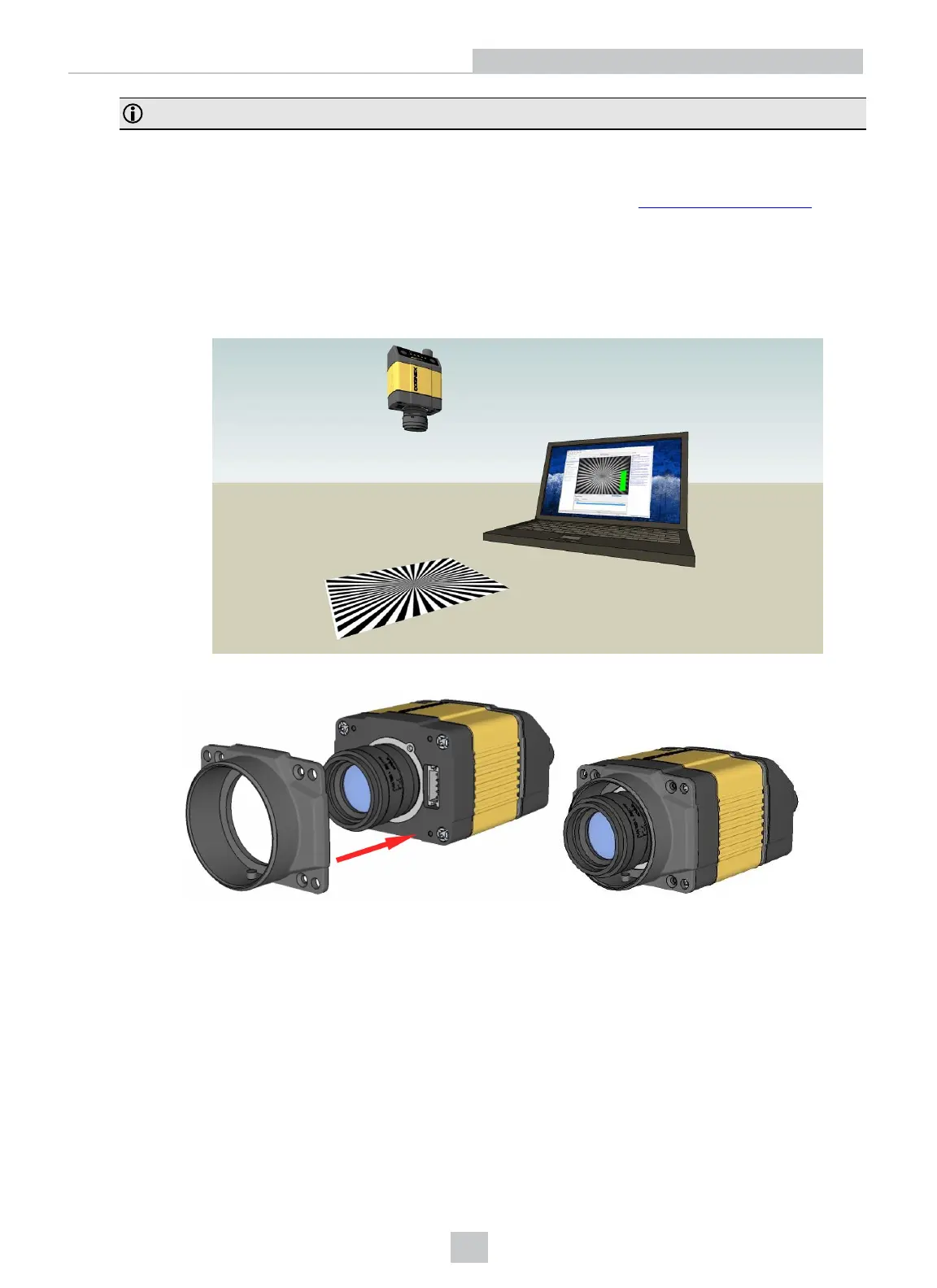

a. Connect the reader to the DataMan Setup Tool.
b. Navigate to the Optimize Image pane, and on the Basic tab, click the triangle on the Live button to
access the drop-down list, and check the Focus Feedback option. See Setting Focus on page30
c. Use the DataMan Focus Target template, available through the Windows Start menu or the DataMan
Setup Tool Help menu, to align the edge of the reader body to the line marked with the target distance
used in your application.
d. Adjust focus for maximum sharpness. Enhance image quality in the DataMan Setup Tool for better
guidance.
4. Attach the C-Mount cover base.
