Cognex DataMan 374 - Page 22

20
DEC 2021
INSTALL GUIDE
2
SOFTWARE SETUP
COGNEX DataMan 374
REV 00

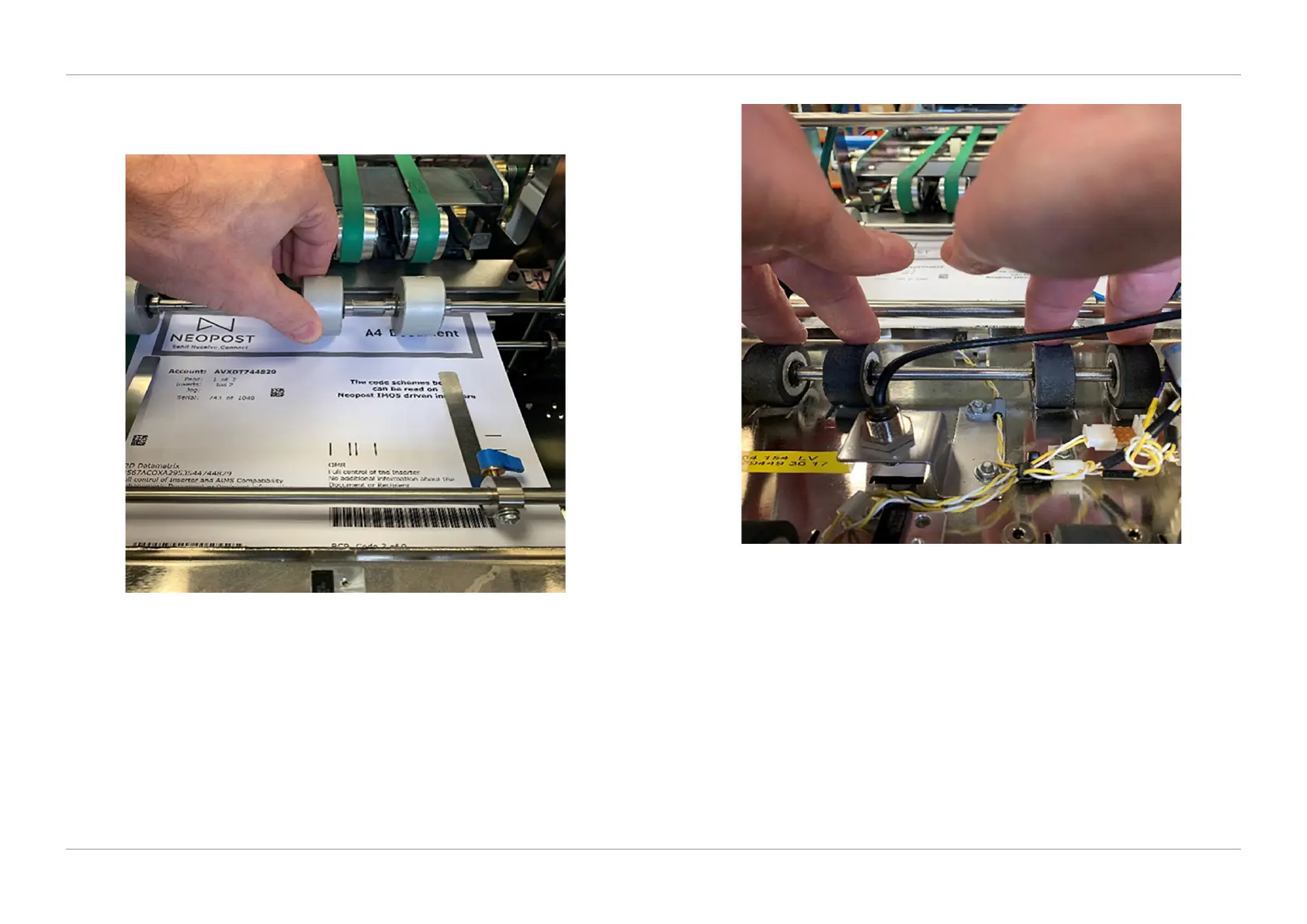

6. Use the two sets of rollers as shown in Figure 2.14 and Figure 2.15 to position
the document.
QTL-RND-OPS-00000329-A-00
Figure 2.14 – Positioning the document
QTL-RND-OPS-00000330-A-00
Figure 2.15 – Positioning the document
