DMA-IBASE-BT-XX

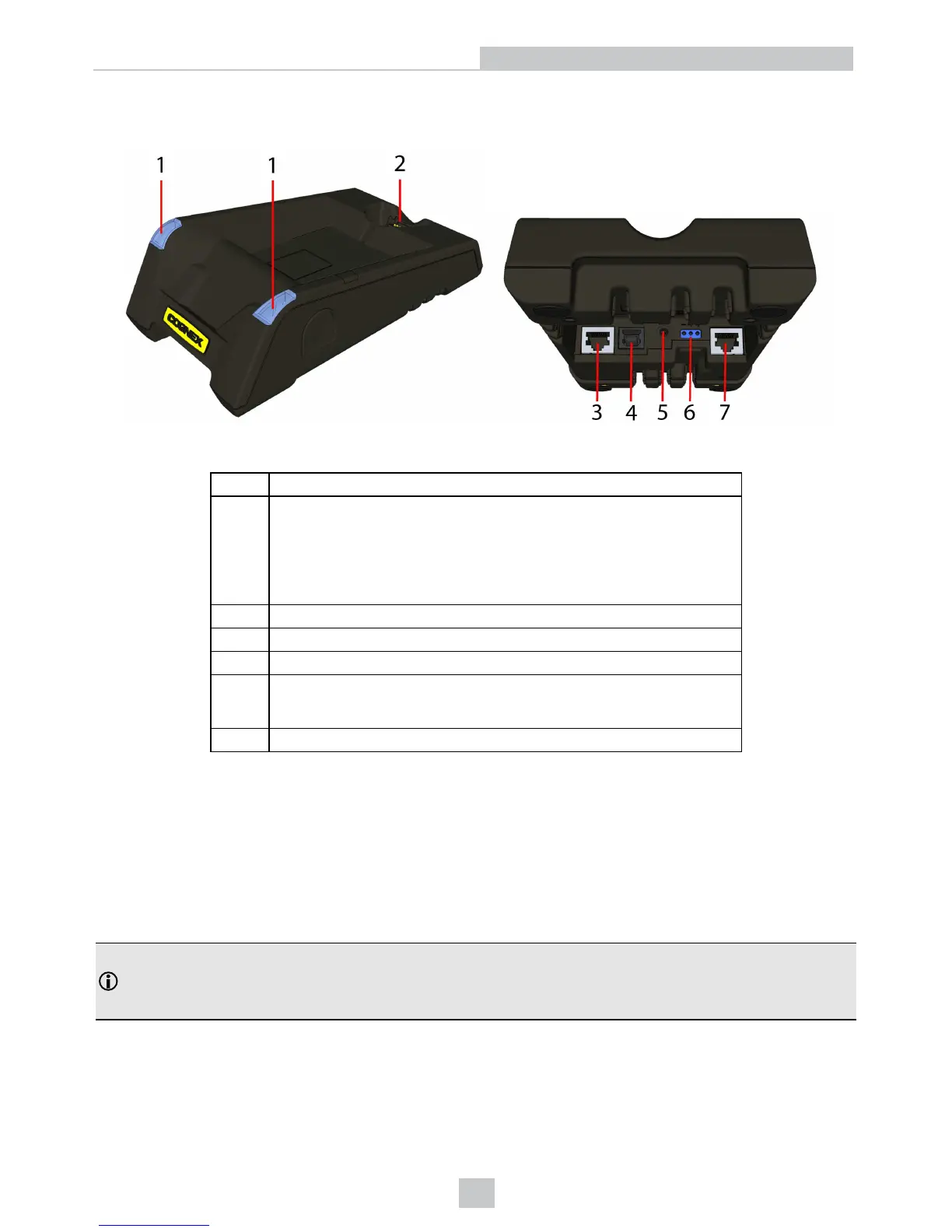

1 Base station status indicators
2
Connection point with the reader:
l pairing reader and base station
l non-wireless communication
l charging
3 RS-232
4 USB
5 Power plug (24V, max. 15W)
6
Alternative power supply connector (24V, max. 15W, polarity marked on
the plastic part near the connector)
Recommended wire diameter is 14-18 AWG
7 Ethernet
Base station status indicators:
l Power: RED = base powered / BLINK = wrong reader in base
l Communication: BLUE = Wireless link / BLINK = Wireless communication
l Cradle connections: GREEN = reader properly inserted / BLINK = cradle USB interface communication
Note:
l DMA-IBASE-BT-01 does not support Ethernet
l DMA-IBASE-BT-02 does support Ethernet
10
