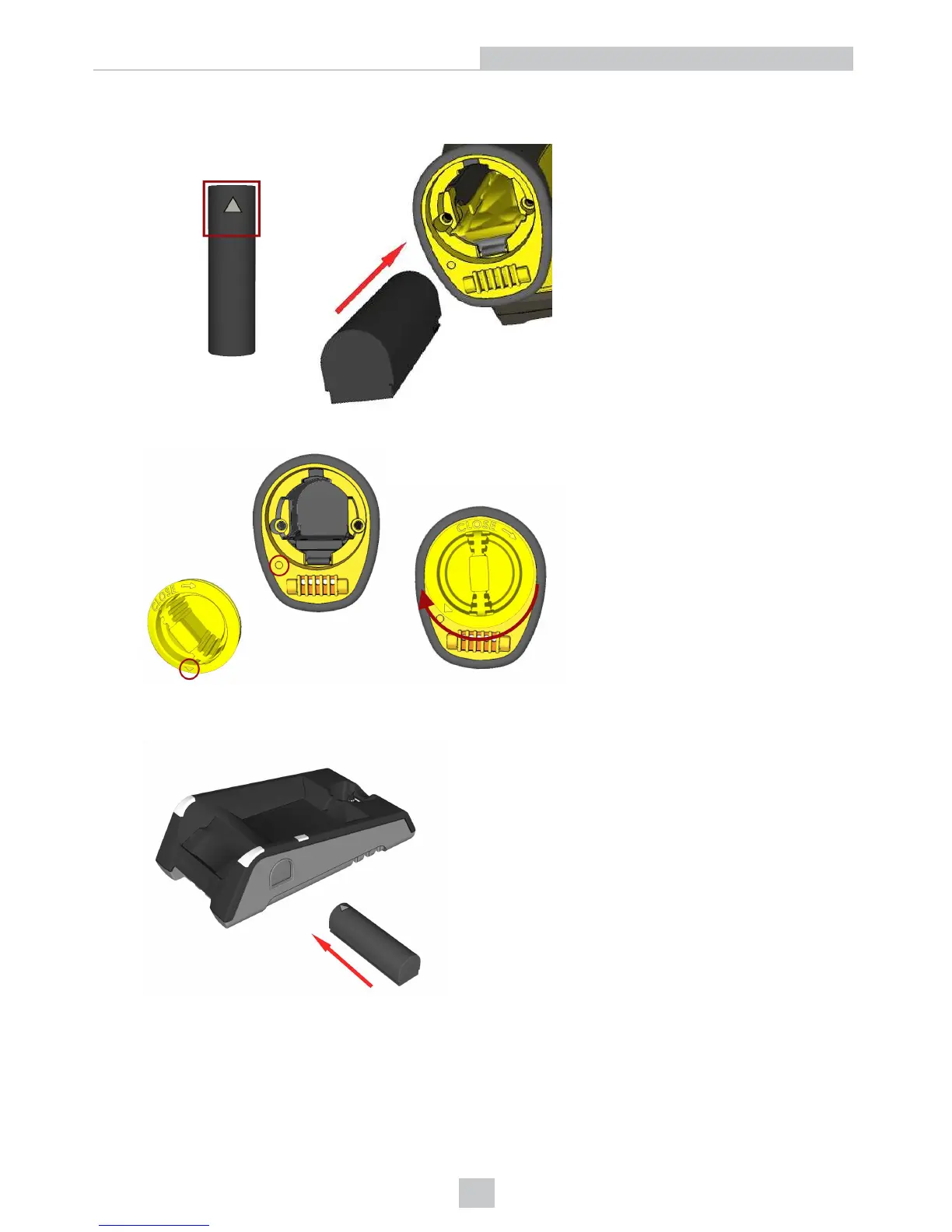

3. Put the replacement battery into the slot. The battery has a small triangle on one side. Make sure that you insert
the battery in a way that the triangle end goes into the slot first.
4. Put the end cap back on and twist it. Make sure that the triangle aligns with the circle when the cover is locked.
5. If using DMA-CBASE-01, place the battery in the spare battery charger in the direction of the small triangle of the
battery.
