Chapter 3 Using the Front Panel Connections
© 2010 Colby Instruments. PDL-100A Operating and Programming Manual Page 7
Using the Front Panel Connections______
3.0.1 Overview of the Front Panel Connections

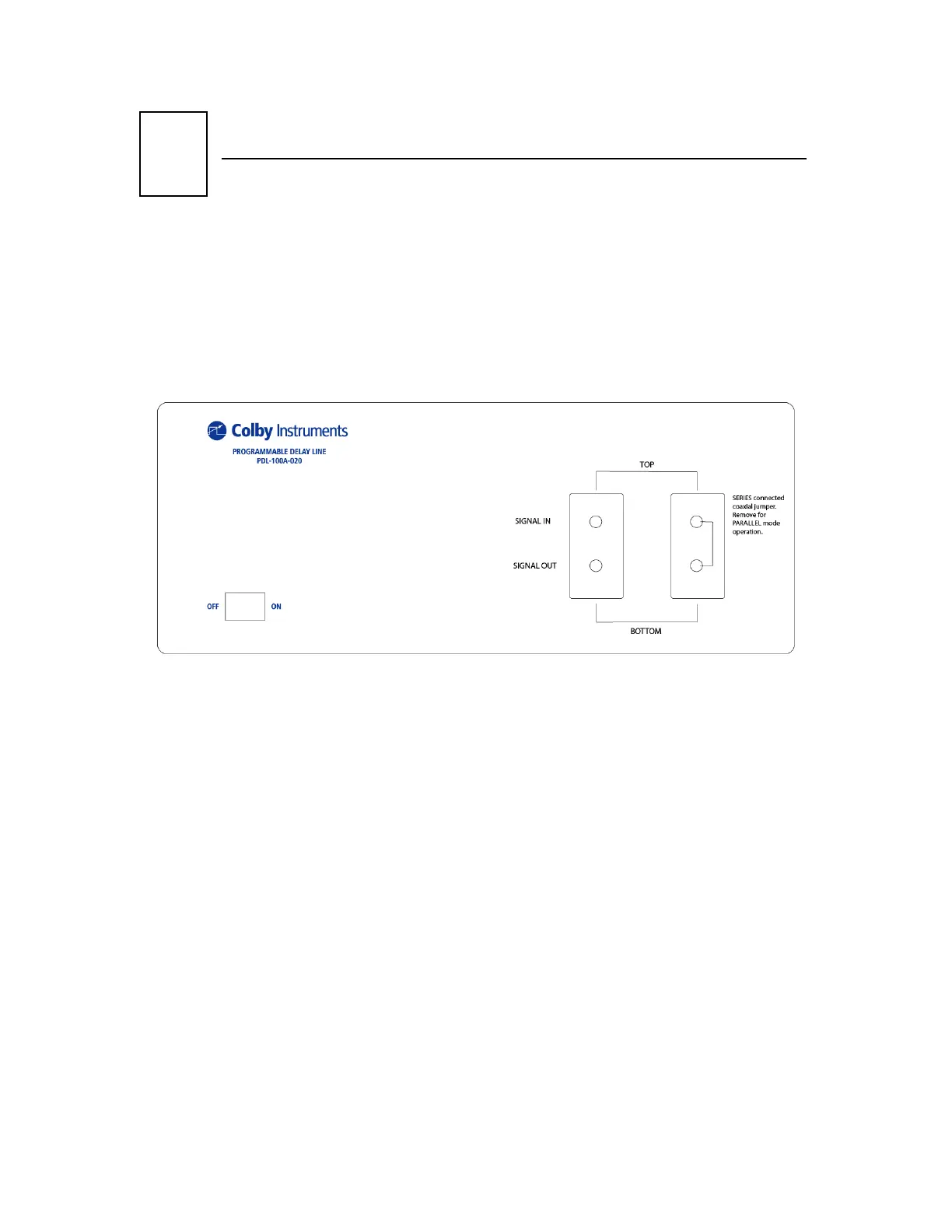

The electromechanical trombone unit, situated on the instrument’s right side, has
four connectors. In the illustration below a short semi-rigid coaxial cable
(supplied with each PDL-100A unit) connects the two identical 312.50
picosecond (ps) delay sections in series for the full delay range up to 625 ps for a
PDL-100A-000.
Model PDL-100A-625ps SERIES CONNECTED
0 to 625 ps delay from SIGNAL IN to SIGNAL OUT
3.0
