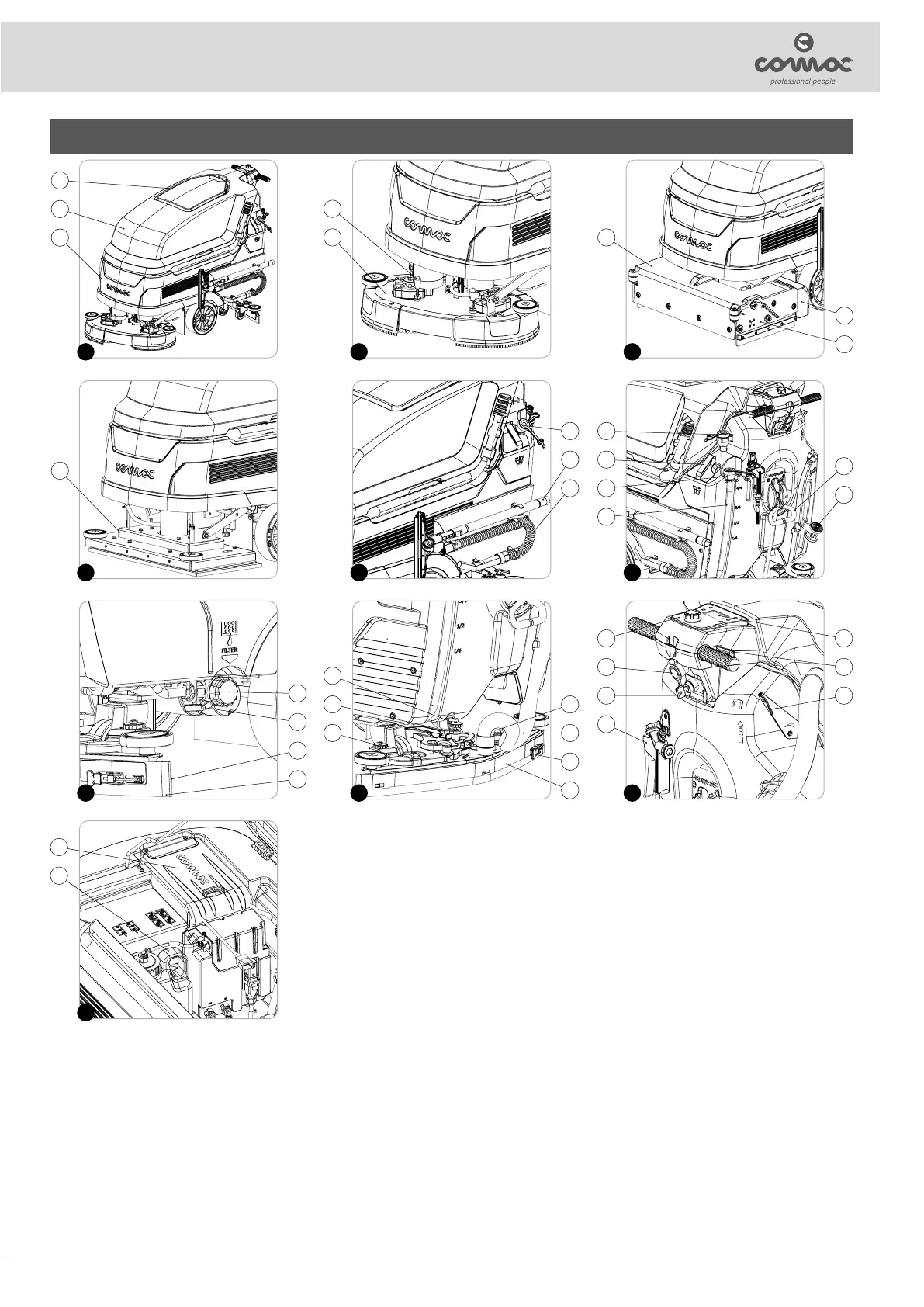

LOCATING THE MAIN MACHINE COMPONENTS
The machine's main components are the following:
1. Recovery tank cover (Fig.1).
2. Recover tank (Fig.1).
3. Solution tank (Fig.1).
4. Locking pin for the brush holder rotation plate (Fig.2).
5. Scrubbing version brush head (Fig.2).
6. Sweeping version brush head (Fig.3).
7. Debris hopper (Fig.4).
8. Front brush cover carter (Fig.3).
9. Orbital version brush head (Fig.4).
10. Recovery tank outlet pipe (Fig.5).
11. Liquid vacuum wand kit extension tube, SST version (Fig.5).
12. Liquid vacuum wand kit vacuum tube, SST version (Fig.5).
13. Solution tank quick lling tube (Fig.6).
14. Solution tank ller cap/measuring device inlet (Fig.6).
15. Solution tank level indicator tube (Fig.6).
16. Solution tank level indicator ball (Fig.6).
17. Squeegee control lever (Fig.6).
18. Brush head control pedal, versions without PM (Fig.6).
19. Detergent solution lter (Fig.7).
20. Traction motor electric brake control lever (Fig.7).
21. Squeegee body front rubber blade (Fig.7).
22. Squeegee body rear rubber blade (Fig.7).
23. Squeegee body tilt adjustment lever stop knob (Fig.8).
24. Squeegee body tilt adjustment lever (Fig.8).
25. Squeegee body height adjustment lever (Fig.8).
26. Squeegee body xing knob (Fig.8).
27. Lower squeegee body xing knob (Fig.8).
28. Rear rubber blade xing blade uncoupling lever (Fig.8).
29. Rear rubber blade xing blade (Fig.8).
30. Control panel (Fig.9).
31. Emergency button (Fig.9).
32. Key-operated main switch (Fig.9).
33. Tank cleaning gun kit, SST version (Fig.9).
34. Control display (Fig.9).
35. Dead man's lever (Fig.9).
36. Detergent solution tap control lever (Fig.9).
37. On-board battery charger, CB versions (Fig.10).
38. Chemical product tank, CDS versions (Fig.10).
5
1
4
7
10
2
5
8
3
6
9
3
2
1
9
19
37
21
28
32 36
27
31 35
26
30 34
24
25
23
20
38
22
29
33
11 14
10 13
12 15
17
16
18
5 6
4
8
7
