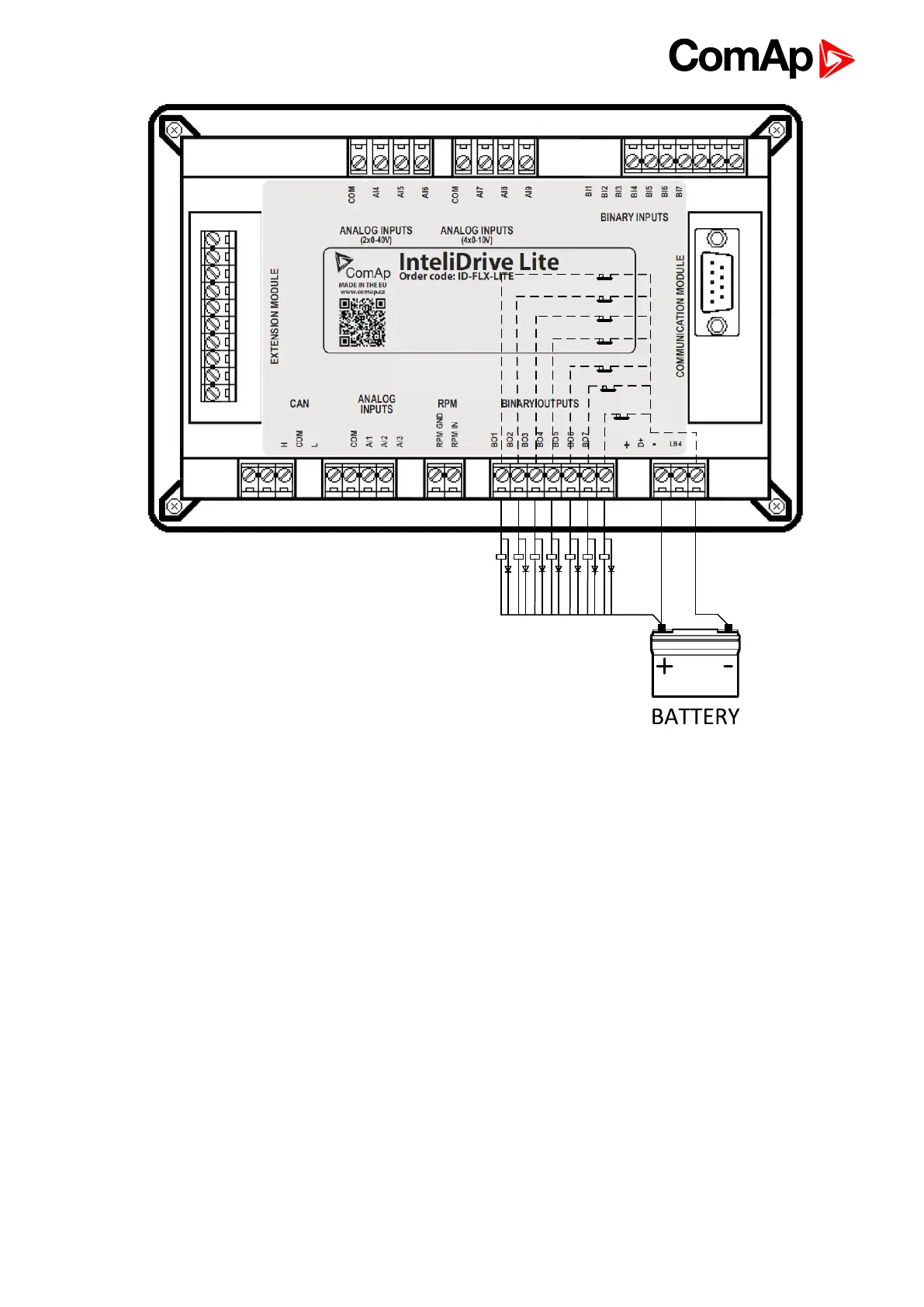

5.3 Analog outputs
First option is extension plug-in card IL-NT AOUT8. This card provides eight Pulse-With-Modulation (PWM)
outputs. These are intended to drive VDO style analog gauges. This is to provide visual indication of typically
ECU values without installing additional sensors on the engine. PWM signal emulates sensor which would be
typically mounted on the engine.
Second option is extension plug-in card IL-NT AIO. This card provides one current or voltage or PWM output.
Any value from controller may be configured to the outputs. Use LiteEdit PC tool to configure corresponding
sensor/gauge curve and value selection.
